Configuration (continued)
3. Time Gain Compensation (TGC) Control (see
‘Configuration’ on page 4-3) - Tap the ON/OFF toggle sw
itch
to tur
n ON or OFF TGC controls. When TGC is ON, yo
u can
ad
just the black and white image via the TGC controls on
the scan screen.
NOTE: For adjustment up to 6 TGC controls are available in por
trait
and landscape layouts.
NOTE: The active gain control is disabled as long as the TG
C
con
trols are active.
4. Cardiac Flip L/R (see ‘Configuration’ on page 4-3)-
Setting the Cardiac Flip L/R option true, will
flip the cardiac
ima
ge and orientation marker horizontally to right an
d vice
vers
a.
•
Flip Left Right option is available for all the presets and
it will have impact only when Cardiac preset is select
ed.
Th
e default value of this configuration is false which
means it is flipped left.

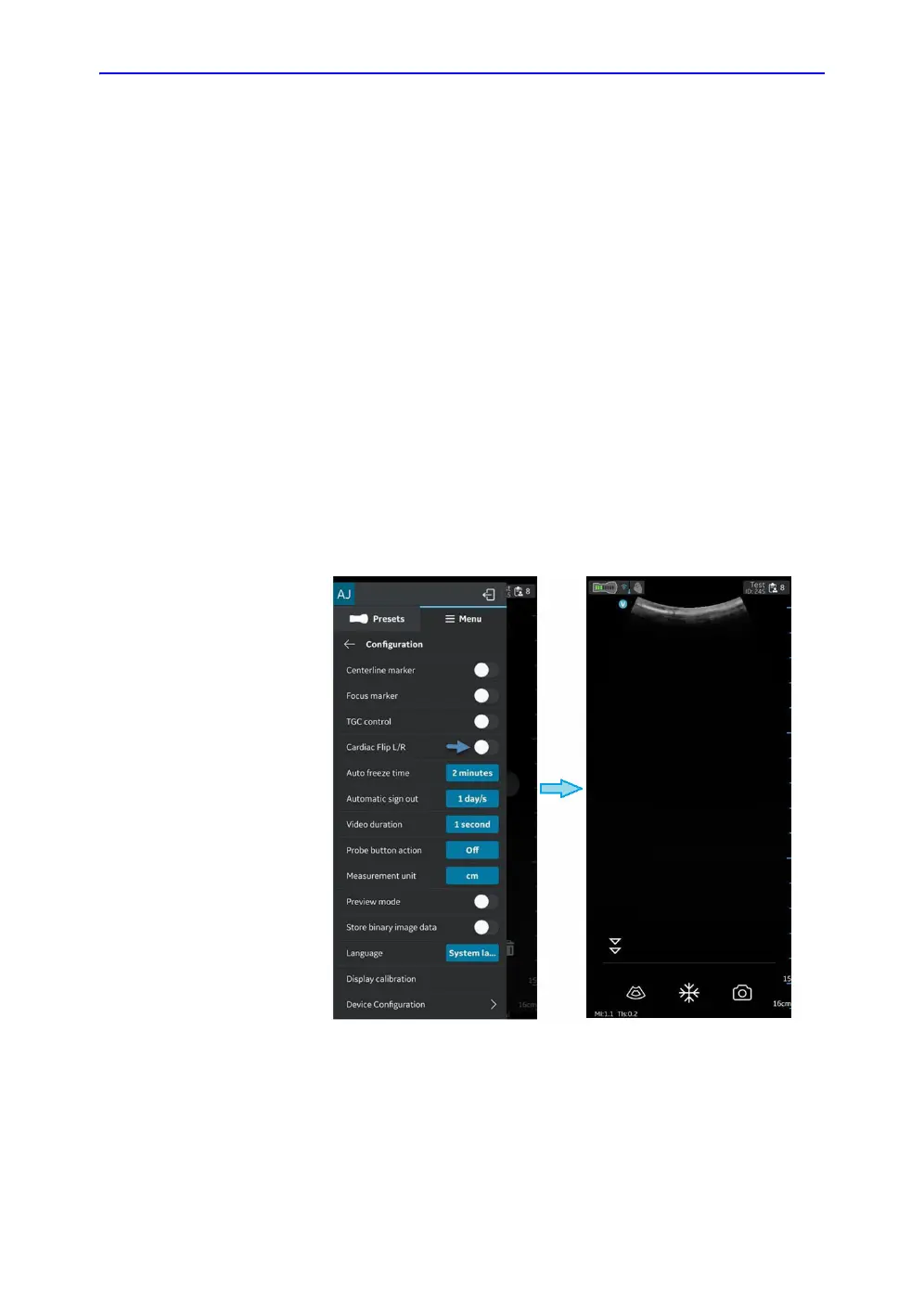

Figure 4-4. CLA-Cardiac (no flip)
