GE WavePro LVPCB User Manual

29

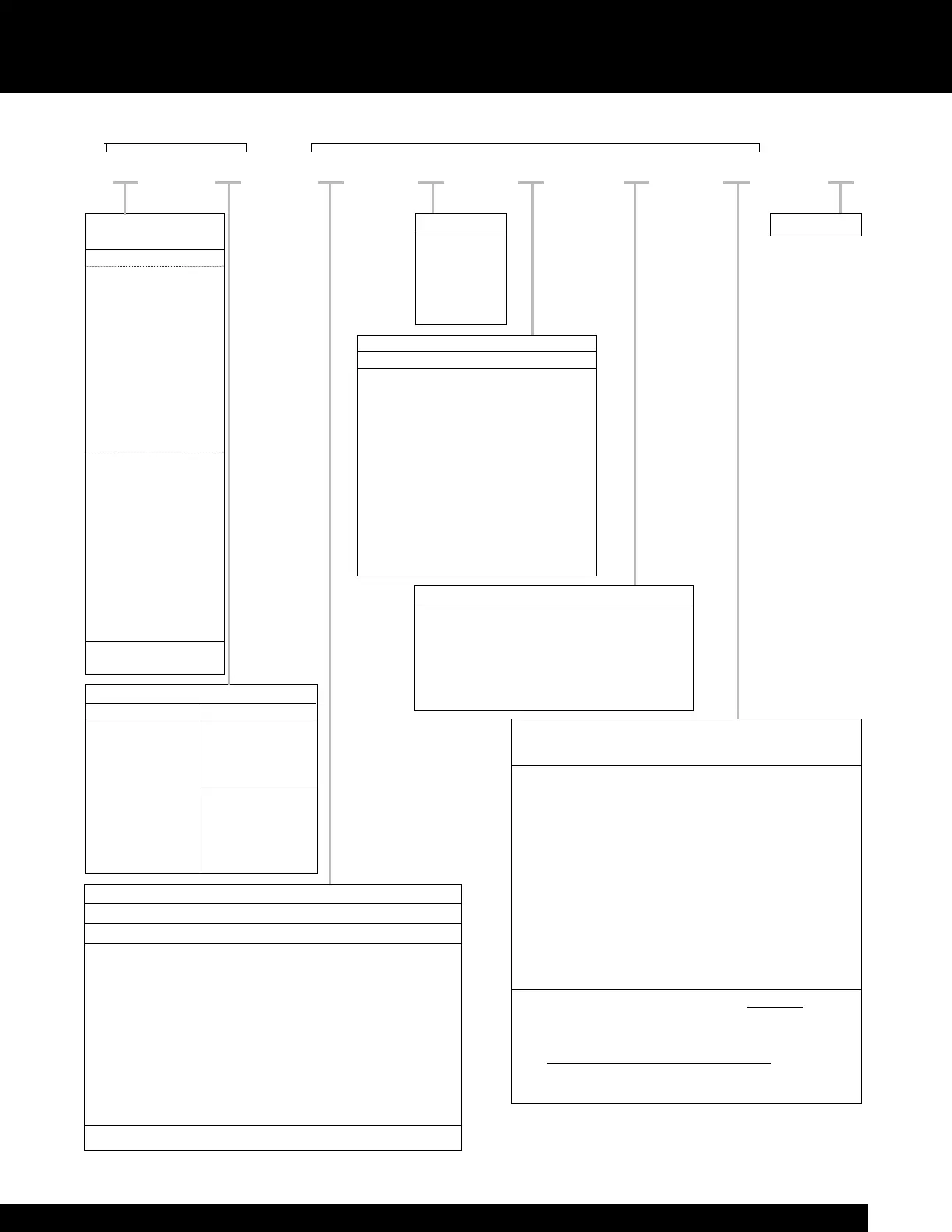

WavePro™ Breaker Catalog Number Guide (cont.)
F1XBBXQX
8 9 10 11 12 13 14 15
Hidden
“A - Disc” Close PB Operation Remote Charge
(See Note 3 Below) (E/O only) Counter Indicator Code
No No No No X
No No No Yes A
No No Yes No B
No No Yes Yes C
No Yes No No D
No Yes No Yes E
No Yes Yes No F
No Yes Yes Yes G
Yes No No No H
Yes No No Yes J
Yes No Yes No K
Yes No Yes Yes L
Note 3: ”A-Disconnect” (A-Disc) — the 36 point A-Disc is automatically supplied
whenever any of the following accessories/features are ordered: zone selective
interlock, shunt trip, auxiliary switch, bell alarm, undervoltage, electric lockout,
E/O, MVT PM. Select the A-Disc if 4-wire GF is required or if a breaker is to be "PM
Ready" and none of the above accessories/featur
es are ordered. "PM Ready"
wiring includes inputs for 24vDC auxiliary power, communications, and 3
phase voltage.
Operation
Charge & Close Code
manual X
manual with remote
close
①
Close voltage
120v-60Hz 1
240v-60Hz 3
120v-50Hz 4
240v-50Hz 6
48v -DC A
110v-DC B
125v-DC C
250v-DC D
electrical
①
Charge / Close
48v-DC E
120v-60Hz F
120v-50Hz H
120v-50
/
60/48v-DC N
110v-DC P
125v-DC Q
250v-DC R
240v-60Hz T
240v-50Hz W
①
( Requires min 4 stage auxiliary
switch and shunt trip)
Shunt Trip-1
Code
none X
120VAC, 60Hz
①
1
208VAC, 60Hz 2
240VAC, 60Hz
①
3
70VAC, 60Hz 4
120VAC, 50Hz 5
208VAC, 50Hz 6
240VAC, 50Hz 7
Code
24VDC
①
B
48VDC D
110 / 125VDC
①
E
250VDC
①
F
①
Coil ratings available
for Shunt Trip-1 or
Shunt Trip-2. All other
ratings apply to Shunt
Trip-1 only.
Undervoltage (UV) or Electric Lockout (ELO) (See Note 2 Below)
Code
UV UV w/TD ELO
none X X X
120V-50/60Hz 1 4
208V-50/60Hz 3 (TAKYUVT-5)
240V-50/60Hz 2 3 (TAKYUVT-4) 5
24VDC A G
48VDC B H
110VDC C J
125VDC C E (TAKYUVT-1) J
250VDC D F (TAKYUVT-2) K
Note 2: Order Static Time Delay Unit (TAKYUVT-1,2,4,5) separately
Accessory Code
none X
Aux switch
4 stages A
Aux switch
7 stages B
Accessory Accessory Code
Bell Alarm Push Button Cover
no no X
yes no A
yes, with lockout no B
no CLOSE pb C
yes CLOSE pb D
yes, with lockout CLOSE pb E
no OPEN pb F
yes OPEN pb G
yes, with lockout OPEN pb H
no CLOSE & OPEN pb J
yes CLOSE & OPEN pb K
yes, with lockout CLOSE & OPEN pb L
Future use
Breaker Operation
& Control Voltages Breaker Mounted Accessories
(Requires 4 or 7 stage aux. switch)
Accessory Code
none X
Shunt Trip-2 n (See “Shunt Trip-1”
(Requires 7 stage aux. switch) codes—only those
(Cannot be used with UV) marked
①
are
available for 2nd
shunt trip)
