3
Basic Configurations & Ratings
WPS — Standard IC
WPH — High IC
WPX — Extended IC
WPF — Integrally fused (200kA IC)

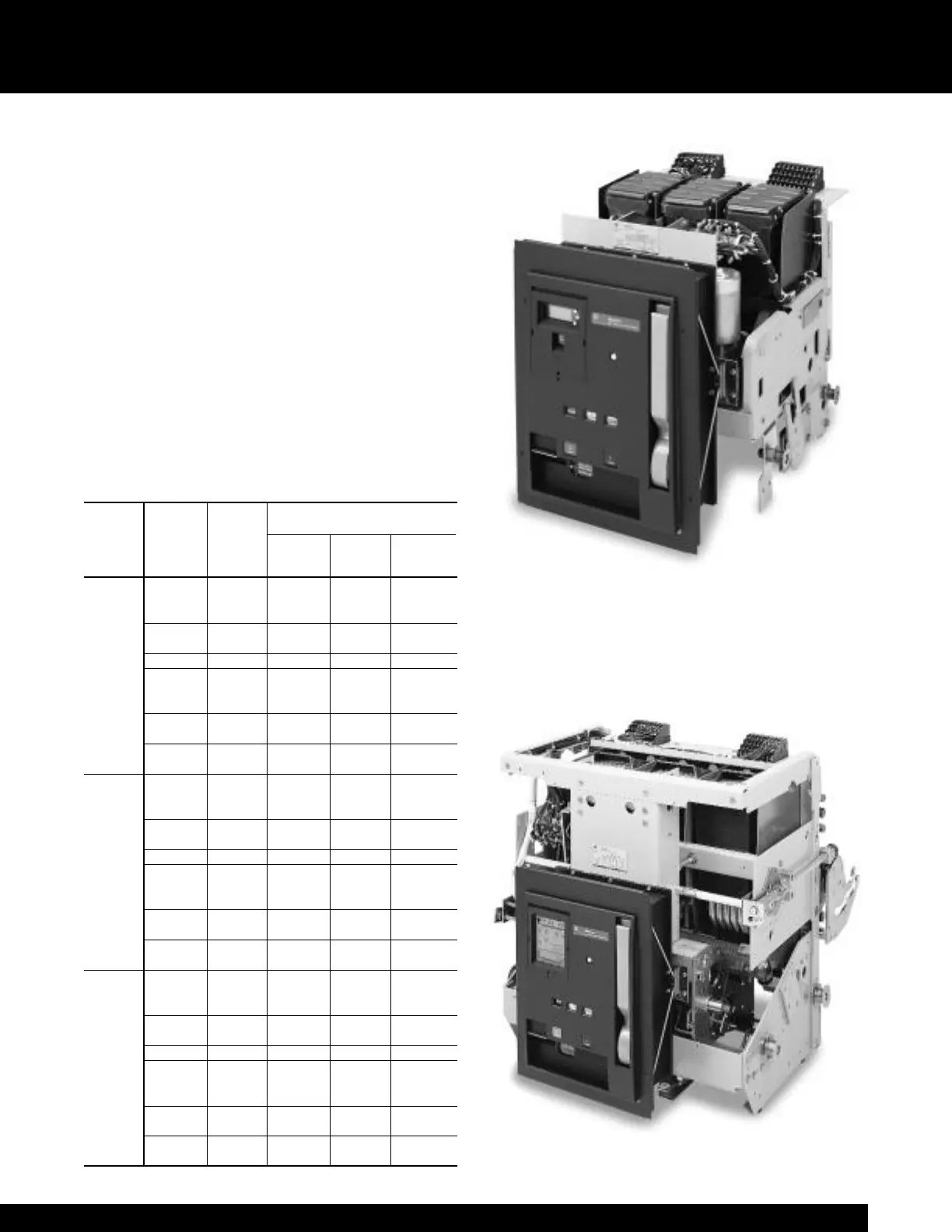

WavePro 800-2000A Frame
WavePro 3200-4000A Frame
Short-Circuit Ratings
Rated AC
RMS Symmetrical kA
Voltage, Frame With Without
Nominal Breaker Size Short-Time
Instantaneous Instantaneous
(max) Type (amps) Withstand Trip Trip
WPS-08 800 30 30 30
WPH-08 800 42 42 42
WPX-08 800 50 50 50
600
WPS-16 1600 42 42 42
WPH-16 1600 65 65 65
(635) WPS-20 2000 65 65 65
WPS-32 3200 65 65 65
WPH-32 3200 85 85 85
WPX-32 3200 85 85 85
WPS-40 4000 85 85 85
WPX-40 4000 85 85 85
WPS-50 5000 85 85 85
WPX-50 5000 85 85 85
WPS-08 800 30 30 30
WPH-08 800 42 42 42
WPX-08 800 65 65 65
480 WPS-16 1600 50 50 50
WPH-16 1600 65 65 65
(508) WPS-20 2000 65 65 65
WPS-32 3200 65 65 65
WPH-32 3200 85 85 85
WPX-32 3200 100 100 100
WPS-40 4000 85 85 85
WPX-40 4000 100 100 100
WPS-50 5000 85 85 85
WPX-50 5000 100 100 100
WPS-08 800 30 42 30
WPH-08 800 42 50 42
WPX-08 800 65 65 65
240 WPS-16 1600 50 65 50
WPH-16 1600 65 65 65
(254) WPS-20 2000 65 65 65
WPS-32 3200 65 85 65
WPH-32 3200 85 130 85
WPX-32 3200 100 130 100
WPS-40 4000 85 130 85
WPX-40 4000 100 130 100
WPS-50 5000 85 130 85
WPX-50 5000 100 130 100
Basic Configurations
WavePro™ low voltage power circuit breakers are available
in various levels of interrupting capacity (IC) and are
identified with a suffix in the model number. WPS indicates
“standard IC”, WPH indicates “high IC”, WPX indicates
“extended IC” and WPF indicates “integrally fused”.
High IC and extended IC breakers are used with larger
kVA substation transformers as well as in parallelling appli-
cations. Fused circuit breakers take the IC rating to 200kA
rms symmetrical for the highest short circuit applications.
Refer to Table 3.1 for the interrupting capacity (IC) of
WavePro breakers at system operating voltages.
Refer to Table 32.2 for available fuse ratings.
Table 3.1 WavePro Breaker Interrupting Ratings
