33
3. Release the tab on each side of the motor and pull
back to remove the armature.
4. Remove (4) screws to release the pump from the
housing.
Removing the top panel:
1. Disconnect the washer from the electrical supply.

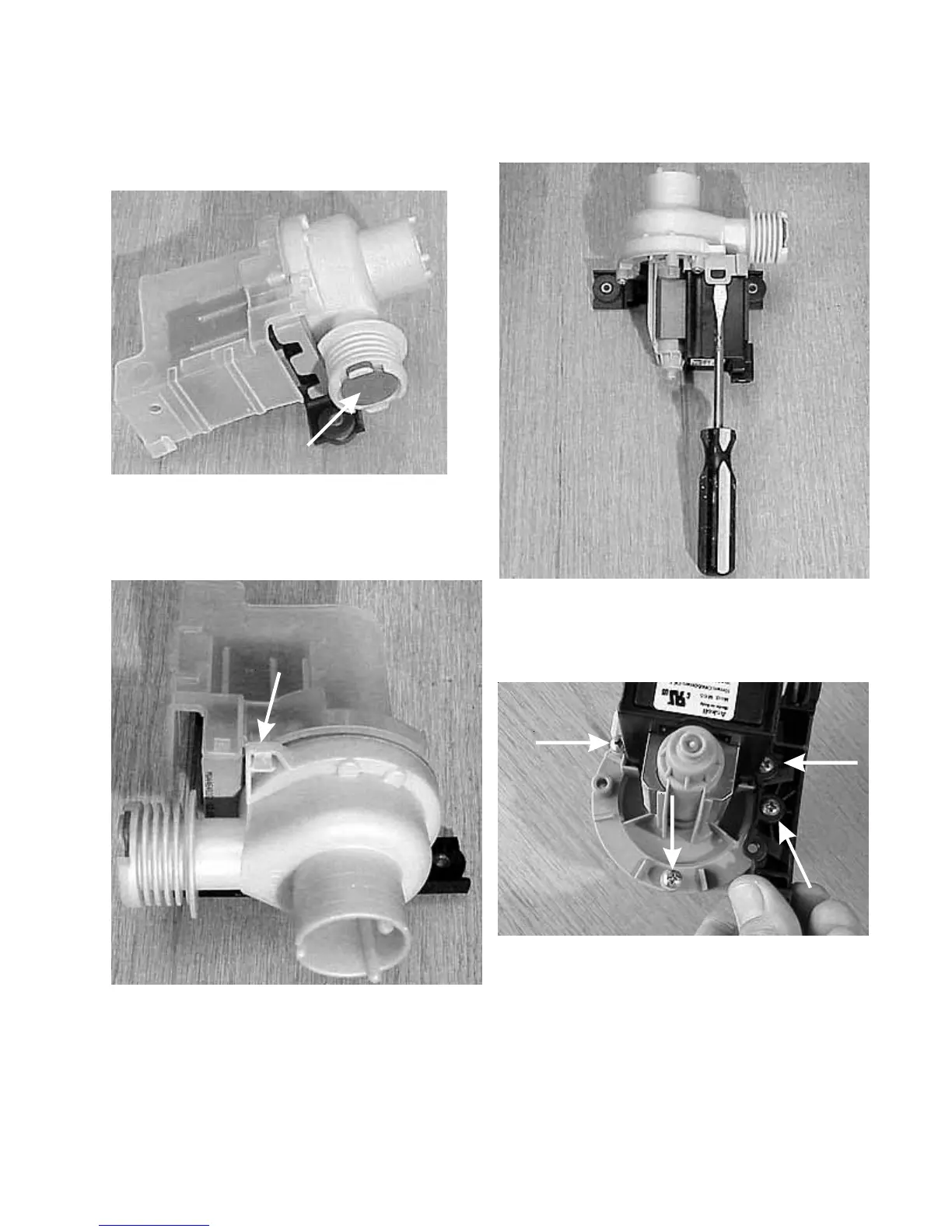

Disassembling the drain pump:
1. The drain pump check valve is located in the outlet
of the pump.
2. Remove the shield by releasing the tab and pulling
back on the shield.
