46

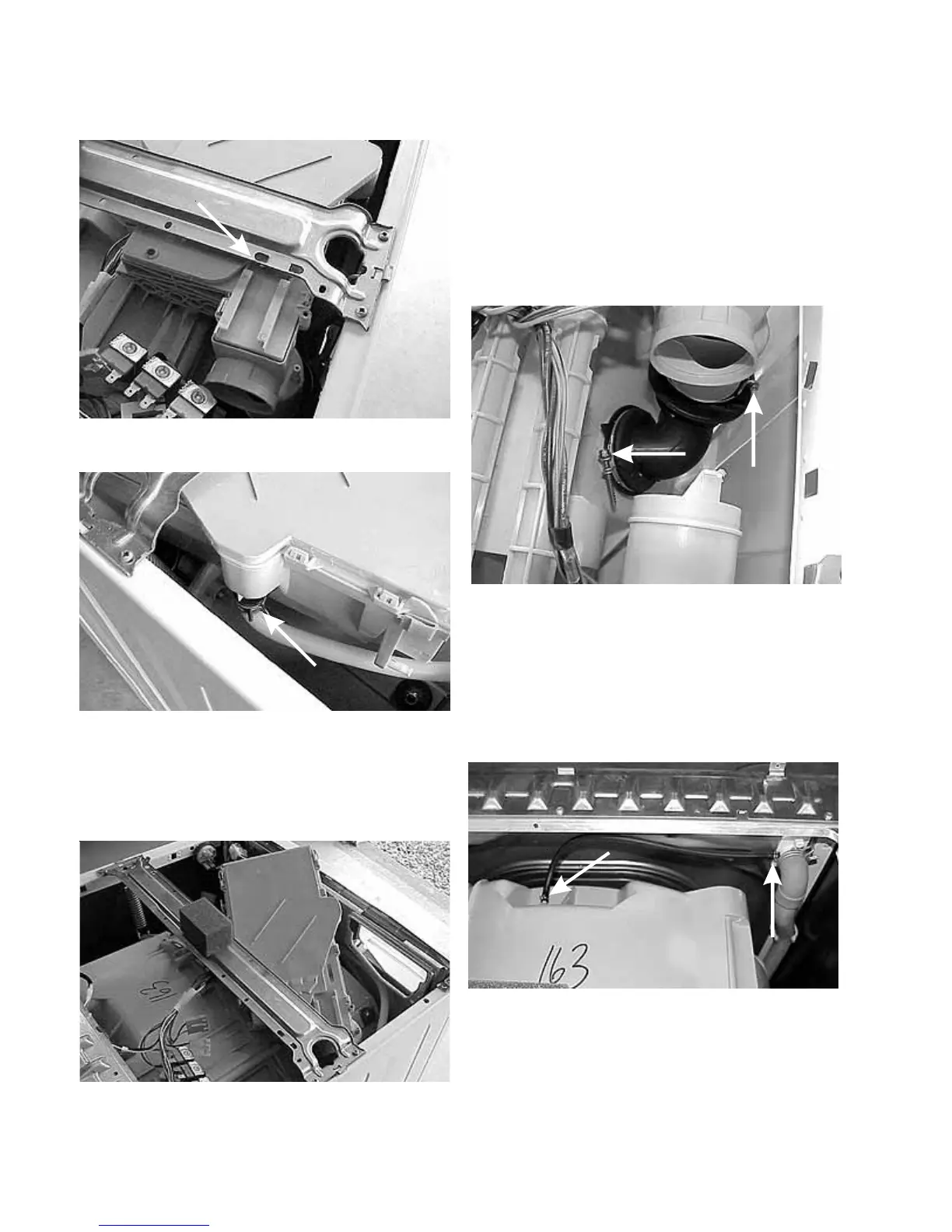

8. Slide the housing back until the tabs of the center
cross bar release and the housing drops down.
9. Disconnect the hose.
10. Push down on the tub and swing the front of the
housing toward the center of the washer. Work
the housing out from under the center brace and
lift the housing out.
Removing the detergent dispenser outlet
hose:
1. Disconnect the washer from the electrical supply
and remove the top panel.
2. Release the overflow/vent tube and slide it back.
3. Loosen the (2) clamps, one on each end, and slide
the hose off.
Removing the siphon break hose:
1. Disconnect the washer from the electrical supply
and remove the top panel.
2. Release the (2) clamps, one on each end, and slide
the hose off.
Removing the drain sump:
1. Disconnect the washer from the electrical supply
and remove the front access panel.
