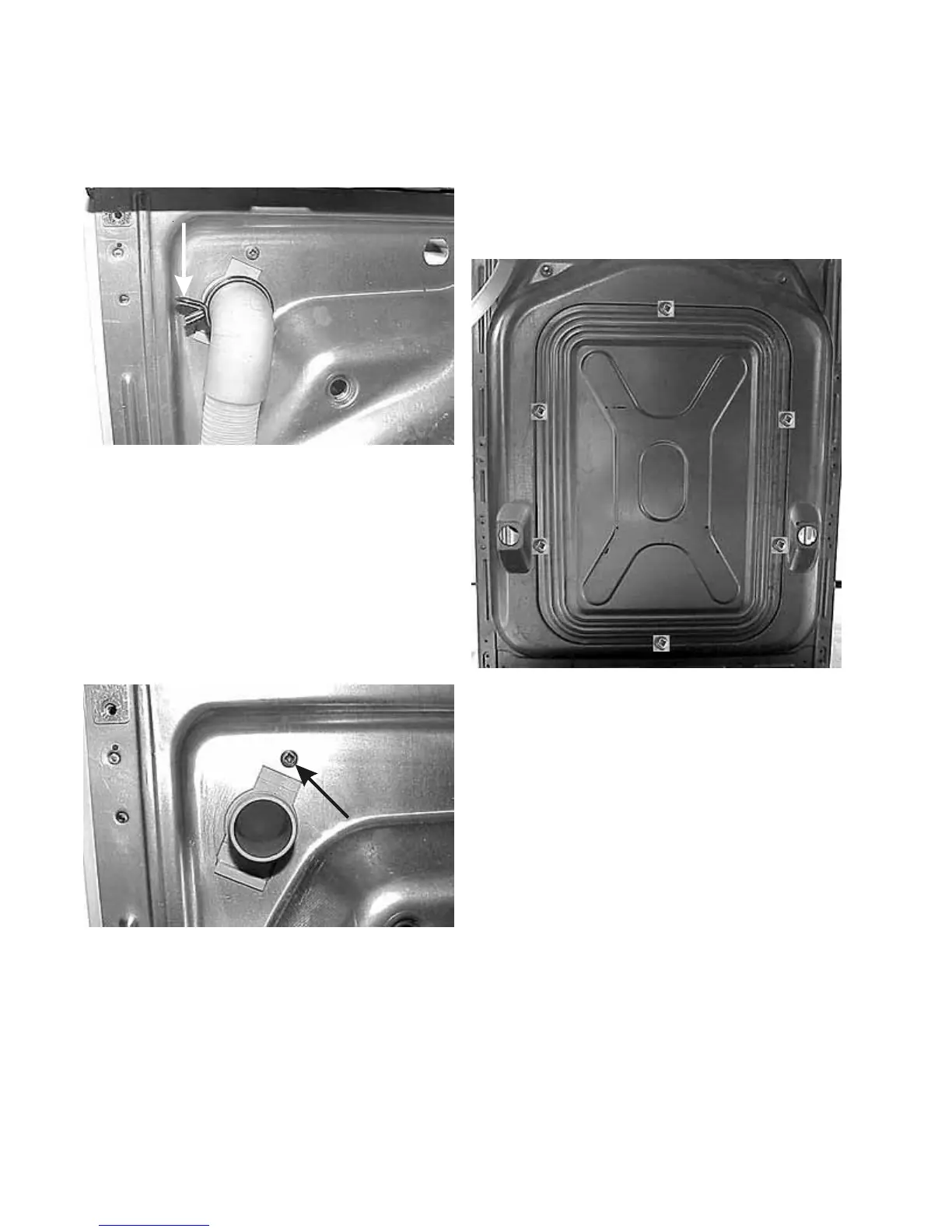

Removing the rear access panel:
1. Disconnect the washer from the electrical supply.
2. Remove the (6) screws holding the rear access
panel to the washer’s rear panel and lift the
access panel off.
Drive belt:
The drive belt (6 rib flat Poly-V) is used to transmit
power from the motor pulley to the tub. The belt is
constructed of a material that stretches which makes
belt tension adjustments unnecessary.
Removing or replacing the drive belt:
1. Disconnect the washer from the electrical supply
and remove the rear access panel.
2. Remove the belt by turning the tub drive pulley and
rolling the belt off the pulley. The belt is elastic and
is designed to "give" enough to remove and install
in this manner.
Removing the external drain hose:
1. Release the clamp and pull the hose off the
coupler.
Removing the drain hose coupler:
1. Disconnect the washer from the electrical supply
and remove the top panel.
2. Disconnect the (2) drain hoses and the siphon
break hose.
3. Remove the screw holding the coupler to the rear
panel.
