50

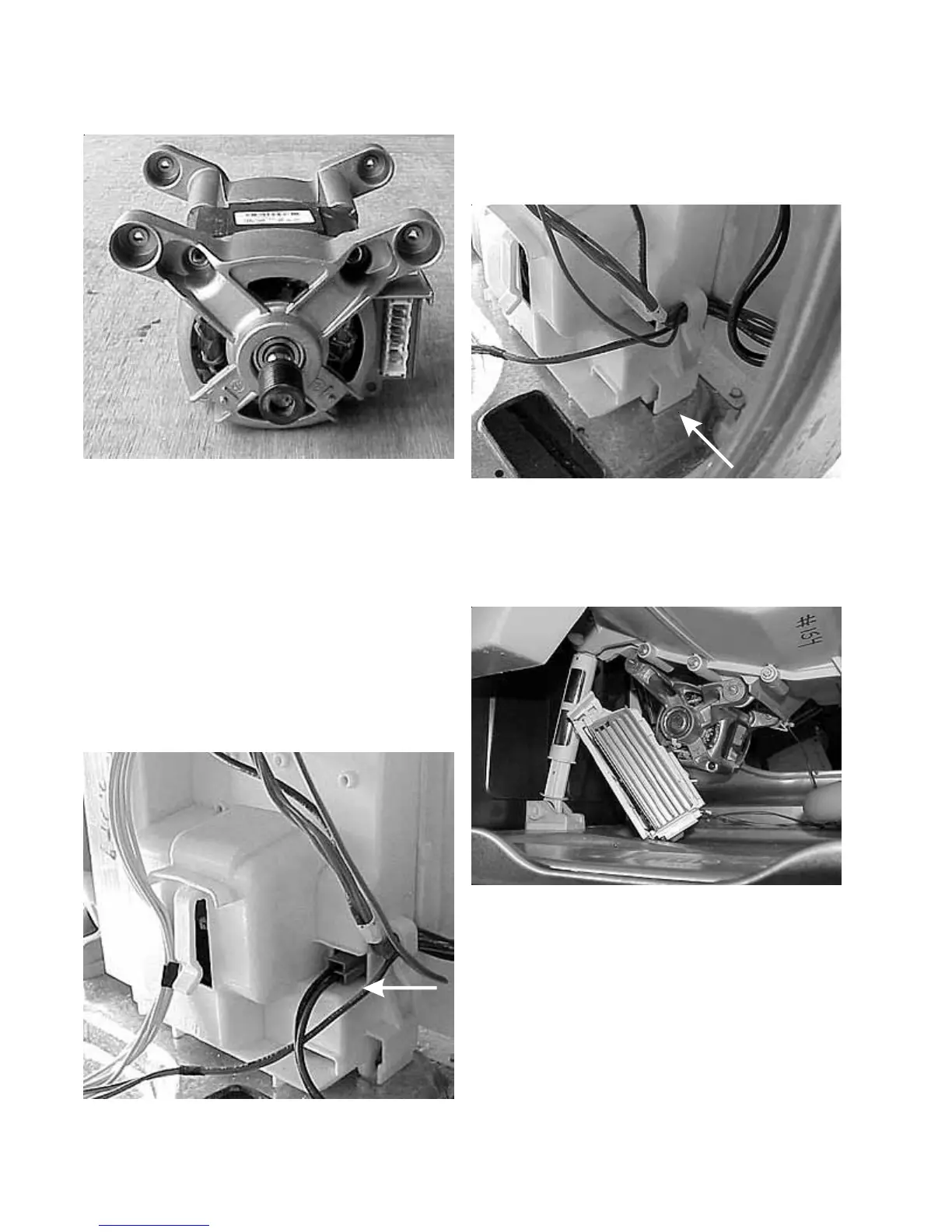

3. Disconnect the wire harness and release the spring
loaded locking tab on the side of the control board
house. Lift the side of the housing up, slide the
assembly to the rear to disengage the front tab and
lift the assembly away from the washer base.
4. From the front of the washer tip the bottom of the
assembly toward the motor and slide the
assembly out between the shock absorber and
the motor.
4. Slide the motor forward while supporting to remove.
5. Reverse procedure to reinstall, making sure that
belt tracks in the center of the large pulley. Adjust
by moving belt on motor pulley if required.
Removing the speed control board
assembly:
1. Disconnect the washer from the electrical supply
and remove the front and rear access panels.
2. Unplug the (2) terminal plugs from the lower front.
