GE WSSH300G

37

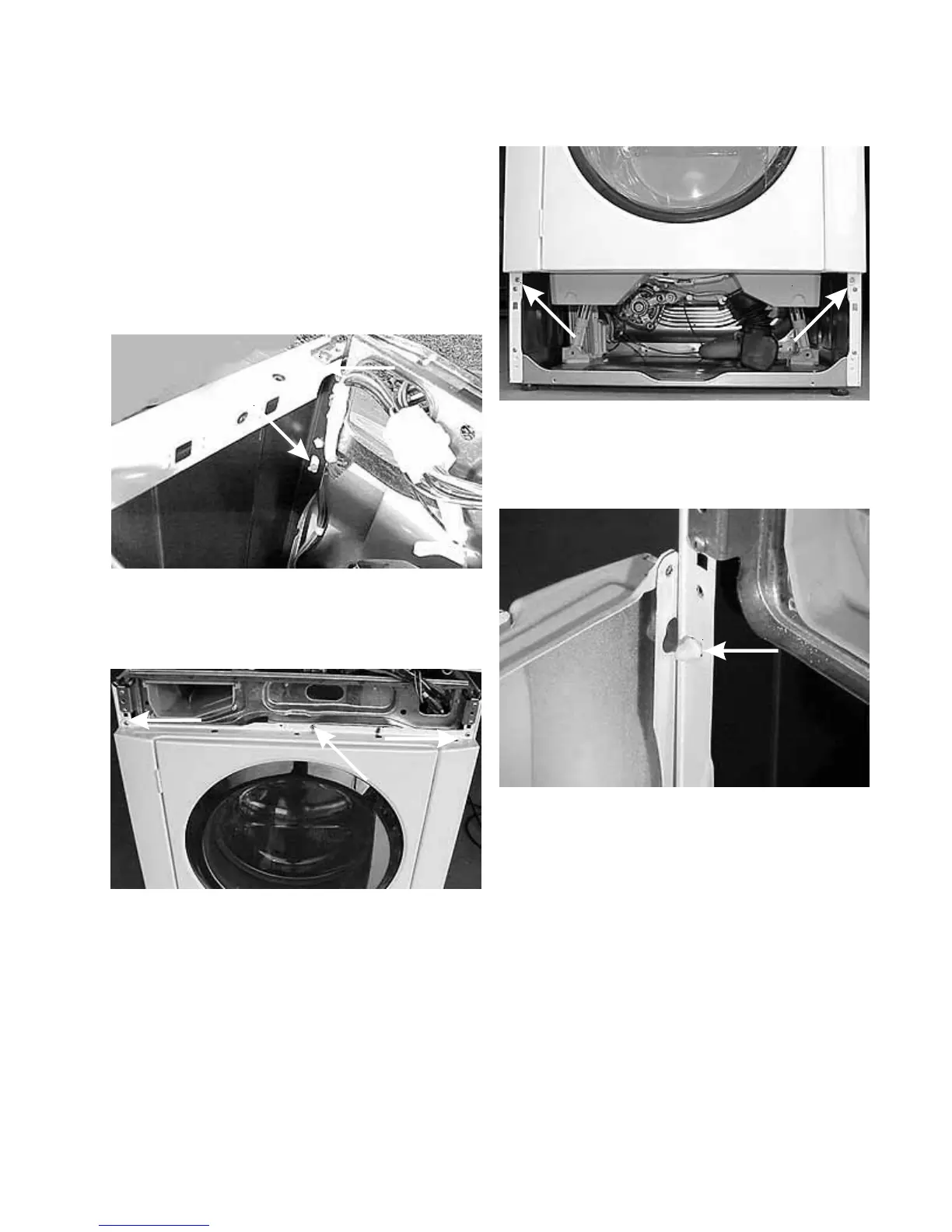

Removing the front panel:
1. Disconnect the washer from the electrical supply,
release the console and remove the front access
panel.
2. Release the bellows from the front panel and
remove the (2) screws holding the door safety
switch assembly to the front panel.
3 Release the plastic rivet wire tie holding the door
switch harness to the front panel.
4. Remove the (3) screws holding the front panel
to the front console mounting brace and side
panels.
.
5. Remove the (2) 5/16” hex head screws holding the
bottom of the front panel to the side panels.
6. Lift up on the front panel to disengage the (2)
pins (one in each side panel) the front panel
hooks over.
