54
12.

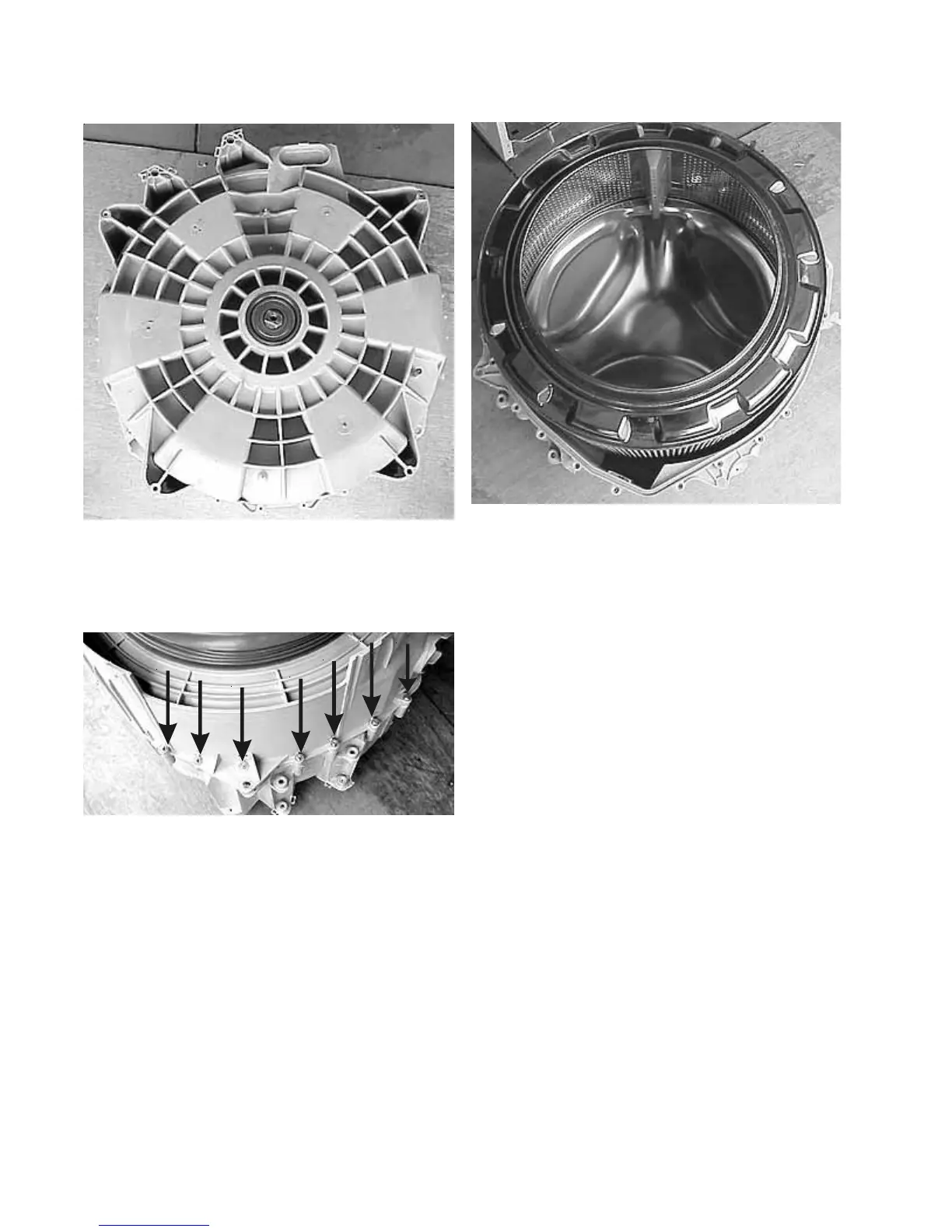

Turn the tub over and remove the (23) screws
holding the two halves of the tub together.
13.
Lift the front half of the tub off the assembly.
CAUTION:
Use caution in handling the spin
basket.
The
outer surface is very
sharp!
1
4
.
Reverse procedure to reassemble using
illustration below to show outer tub screw
tightening sequence.
53
55
Table of Contents
Safety Notice
2
Table of Contents
3
Quick Reference Sheet
5
Nomenclature Location
5
Mini-Manual Location
5
Component Resistance Chart
6
Water Fill Height
6
Electrical Requirements
6
Incoming Water Pressure
6
Drain Requirements
6
Motor
6
Diagnostic Test
7
Operation Speeds
8
Wiring Diagram
9
Operating Instructions
10
About the Washer Control Panel
10
About the Washer Features
11
Operation
12
Control
12
Dispenser Drawer Reed Switch
12
Door Switch Assembly
12
Pressure Switch
13
Water Inlet Valve Assembly
14
Valve Operation
14
Water Temperature
15
Automatic Dispenser
16
Drain Pump
20
Inverter
21
Motor
21
Construction
22
Cabinet
22
Front Panel and Door Assembly
22
Bellows
22
Outer Tub Assembly
22
Spin Basket Assembly
22
Troubleshooting
23
Failure Code Chart
24
Tests
25
Jacks and Plugs
27
Teardown
28
Removing the Detergent Drawer
28
Detergent Drawer Disassembly
28
Removing Door Strike
29
Removing the Loading Door Handle
29
Removing Loading Door
29
Disassembling the Door
30
Removing Door Hinges
30
Releasing the Bellows from the Front Panel
31
Removing the Door Safety Switch
31
Removing the Lower Front Access Panel
32
Removing the Drain Pump
32
Disassembling the Drain Pump
33
Removing the Top Panel
33
Removing the Pressure Switch
34
Releasing the Console
34
Removing the Water Temperature Selector Knob
35
Removing the Console
35
Removing the Electronic Control
36
Removing the Selector Knob
36
Removing the Water Temperature Selector Shaft
36
Removing the Programing Buttons and Springs
36
Removing the Front Panel
37
Removing the Console Mounting Brace
38
Removing the Bellows (Door Boot)
38
Reinstalling or Replacing the Bellows
39
Removing the Weight Ring
40
The Water Inlet and Overflow/Vent Tube Grommet
41
Removing the Water Inlet Grommet
41
Removing the Overflow/Vent Tube Grommet
41
Removing the Overflow/Vent Tube
42
Removing the Water Inlet Valve Assembly
42
Removing the Water Inlet Screens
43
Removing the Top Rear Brace
43
Removing the Suspension Springs
44
Removing the Top Center Brace
44
Removing the Detergent Cavity Assembly
45
Removing the Detergent Dispenser Outlet Hose
46
Removing the Siphon Break Hose
46
Removing the Drain Sump
46
Removing the Hose between the Drain Pump and the Drain Hose Coupler
47
Removing the External Drain Hose
48
Removing the Drain Hose Coupler
48
Removing the Rear Access Panel
48
Drive Belt
48
Removing or Replacing the Drive Belt
48
Removing the Large Pulley
49
Removing the Drive Motor
49
Removing the Speed Control Board Assembly
50
Removing the Right Hand Air Shock Absorber
51
Removing the Left Hand Air Shock Absorber
52
Removing the Air Bell
52
Removing the Tub Assembly
53
Spin Basket Vanes
55
Removing the Spin Basket Vanes
56
Consumer Error Code Chart
57
