4.1 General description
User interface
The user communicates with the PLC using the local control panel touchscreen on the
I/O Cabinet.
A home screen (start screen) gives a general overview of the software and is used as a
gateway to other screens. Tapping a button on the home screen opens the detail screen
for the corresponding process variable. The home screen also shows the current values
of the relevant process variables.

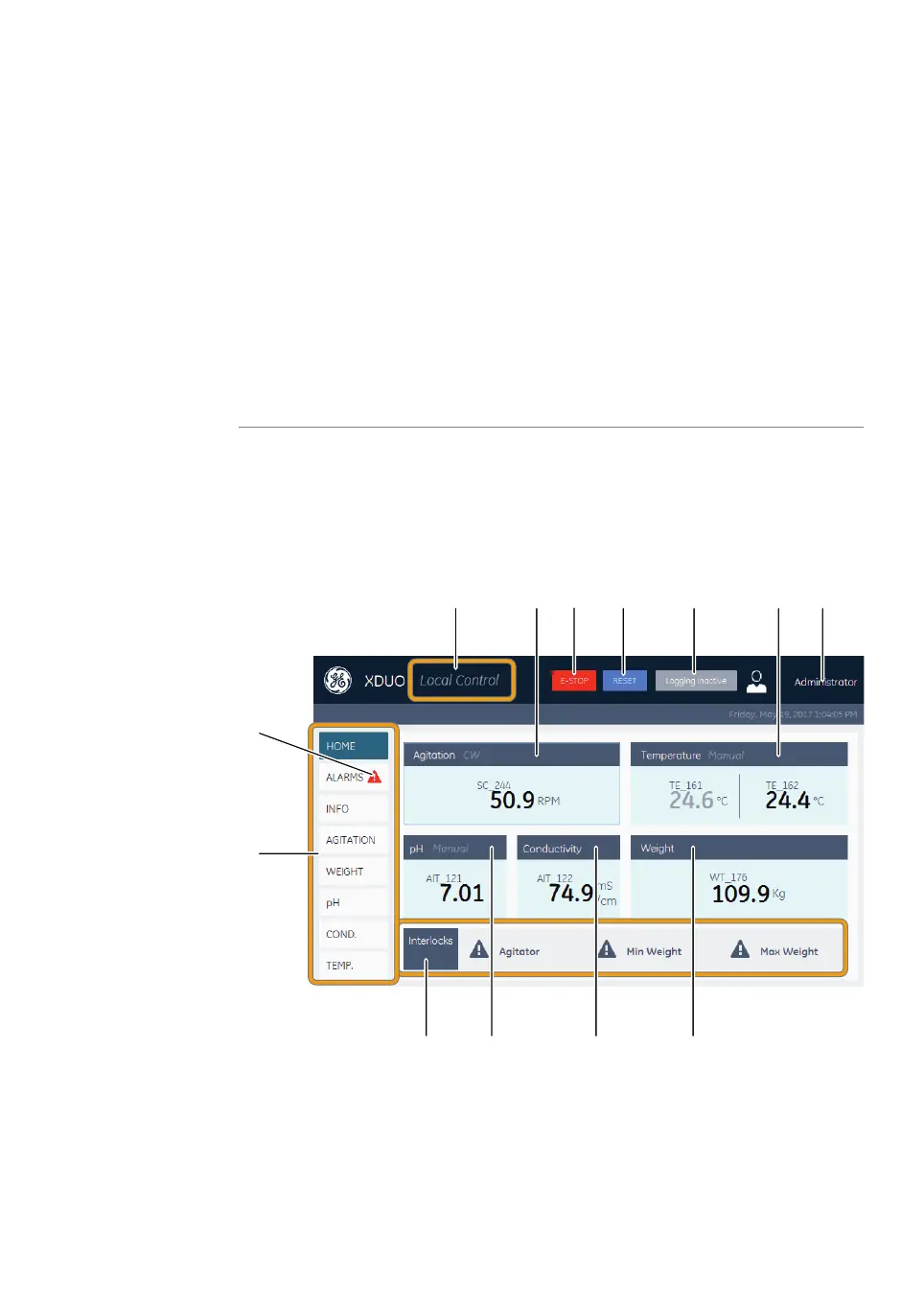

Home screen
The home screen is the default screen at XDUO mixer startup. The contents of the home
screen depend on the installed options. An example of the home screen is shown in the
following illustration.
1
3 4 7 8 9
10111213
5 6
2
Xcellerex XDM 50-1000, XDUO 100-1000 mixers Operating Instructions 29251615 AD 85
4 User interface
4.1 General description

GE Xcellerex XDM 200 Specifications

General

Model	Xcellerex XDM 200
Capacity/Nominal Volume	200 L
Volume Range	50-200 L
Mixing Speed	Variable
Vessel Material	Stainless steel
Single-Use Liner	Yes
Liner Material	Polyethylene
Material	Stainless steel and polyethylene
Sterilization	Gamma irradiation for single-use components
Control System	Integrated control system
Power Supply	Electrical
Type	Single-Use Mixer
