7.5.4 Labels of the pipelines
(information plate)
Pipelines in refrigeration plants must be labelled as
follows (DIN 2405):
–
Refrigerant
–
Direction of flow
–
State of phase

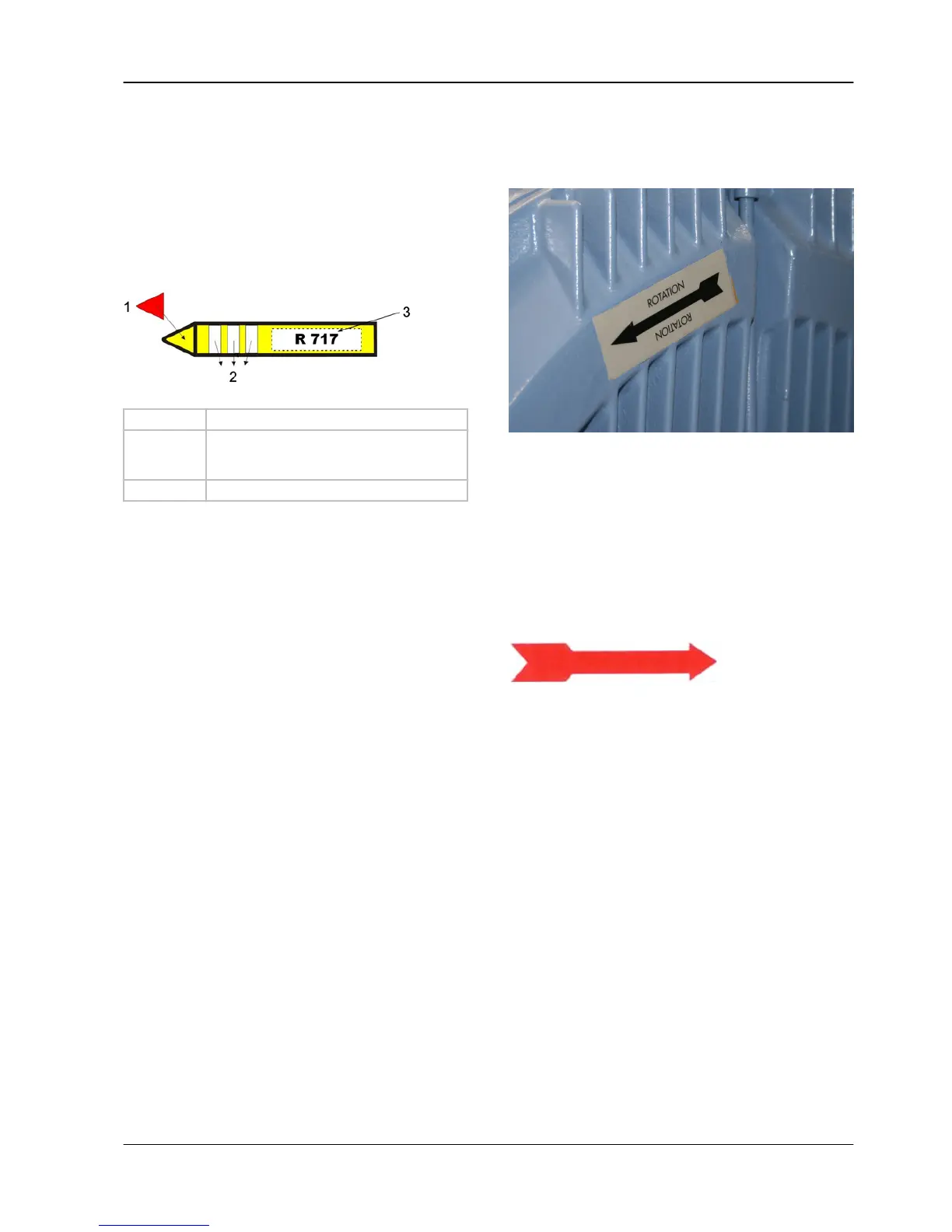

fig.11: Labels of the pipelines
1 Arrow head (indication of the direction of flow)
2 Horizontal stripe (indication of the state of
phase), green = liquid // blue = gaseous cold //
red = gaseous hot
3 Information field (label of the refrigerant)
7.5.5 Marking the direction of rotation
of the compressor drive motor
(information plate)
fig.12: Marking the direction of rotation of the compressor drive
motor
The direction of arrow indicates the direction of rota-
tion of the compressor drive motor
7.5.6
Marking the direction of rotation
of the oil pump motor
(information plate)
fig.13: Marking the direction of rotation of the oil pump motor
The direction of arrow indicates the direction of rota-
tion of the oil pump motor
