7.7 Main components
Screw compressor packages within the Grasso M-series series consist of the following main assemblies and
components:

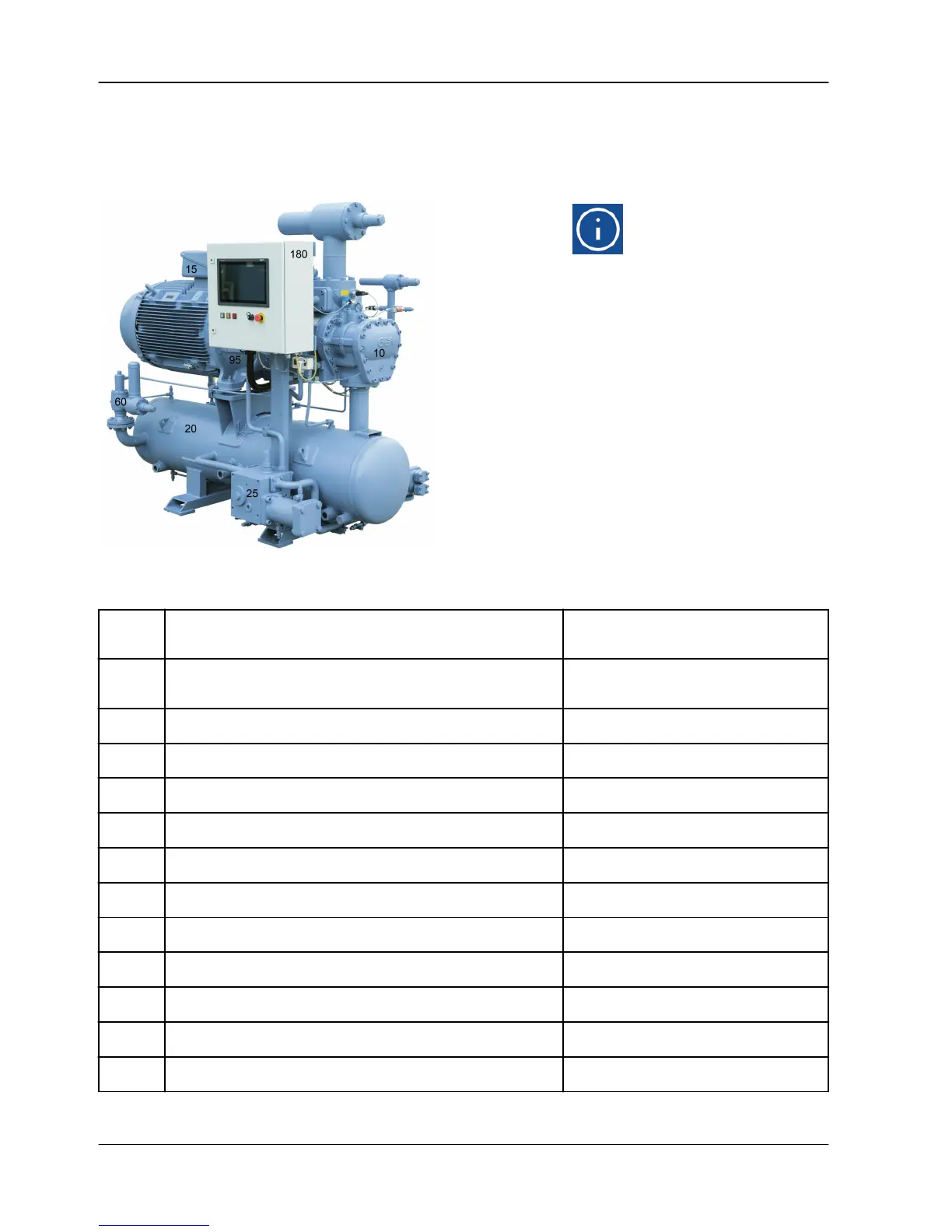

fig.18: Main components of the GEA Grasso M-Series
Hint!
The documentation of
the main components is
part of the product docu-
mentation (see product
description or operating
manuals of the supplier,
e.g. for the compressor
drive motor).
10 Screw compressor See installation instructions for the screw com-
pressor
15 Compressor drive motor See operating manual of the compressor drive
motor
20 Oil separator See component documentation
25 OMC block (possible as separate oil filter for greater amounts of oil) See component documentation
30 * Oil cooler See component documentation
40 * Oil pump (possible as an external oil pump for booster) See component documentation
45 ** Suction filter See component documentation
55 ** Check valve - suction side See component documentation
60 Check valve - pressure side See component documentation
95 Coupling housing See component documentation
180 Controller See control unit documentation
360 * Oil heater See component documentation
Safety devices See component documentation
