2| Product description
/
HG 7
2110-
4
X
Fig. 2

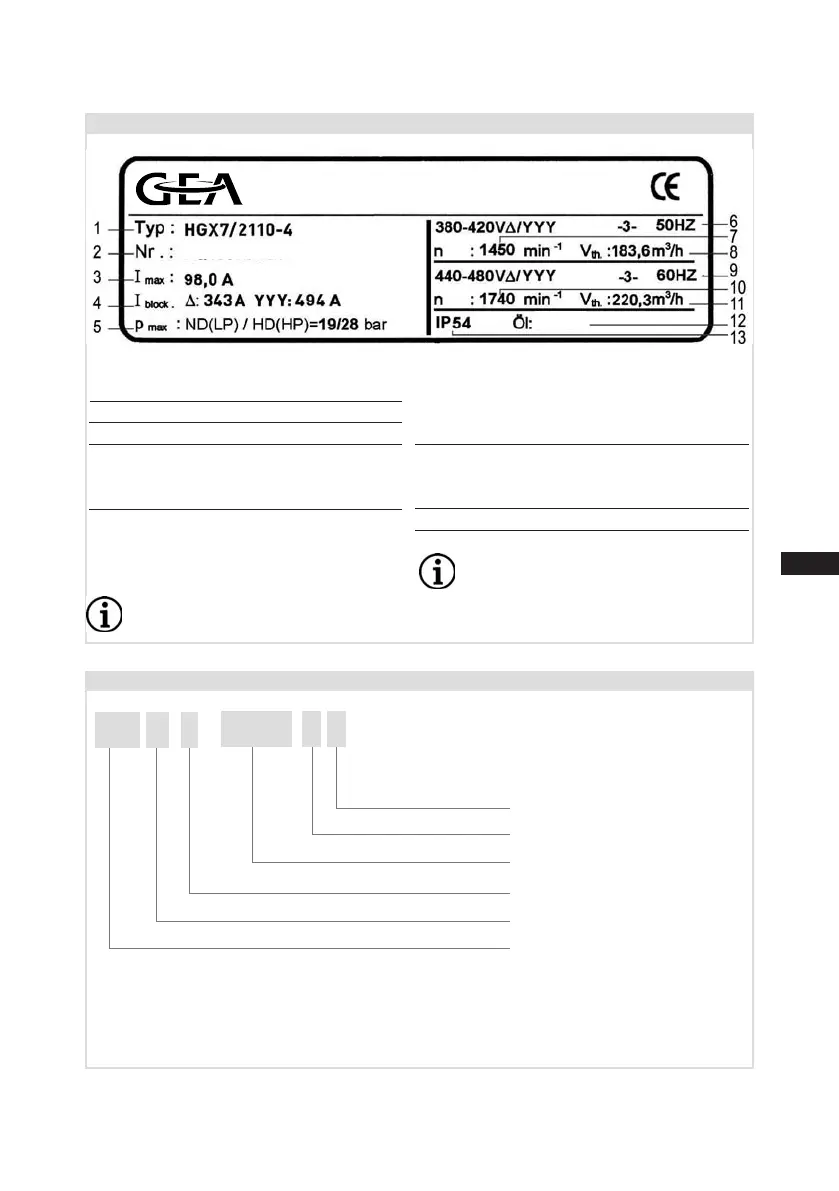

2.2 Name plate (example)
2.3 Typekey (example)
1)
HG - Hermetic-Gas-cooled (suction gas cooled) for the normal- / air conditioning applications
2)
X - Ester oil filling (HFC refrigerant, e.g. R134a, R404A, R507, R407C)
3)
S - Stronger motor e.g. air conditioning applications
Motor variant
3)
Number of poles
Swept volume
Size
Esteroillling²
)
Series ¹
)
S
SE 55
AS09529A001
1 Typedesignation 6 Voltage,circuit,frequency
2 Machine number 7 Nominal rotation speed
3 maximum operating current 8 Displacement
4 Startingcurrent(rotorblocked) 9 Voltage,circuit,frequency
Δ: Part winding 1 10 Nominal rotation speed
YYY: Part windings 1 and 2 11 Displacement
5 ND (LP): max. admissible operating  12 Oiltypelledatthefactory
pressur e (g) Low pressure side 13 Terminal box protection type
HD (HP): max. admissible operating Electrical accessories can change
pressur e (g) High pressure side the IP protection class!
Observe the limits of application
diagrams!
