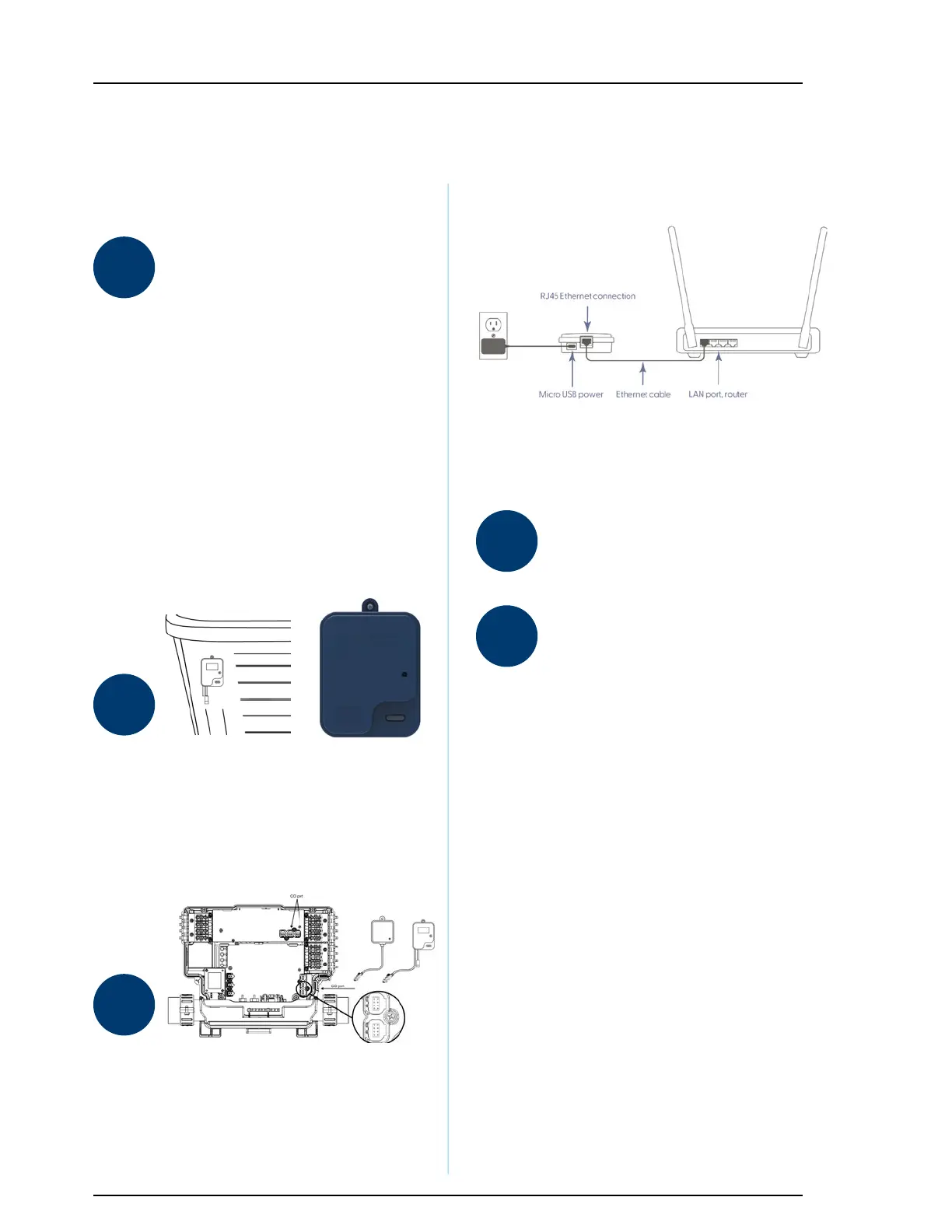

Installation of the in.touch 3 & 3+ module
CO module (Spa) installation
Prior to any installation procedures, turn off
the power of the spa
Install the CO module unit under the hot tub skirt
as high as possible in a corner facing towards
your home router.
The CO module should be at least 12” (30 cm) from
any metal component or structure.
This is necessary to ensure optimal transmission.
In some cases, it may be necessary to relocate
the unit once the spa is installed in the yard to
guarantee proper signal transmission and distance.
Screw the CO module with a #8 pan head screw
and leave some slack on the cable
This will enable the module to be repositioned to
optimize the signal strength in the yard.
Connect the CO module into an available CO port
of the control system
Note that the CO module only has a single CO
cable and must be installed at the end of the CO
chain if more than a single accessory is installed on
the same CO port of the control system.
EN (Home) installation
To allow communication between the CO and
EN module, the EN module needs to be installed
on a router.
Connect the power supply of
the EN module.
Connect your home router to
the EN module using the LAN port
with the ethernet cable.
A
B
C
1
2
