Troubleshooting
For triple phase system

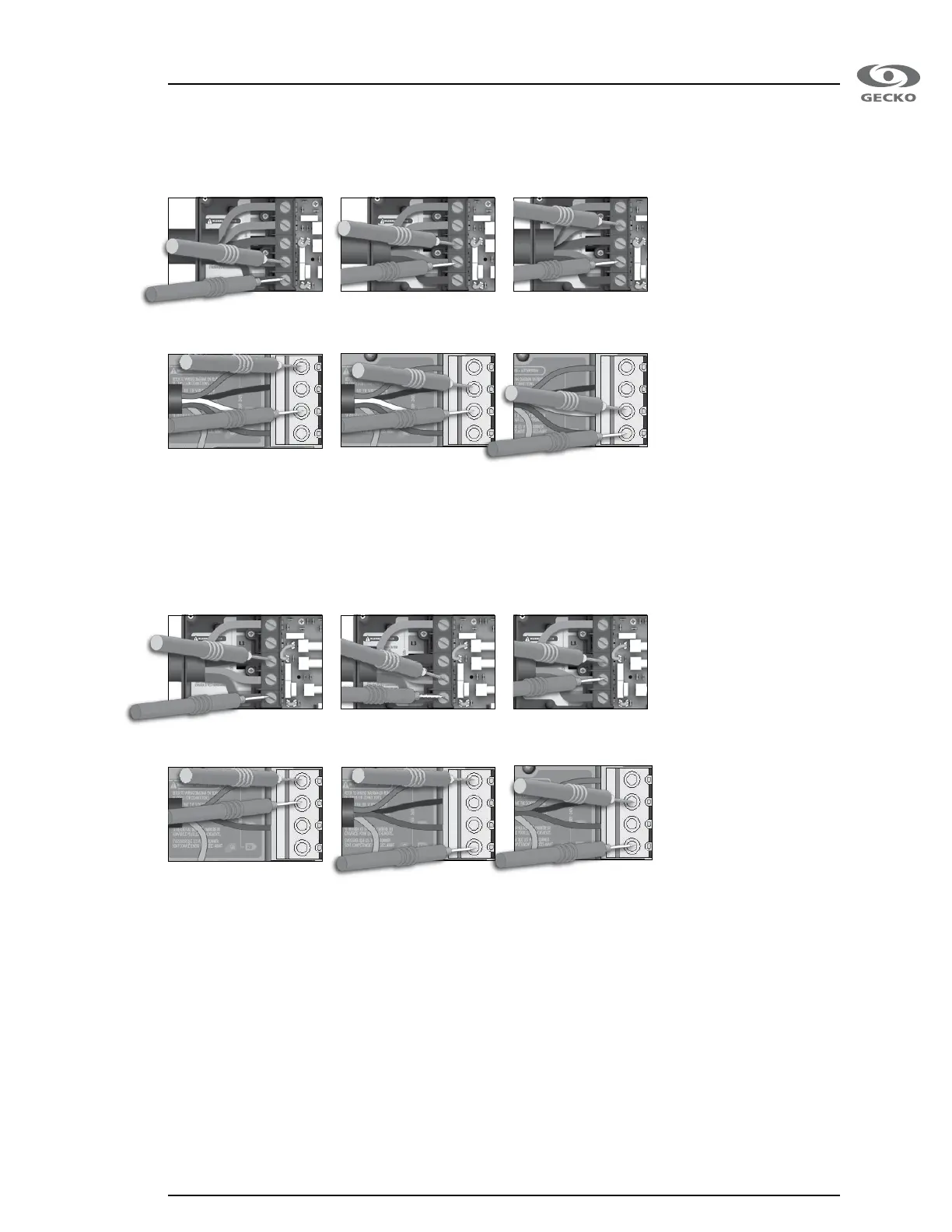

• Measure the tension between line 1 (L1) and neutral (N) and between line 2 (L2) and neutral (N)
and between line 3 (L3) and neutral (N)�
• You should measure 230V in all cases�
For delta triple phase system
• Measure the tension between line 1 (L1) and line 2 (L2), between line (L1) and line 3 (L3)
and between line 2 (L2) and line 3 (L3)�
• You should measure 230V in all cases�
L1
L1
L2
L2
N
N
L3
L3
in.ye-V3
in.ye-V3
in.ye and in.yt
in.ye and in.yt
Incorrect readings indicate an electrical cable problem. Call an electrician!
