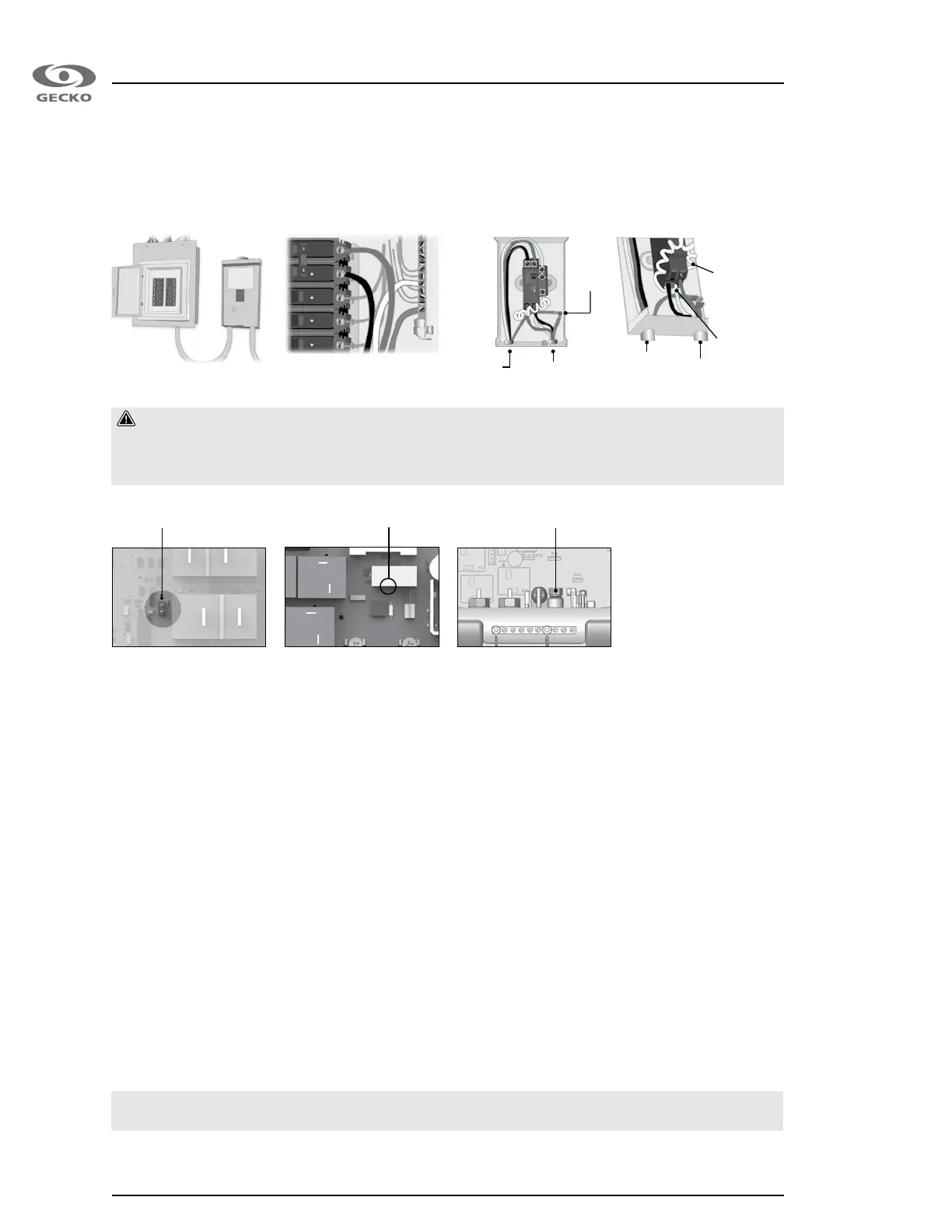

Gecko Y Series Troubleshoot Manual

32
GFCI/RCD (J1)
GFCI/RCD trips
Warning
Total current output connot exceed total input current rating!
There are different, models of GFCI/RCD on the market� Refer to the manufacturers instructions for details on the
GFCI/RCD characteristics� Note that the illustrations are given as examples only�
From
electrical
panel
To the spa
Ground
cable
Main electrical
panel
GFCI/RCD
panel
The Y series systems are equipped with a GFCI/RCD
tripper circuit in case an HL error occurs.
• For the in�yj and in�ye-v3 control systems, the GFCI/
RCD tripper circuit (J1) is placed on the card, close to
the K5 relay; localise it and remove the jumper�
• For the in�ye/yt, the GFCI/RCD tripper circuit (J1) is
placed on the card, behind the temperature probe;
localise it and remove the jumper�
• Reset the GFCI/RCD and see if the error occurs�
• If an HL error displays, follow the trouble shooting steps
(in the HL error section)�
• If no error occurs, reinstall the jumper�
Note : If the GFCI/RCD trips only when jumper (J1) is installed,
replace the spa pack.
From
electrical
panel
To
the spa
Important
connections:
The neutral
of GFCI/RCD
must be
linked to the
neutral bar.
The spas
neutral must
be linked to
the breaker.
The GFCI/RCD trips and the jumper (J1) is not installed;
the error does not come from the GFCI/RCD tripper
circuit.
• Ensure the breaker circuit is connected properly�
• If it is not, reconnect it�
• Verify the cable connection of the spa (ensure that the
neutral and ground are not inverted)�
If the connection is correct but the GFCI/RCD still
triggers:
• Unplug all system outputs (pump, blower, water
heater, ozonator, etc�)�
• If the GFCI/RCD does not trigger when all outputs
are unplugged, reconnect the outputs one by one
until the GFCI/RCD trips again�
• Replace the defective parts�
Note: In case of a faulty connection, the GFCI/RCD may NOT trigger when it should and expose the user to an electrical choc.
Only qualified personnel may intervene on the electrical installations.
Troubleshooting
GFCI/RCD (J1)
in.yj in.ye and in.yt
GFCI/RCD (J1)
in.ye-V3
