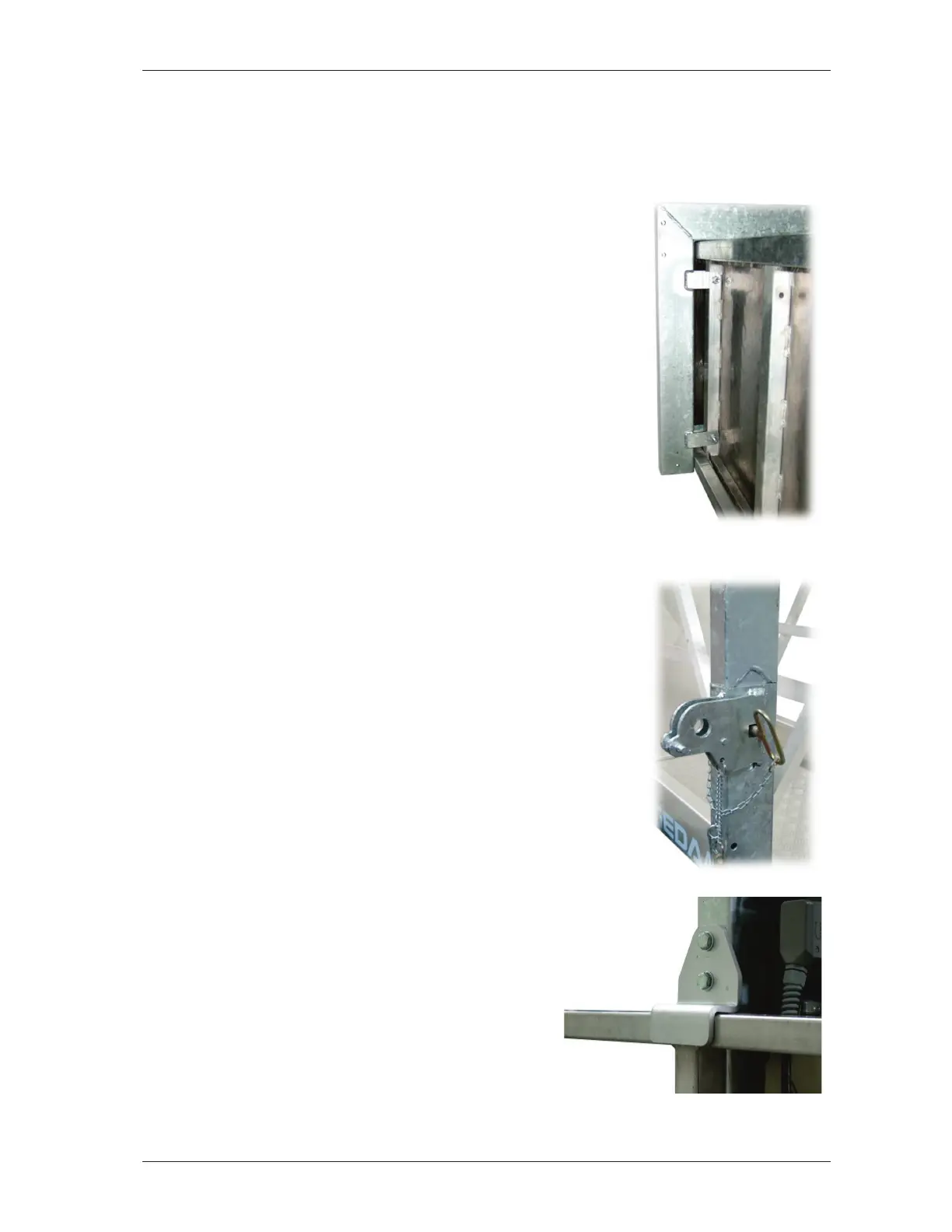

5.4 Mounting the C clamps (optional)
Mounting the lower part
¾
Tilt the working platform onto its side or
have it lifted by a second installer.
¾ Fasten the bottom section of the C-clamp
0.5 or 1.0 m from the outer edge of the
platform.
The spacing of the C-clamp must be identical
on both sides.
¾ Tilt the platform back to the upright position
or set it down again.
2 x bolts M10x90 8.8
2 x washers
2 x self-locking nuts M10
Mounting the upper section
¾ Place the upper part of the C-clamp onto the
lower part of the C-clamp and secure with
socket pins.
¾ Clamp the C-clamp onto the
railing using angle brackets.
