GEDA AB 450 - Mounting the Wire Ropes

GEDA
®
SUSPENDED WORKING PLATFORM AB 450 / 650 Assembly
BL061 GB Edition 04/2016
55 / 96 Assembly and operating manual

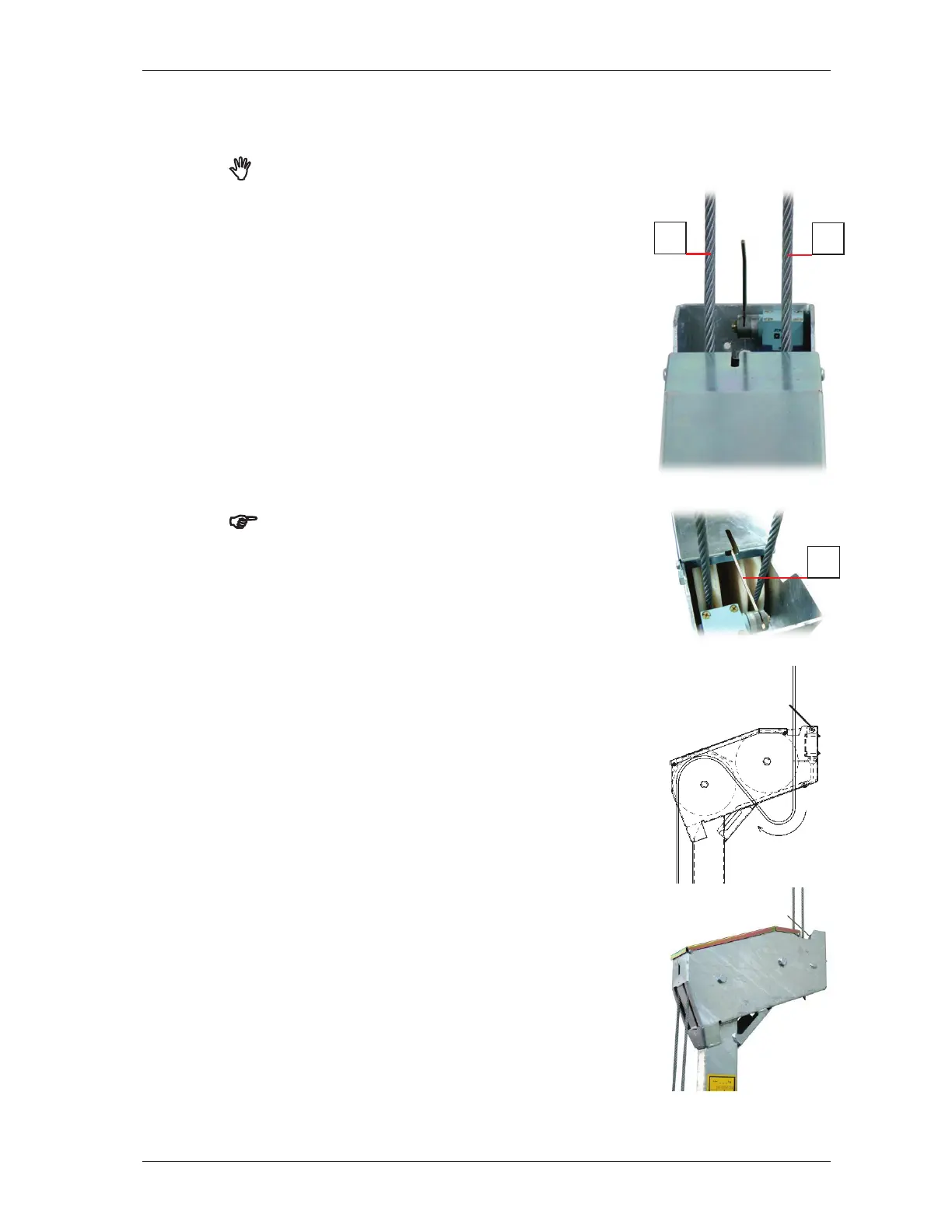

5.7 Mounting the wire ropes
5.7.1 Mounting on the C-clamp
1 The drive and safety ropes must not be mixed up.
Ensure that the ropes are not twisted.
¾ Insert the drive rope (1) and safety rope (2)
from above into the C-clamp.
)
The safety lever (3) can be locked in place
to protect the limit switch. After the ropes
have been installed, it is imperative that the
safety lever is released again.
¾
Loop the wire ropes around the pulleys of
the C-clamp.
1
2
3
