80224_MHW_650 L - 1250 L_07-2018_ENG - 18

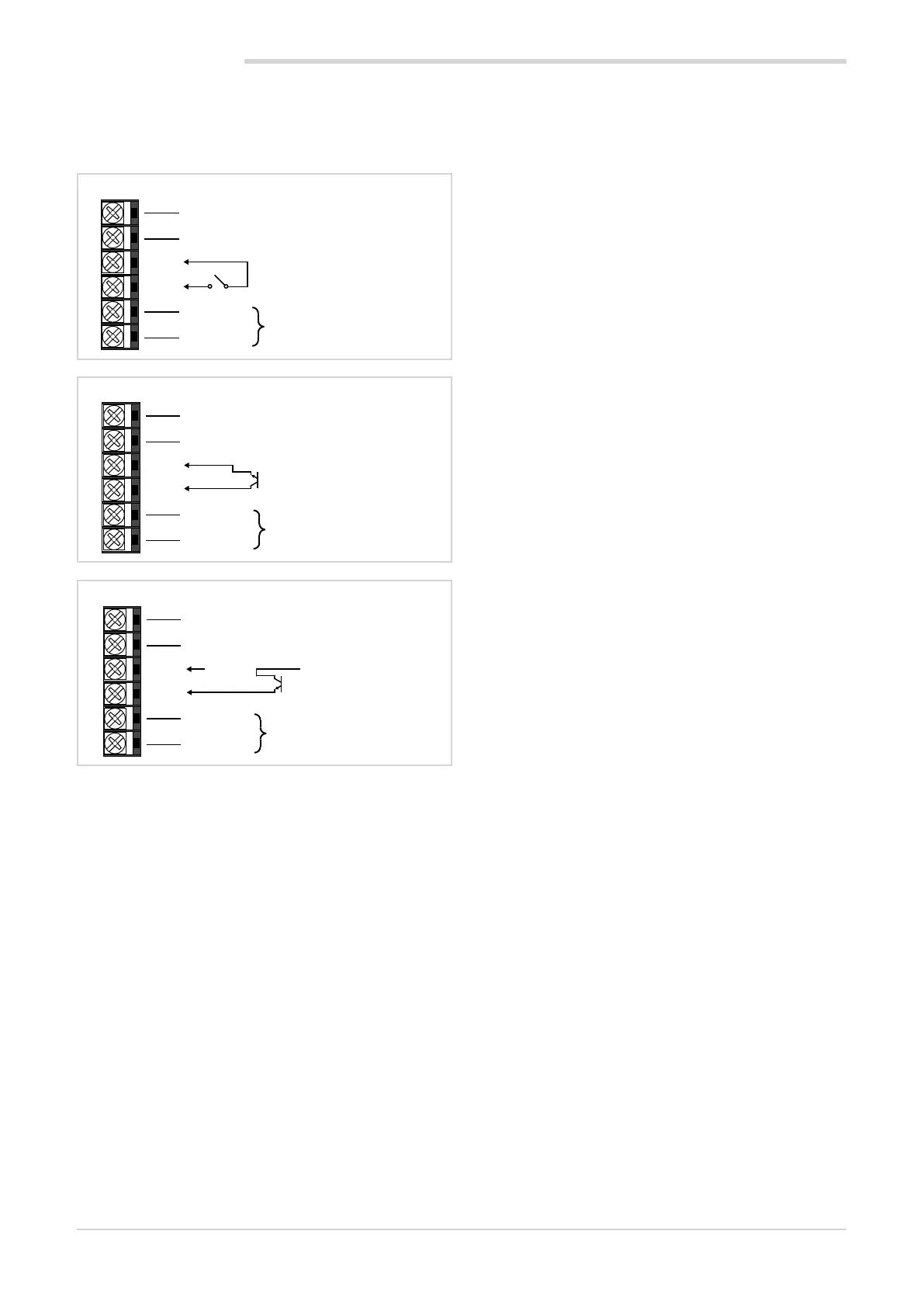

2.3.5. Options
Types of optional inputs and outputs are specified when is
ordered.
Option
7
8
9
10
11
12
-
COM
IN1
+
A (Data -)
B (Data +)
Out A1
Analog output
0...10 V, I
max
20 mA
0...20 mA, 4...20 mA R
out
< 500 Ω
Digital inputs
dry contact
Serial line
RS485 2-wires
Option
7
8
9
10
11
12
-
COM
IN1
+
A (Data -)
B (Data +)
Out A1
Analog output
0...10 V, I
max
20 mA
0...20 mA, 4...20 mA R
out
< 500 Ω
Digital inputs
NPN 24V, 4.5mA
Serial line
RS485 2-wires
Option
7
8
9
10
11
12
-
COM
IN1
+
A (Data -)
B (Data +)
GND
Out A1
Analog output
0...10 V, I
max
20 mA
0...20 mA, 4...20 mA R
out
< 500 Ω
+12/24V max 3.6mA
PNP digital inputs
Serial line
RS485 2-wires
