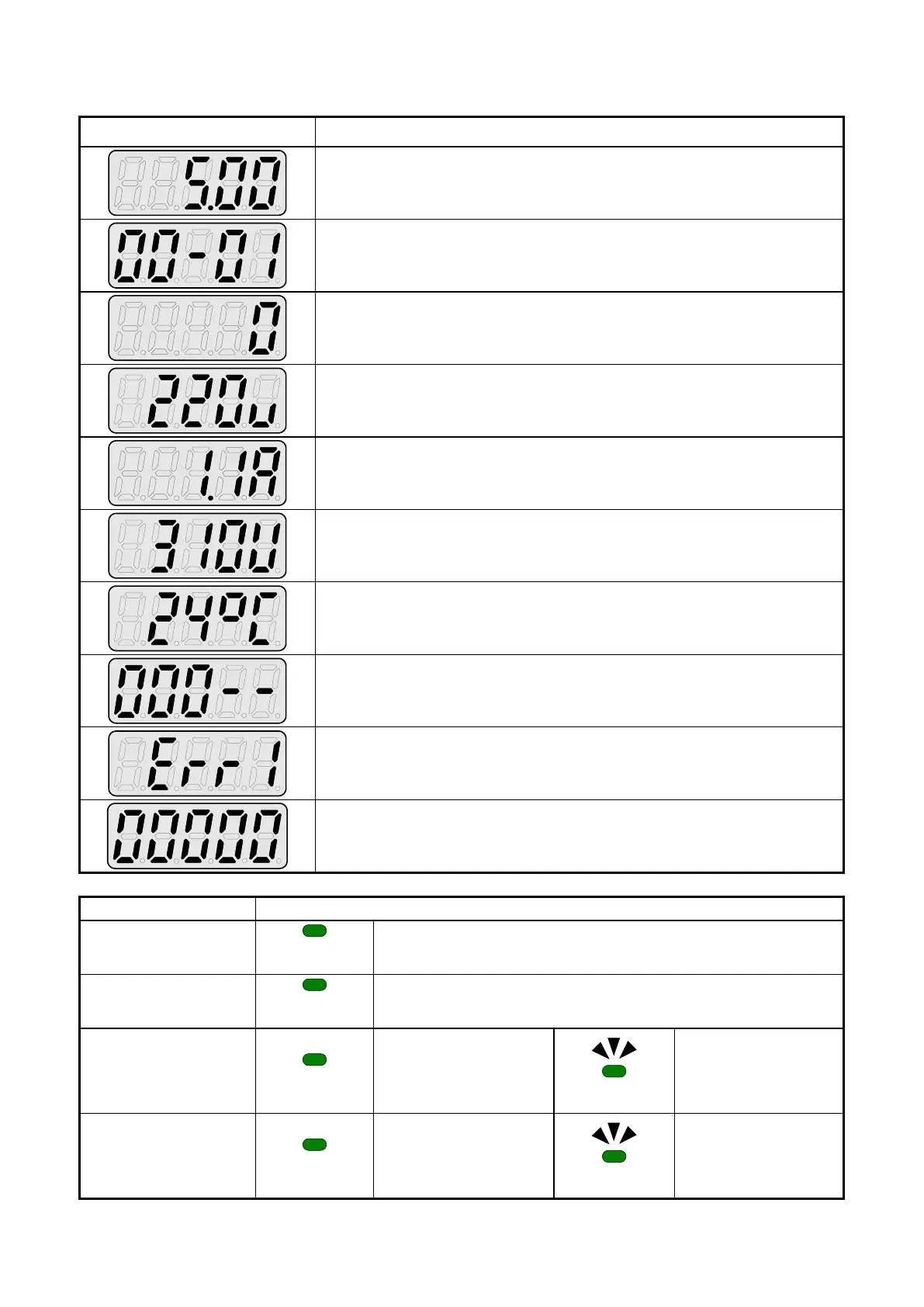

LED display examples
Display
Description
In stop mode shows the set frequency
In run mode shows the actual output frequency
Selected Parameter
Parameter Value
Output Voltage
Output Current in Amps
DC Bus voltage
Temperature
PID feedback value
Error display
Analogue Current / Voltage ACID / AVI . Range ( 0~1000)
LED Status description
LED Indicator light Status
Frequency / line
speed Indicator
Hz/RPM
On
Menu mode indicator
FUN
On while not displaying frequency or line speed
FWD indicator
FWD
On while running
forward
FWD
Flashing while
stopped in
Forward mode.
REV indicator light
REV
On while running
reverse
REV
Flashing while
stopped in
Reverse mode
Hz/rpm
Fun
FWD
REV
FWD
REV
