gefran BDI50 Series User Manual

4-30
01- 01
V/f Maximum voltage
Range
200:【170.0~264.0】V
400:【323.0~528.0】V
01- 02
Maximum Frequency (base frequency)
Range
【
0.2 ~ 599.00
】
Hz
01- 03
Maximum Frequency Voltage Ratio
Range
【
0.0 ~ 100.0
】
%
01- 04
Medium Frequency 2
Range
【
0.1 ~ 599.00
】
Hz
01- 05
Medium Frequency Voltage Ratio 2
Range
【
0.0 ~ 100.0
】
%
01- 06
Medium Frequency 1
Range
【
0.1 ~ 599.00
】
Hz
01- 07
Medium Frequency Voltage Ratio 1
Range
【
0.0 ~ 100.0
】
%
01- 08
Minimum Frequency
Range
【
0.1 ~ 599.00
】
Hz
01- 09
Minimum Frequency Voltage Ratio
Range
【
0.0 ~ 100.0
】
%
 Max output frequency depends on parameter 01-00 , for 01-00=【7】It can be set by parameter
01-02.
 For 01-00 ≠【7】, the maximum output frequency depends on parameter 00-12, frequency
upper limit.
01-10
Volts/Hz Curve Modification (Torque Boost)
Range
【
0 ~ 10.0
】
%

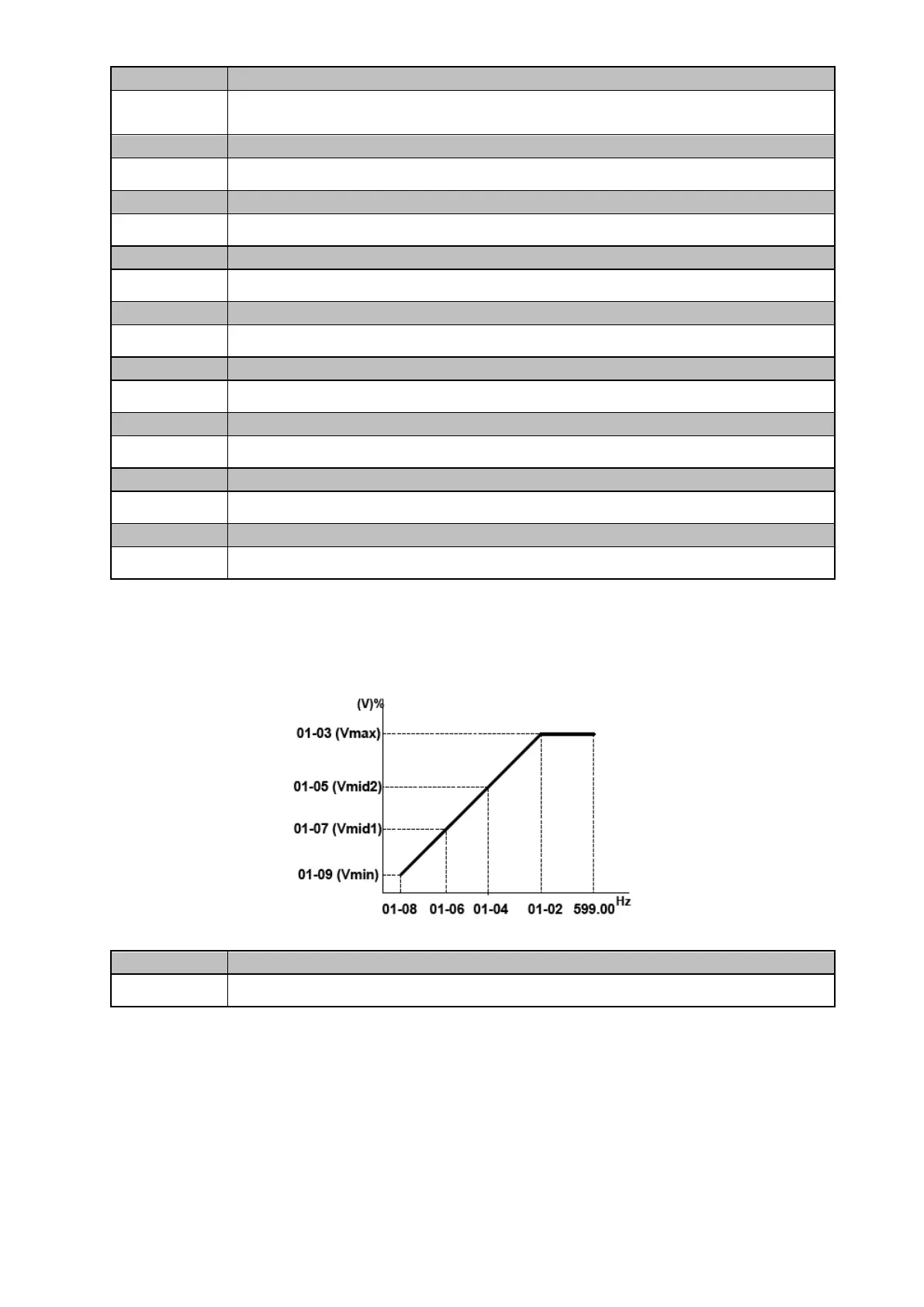

 Inverter output V / F curve settings for points B, C can be adjusted by parameter 01-10 to
improve the output torque.
 Calculation of B, C point voltage: B point voltage = Xb × maximum output voltage, C point
voltage = Xc × maximum output voltage (Xb, Xc see 01-00). When 01-10 = 0, the torque
improvement is disabled.
