11
80544B_MHW_DIGISTAR II - DIGISTAR II Control - GF-BOX_02-2013_ENG

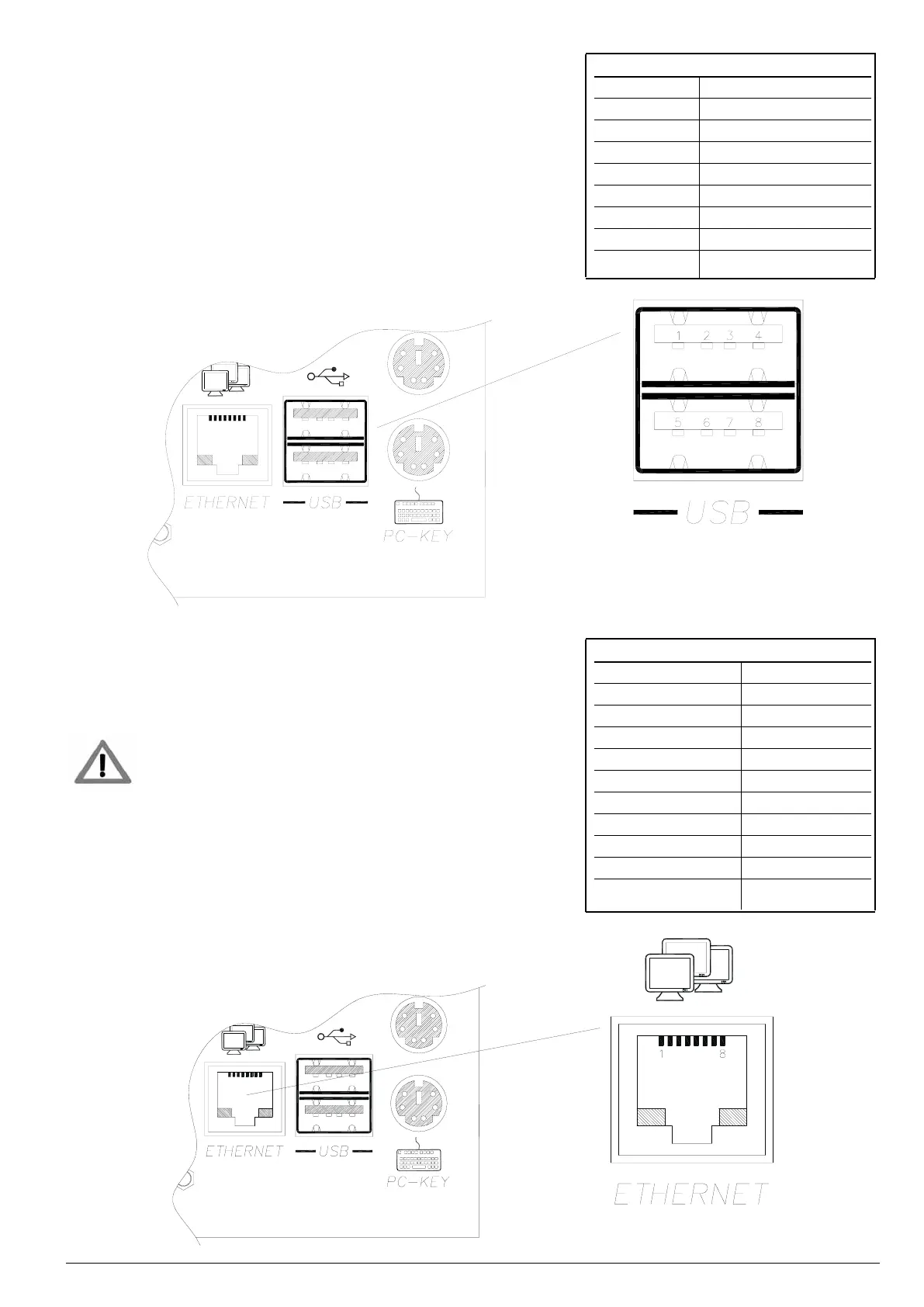

USB (3)
The USB connection includes 2 slot masters, a type A connector with
4 poles.
It is also possible to connect two users at the same time.
USB
Pin number Signal
1 VCC_USB
2 USB1-
3 USB1+
4 GND_USB
5 VCC_USB
6 USB2-
7 USB2+
8 GND_USB
ETHERNET (4)
The RJ45 ethernet connection complies with standards TIA/EIA-568-A
with a transmission speed of 10/100 Mbps.
For connections, use a cable of adequate category to the
application. In an industrial environment the category 6 cable
is recommended.
ETHERNET 10/100 BASET
Pin number Signal
1 TX+
2 TX-
3 RX+
4 N.C.
5 N.C.
6 RX-
7 N.C.
8 N.C.
Green led on the left data
Yellow led on the right link
