21
80544B_MHW_DIGISTAR II - DIGISTAR II Control - GF-BOX_02-2013_ENG

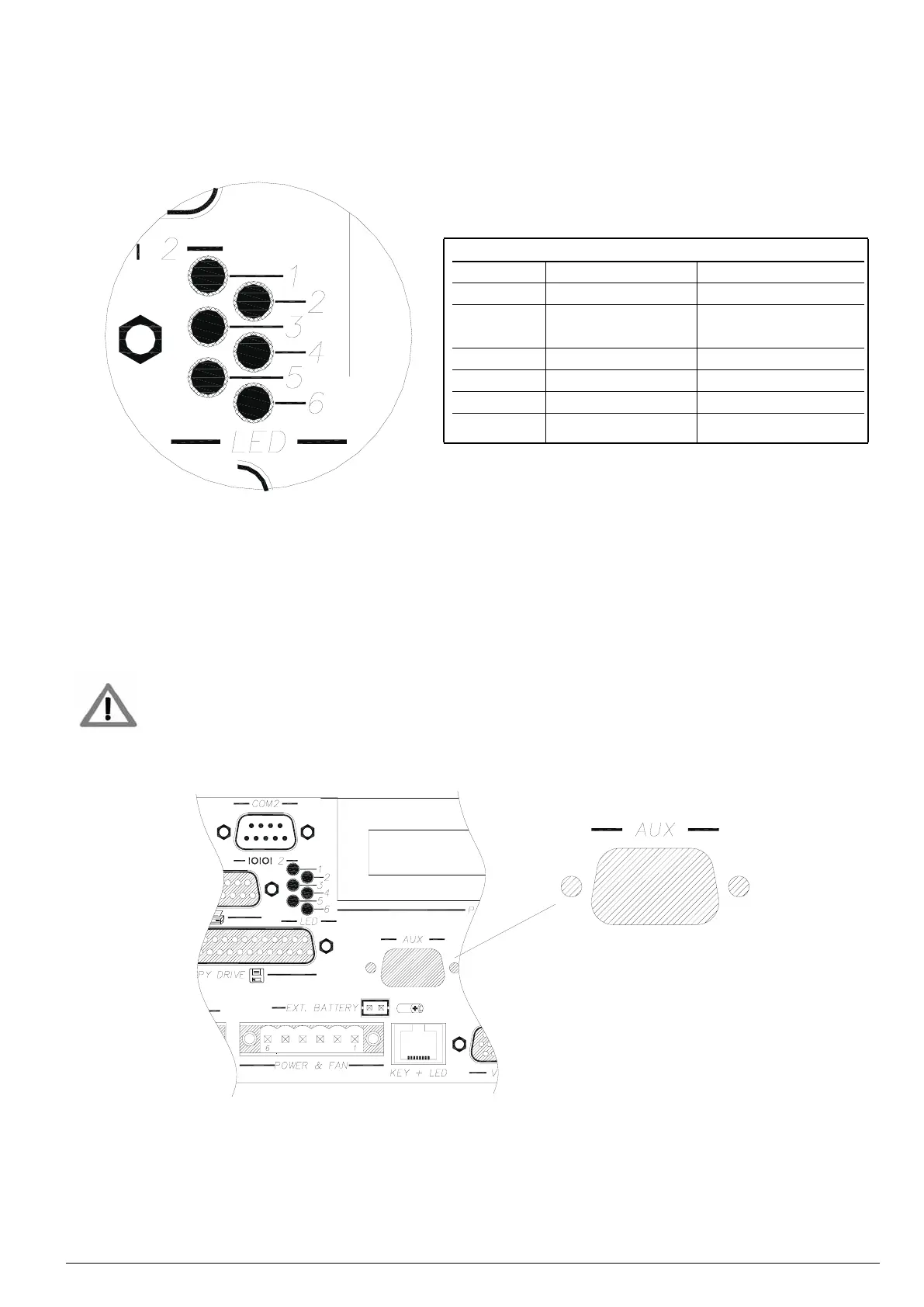

Led Diodes (19)
On the back of the module, the leds indicate the machine status.
Led
UBI Colour Function
1 Red Over-temperature
2 Green Connection to key-
board and led matrix
3 Green Auxiliary
4 Green RUN
5 Yellow POWER
6 Red BATTERY FAIL
REMOTE VIDEO output (GF-BOX ONLY)
GF-BOX can be fitted with optional video and keyboard remoting.
The remoting system allows the DIGIPANEL and GT_O display to be connected up to a distance of 25 m.
The electrical connection must be made using the Gefran prewired cable (see specific document) or by
following the constructive specifications of the cable.
