Before opening the system we recommend that you switch off Digistar II, DIGISTAR II Control or GF-BOX
using the ON/OFF switch provided.
In order to access the internal resources of the system, a flat blade screwdriver is required.

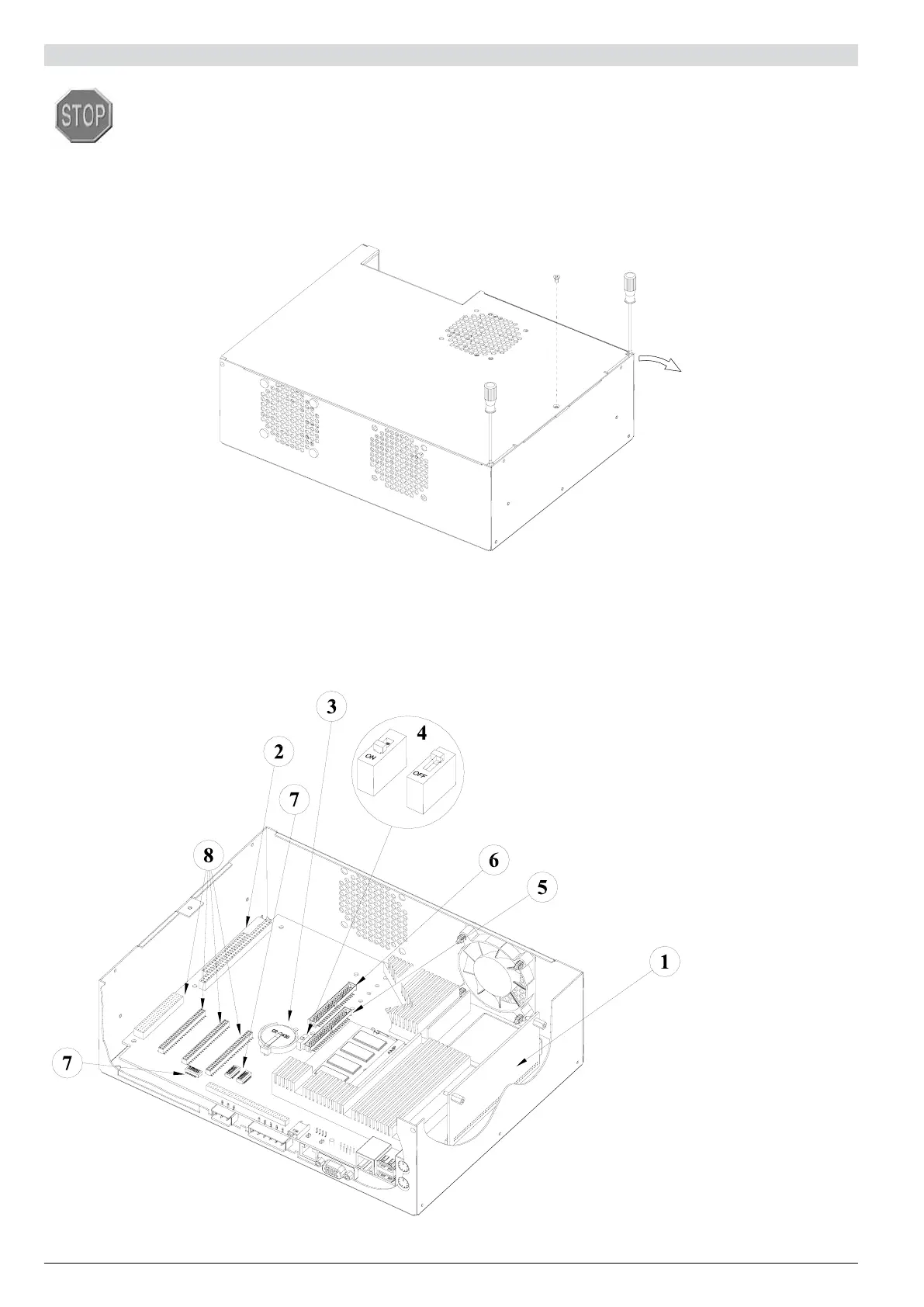

ACCESS TO THE INTERNAL RESOURCES OF THE SYSTEM
In order to open the rear cover insert the screwdriver into the slots A and B, apply some pressure in the direction
indicated by the arrow.
Expansions and internal resources
(1) PCI standard slot
(2) PC104 standard slot
(3) Battery
(4) Battery switch
(5) IDE secondary 40 pin connector
(6) IDE primary 44 pin connector
(HD and DOM installation)
(7) Serial COM1 configuration
(8) 4 slot expansion custom gefran
