gefran DIGISTAR II User Manual

29
80544B_MHW_DIGISTAR II - DIGISTAR II Control - GF-BOX_02-2013_ENG

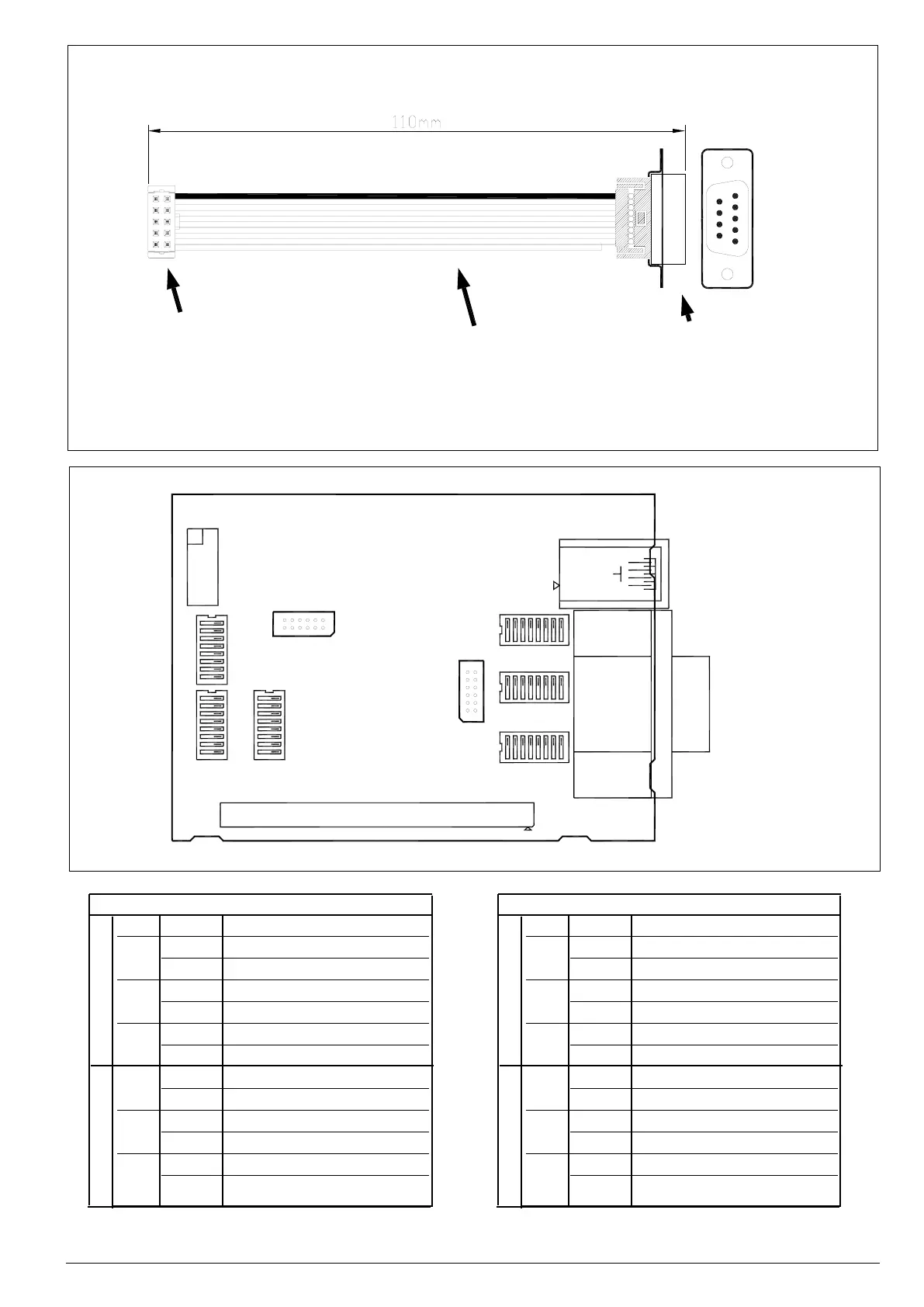

Connector type
D-SUB 9 pin Male FLAT
10 pin FLAT cable
Connector
10 pin female FLAT
2
10
1
5
6
9
J1
(COM4)
J2
(COM4)
J3
S15
S10
S9
S8
S25
S14
S11
S13
J4
(COM4)
S15 (COM3)
Pin Value Description
1 ON Polarisation + Present
OFF Polarisation + Absent
2 ON Termination Present
OFF Termination Absent
3 ON Polarisation + Present
OFF Polarisation + Absent
4 ON Polarisation + Present
OFF Polarisation + Absent
5 ON Termination Present
OFF Termination Absent
6 ON Polarisation + Present
OFF Polarisation + Absent
Reception Transmission
S25 (COM4)
Pin Value Description
1 ON Polarisation + Present
OFF Polarisation + Abesent
2 ON Termination Present
OFF Termination Absent
3 ON Polarisation + Present
OFF Polarisation + Absent
4 ON Polarisation + Present
OFF Polarisation + Absent
5 ON Termination Present
OFF Termination Absent
6 ON Polarisation + Present
OFF Polarisation + Absent
Reception Transmission
Note: Terminations and polarisations must be installed only at the heads of the line.
