gefran GFX4-IR Configuration And Programming Manual

1980415F_MSW_GFX4-IR_05-2019_ENG
Input lter
ADVANCED SETTINGS
412
FT.TU
R/W
Digital filter for auxiliary TV input (phase
1, 2 and 3)
0.0 ... 20.0 sec.
2.0
Sets a low pass lter on the auxiliary TV input, running the average of values read in the
specied time interval. If = 0 , excludes the average lter on sampled values.

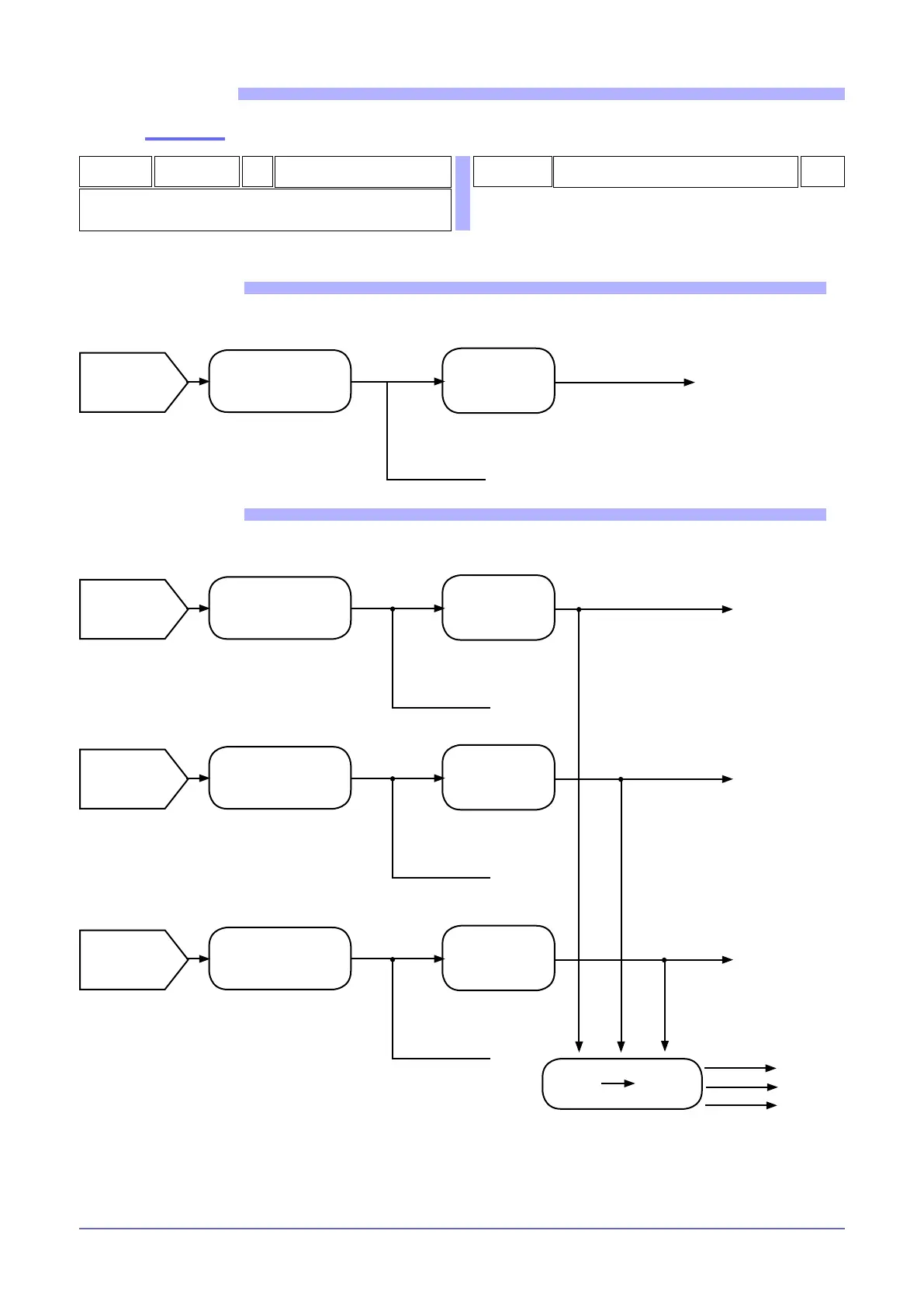

FUNCTIONAL DIAGRAM
Single-phase load
Scale limits,
Offset
(o.tV1)
Filter
low pass
(Ft.tV)
Variable I.VF1
see generic
alarms
Voltmeter
input
phase1
FUNCTIONAL DIAGRAM
3-phase load
Scale limits,
Offset
(o.tV1)
Filter
low pass
(Ft.tV)
Variable I.VF1
Voltmeter
input
phase1
Variable I.tV1
Scale limits,
Offset
(o.tV2)
Filter
low pass
(Ft.tV)
Variable I.VF 2
Voltmeter
input
phase2
Variable I.tV2
Scale limits,
Offset
(o.tV3)
Filter
low pass
(Ft.tV)
Variable I.VF 3
Voltmeter
input
phase3
Variable I.tV3
I.V21
I.V32
I.V13
Variable I.tV1
Phase Line
voltage
voltage
