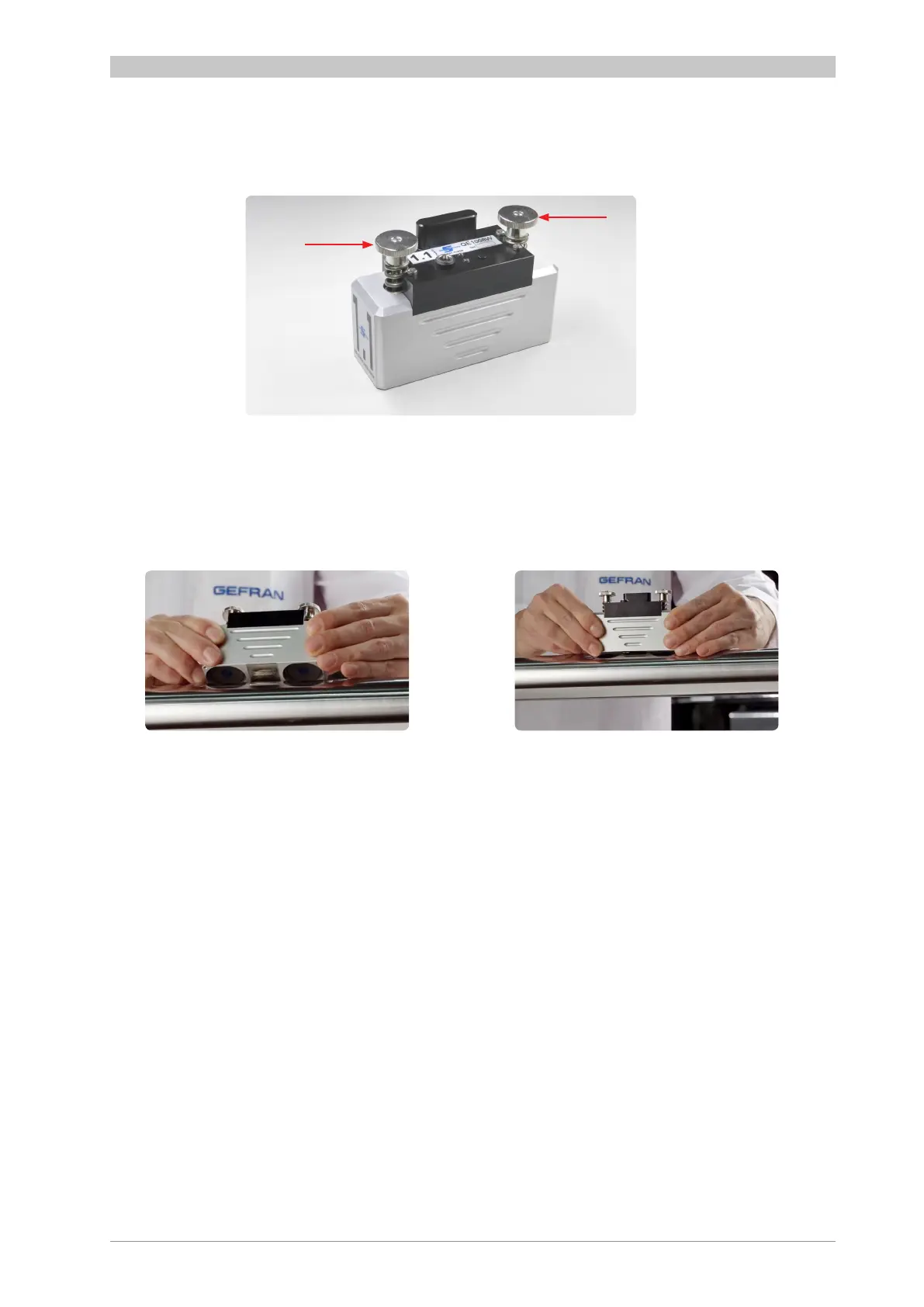

9.1.2. Positioning the sensor
1. Turn both knurled nuts so that they are ush with the end of the threaded rod.
2. The long edge of the sensor must be placed onto the surface to be measured and then
tilted. The magnets pull the sensor onto the tie bar.
