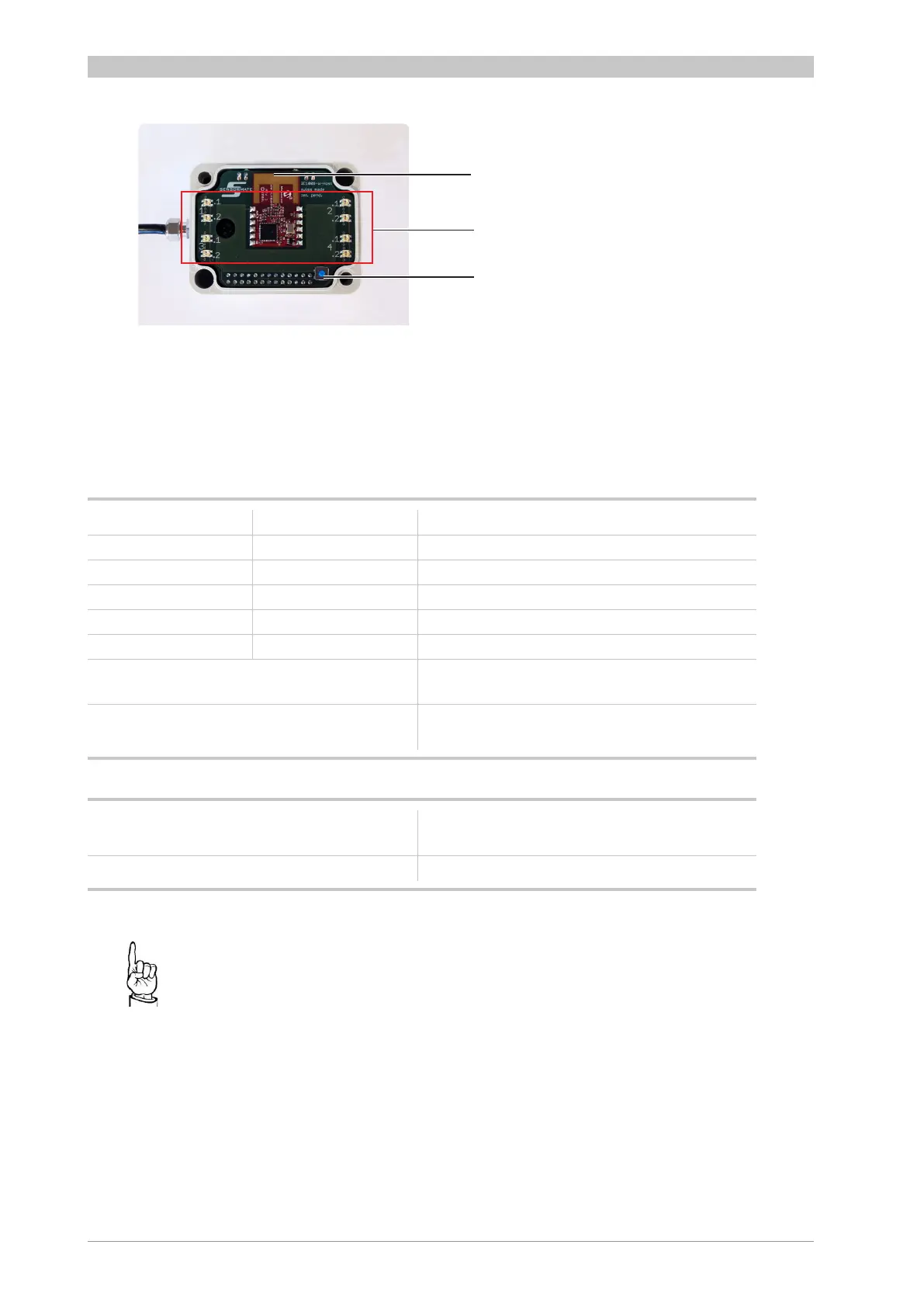

10.4. Wireless receiver QE1008-W-G
LED status
LED green: ashing
LED red: o󰀨 → Ready (normal operation)
LED green: ashing
LED red: on → Rechargeable battery virtually empty
LED green: ashing
LED red: ashing → Strain gauge on sensor is defective
LED red: on
LED green: o󰀨
→ Sensor not found
Both LEDs ash alternately → Selected assignment slot is
in logon mode
All LEDs light up red for 1 second → All assignments have been
deleted
Button function
Press button briey (select assignment
slot by pressing button several times)
→ Assignment slot is automatically in
logon mode
Press button for ~10 seconds → Deletes all assignments
The function button is primarily used to assign a QE1008-W sensor.
01 Aerial
02 8 dual LEDs represent 8 assignment slots
(1.1) (1.2) (2.1) (2.2) (3.1) (3.2) (4.1) (4.2)
03 Blue function button
01
02
03
