50950106/AP0313 3

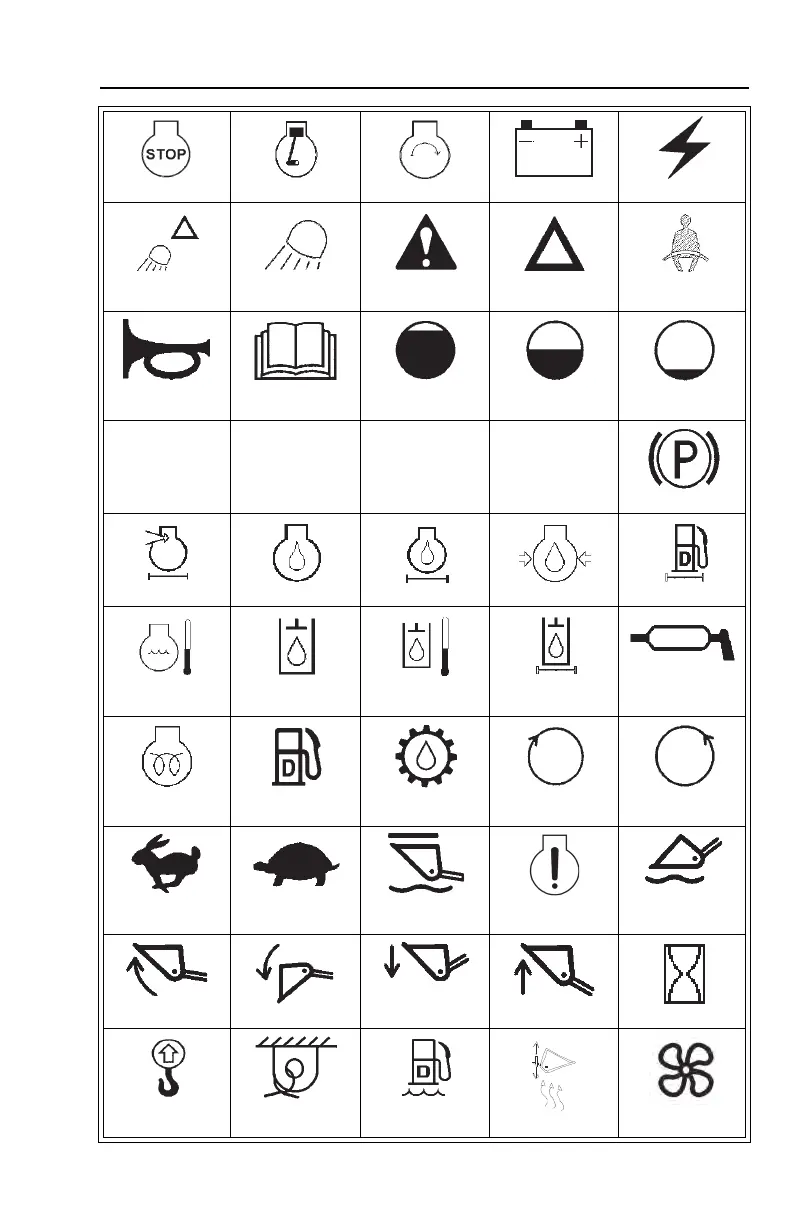

Control/Indicator Symbols
Power Off Power On Engine Start Battery Charge
Electrical Power
Worklight w/Tail
Lights
Worklight Safety Alert Hazard Flasher Fasten Seatbelt
Horn Read Operator’s
Manual
Volume – Full Volume – Half Full Volume – Empty
H-L
High – Low
N
Neutral
F
Forward
R
Reverse
Parking Brake
Engine Air Filter
Engine Oil Engine Oil Filter Engine Oil Pressure Fuel Filter
Engine Temperature Hydraulic System Hydraulic Oil
Temperature
Hydraulic Oil Filter Grease Lubrication
Point
Glow Indicator
Lamp
Diesel Fuel Chaincase Oil Clockwise Rotation Counterclockwise
Rotation
Fast Slow Ride Control Engine Malfunction
Shutdown
Bucket – Float
Bucket – Rollback Bucket – Dump
Lift Arm – Lower
Lift Arm – Raise Service Hours
Lift Point Tie-Down Diesel Water
Separator
Power-A-Tach®
Air Circulating Fan
