Engine Maintenance
Engine Access
1. Peform the “Mandatory Safety Shutdown Proce-
dure” on page 20.
2. Use the ignition key to unlock the latch (A, Fig.
124) on the top engine compartment cover. Pull
up on the latch and lift the cover.
3. Pull up on handle (B) inside the top left lip of the
rear door. Swing the door open to access engine
components.
NOTE:
Opening the rear door all the way engages
stop (S, Fig. 125), which holds the door open.
Closing Engine Covers
1. Lift up on the rear door stop (S), and firmly close
the rear door.
NOTE:
It is important for the rear door to close
and latch completely, so the top engine cover latch
aligns properly with the pin on the rear door.
Incomplete latching of the rear door/top cover may
cause latches to stick.
2. With the rear door completely closed and
latched, firmly close the top engine cover until it
is completely closed and latched.

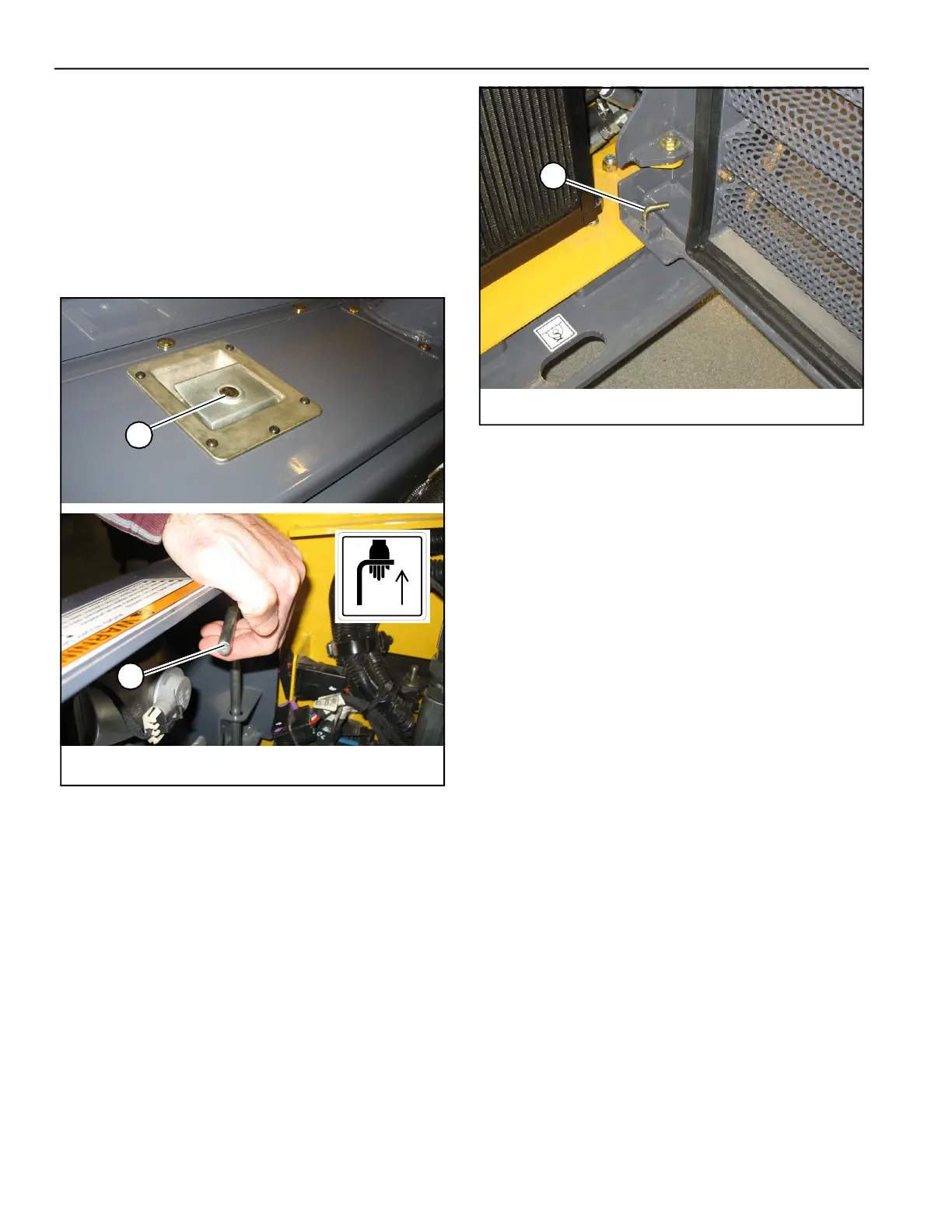

Fig. 124 – Engine Access
B
A
Fig. 125 – Engine Access
S
