917001/CP0905 35
Auxiliary Hydraulic Controls
Auxiliary hydraulics are used with attachments that have a mechanism requiring
its own hydraulic power.
Important: Always be sure the auxiliary hydraulic control is in neutral before
starting the loader or disconnecting the auxiliary hydraulic couplers.
Standard-Flow Auxiliary Hydraulic Control
Loaders are shipped from the factory with
a standard-flow auxiliary hydraulic system
with flat-face couplers. The couplers are
located under the lift arm on the left hand
side.
A second set of hydraulic couplers can be
added to the front of the lift arm by
ordering a field installation kit.
T-Bar and Dual-Hand Control Loaders: A
foot pedal is used to control the direction
of oil flow. A latch is provided to lock the
foot pedal for continuous operation
(Figure 16).
Hand/Foot Control Loaders: The right
handle controls the direction of oil flow. A
locking pin locks it in the up position for
continuous operation (Figure 17).

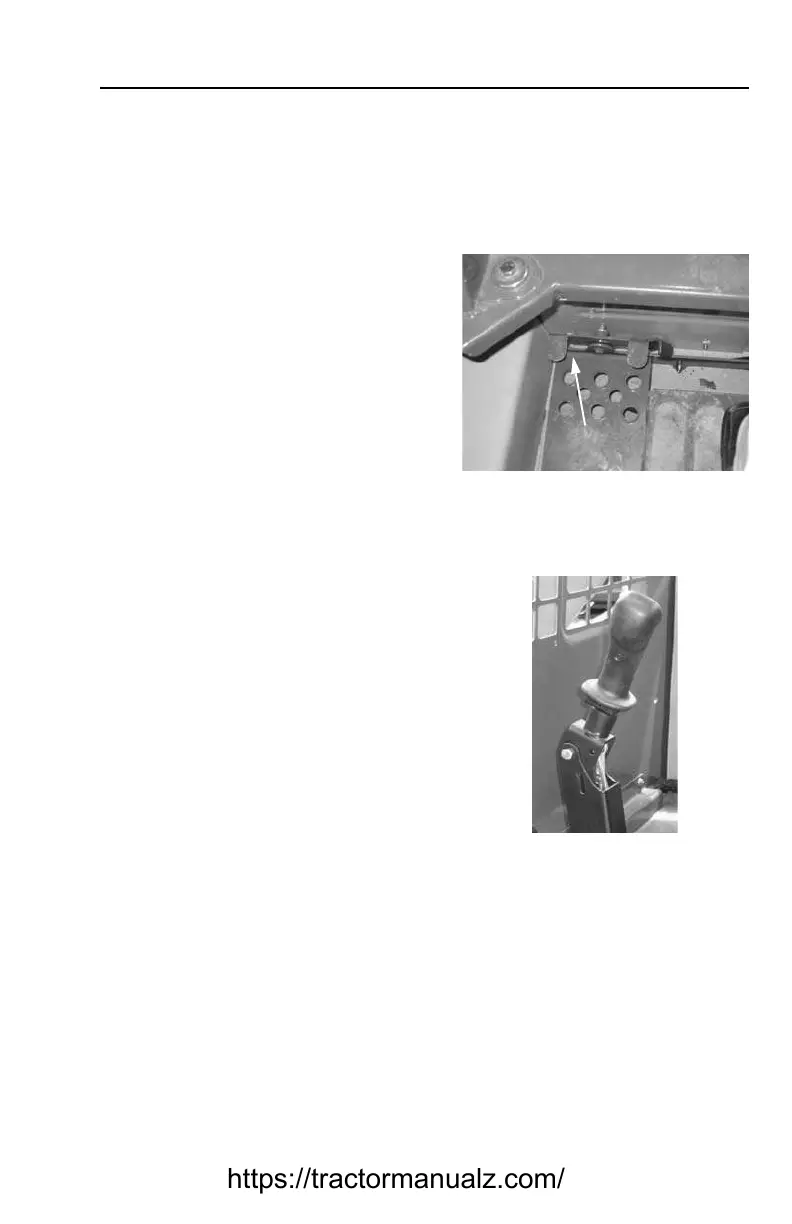

Figure 16 T-Bar, Dual-Hand and
T-bar/Joystick Auxiliary Hydrau
lic Control
Figure 17 Hand/Foot
Auxiliary Control
