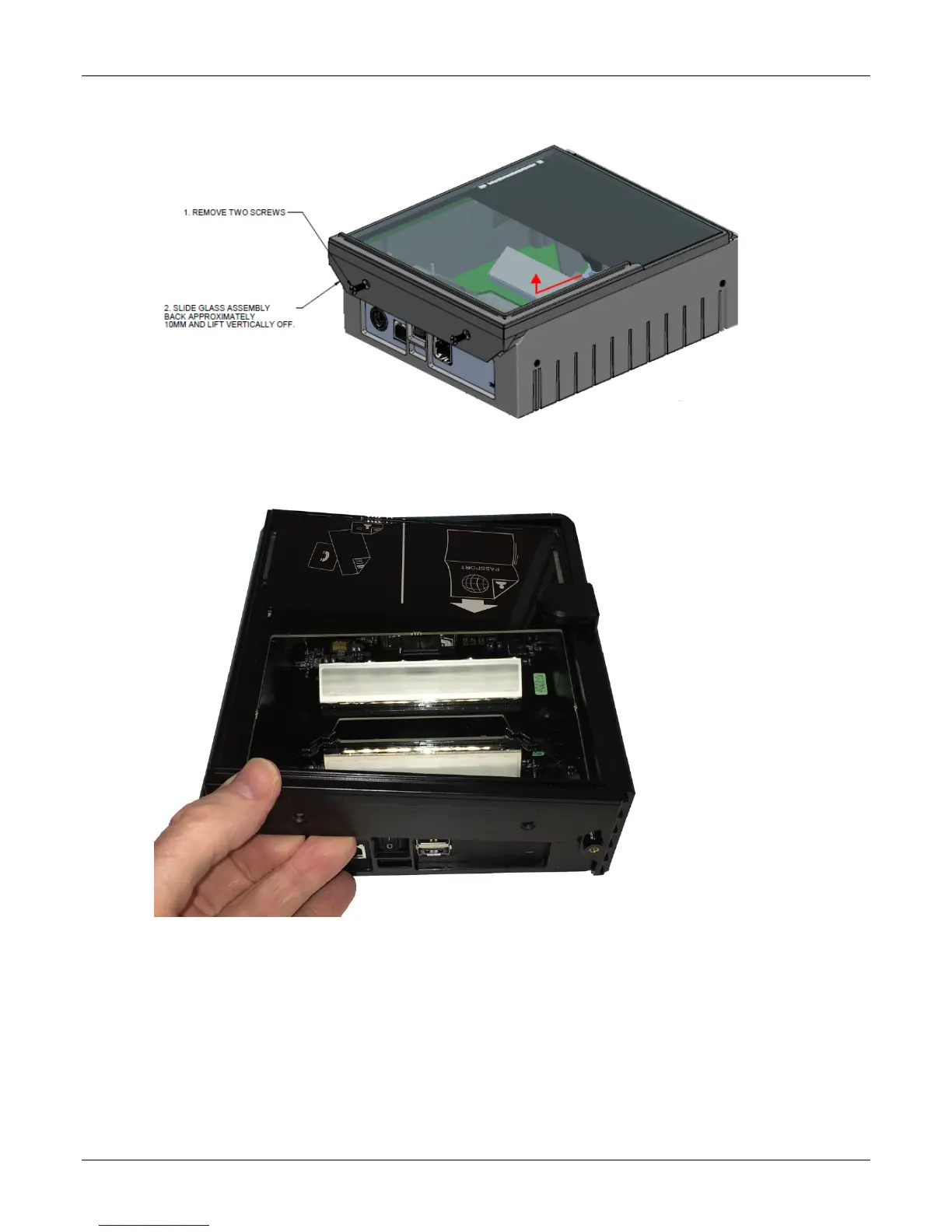

The glass assembly slides towards the rear, be careful not to damage or remove the rubber gasket
seal. The status/RFID PCB should stay in place.
3. Check that the status/RFID PCB is correctly located before reassembly. It should sit inside the
reader and be pushed forward into the retaining clips (left picture arrowed). The close-up view
shows (1) the PCB correctly positioned against the clip and (2) correctly seated into the reader
chassis.
