Document Reader AT10K User Guide Maintenance
Page 24 of 29

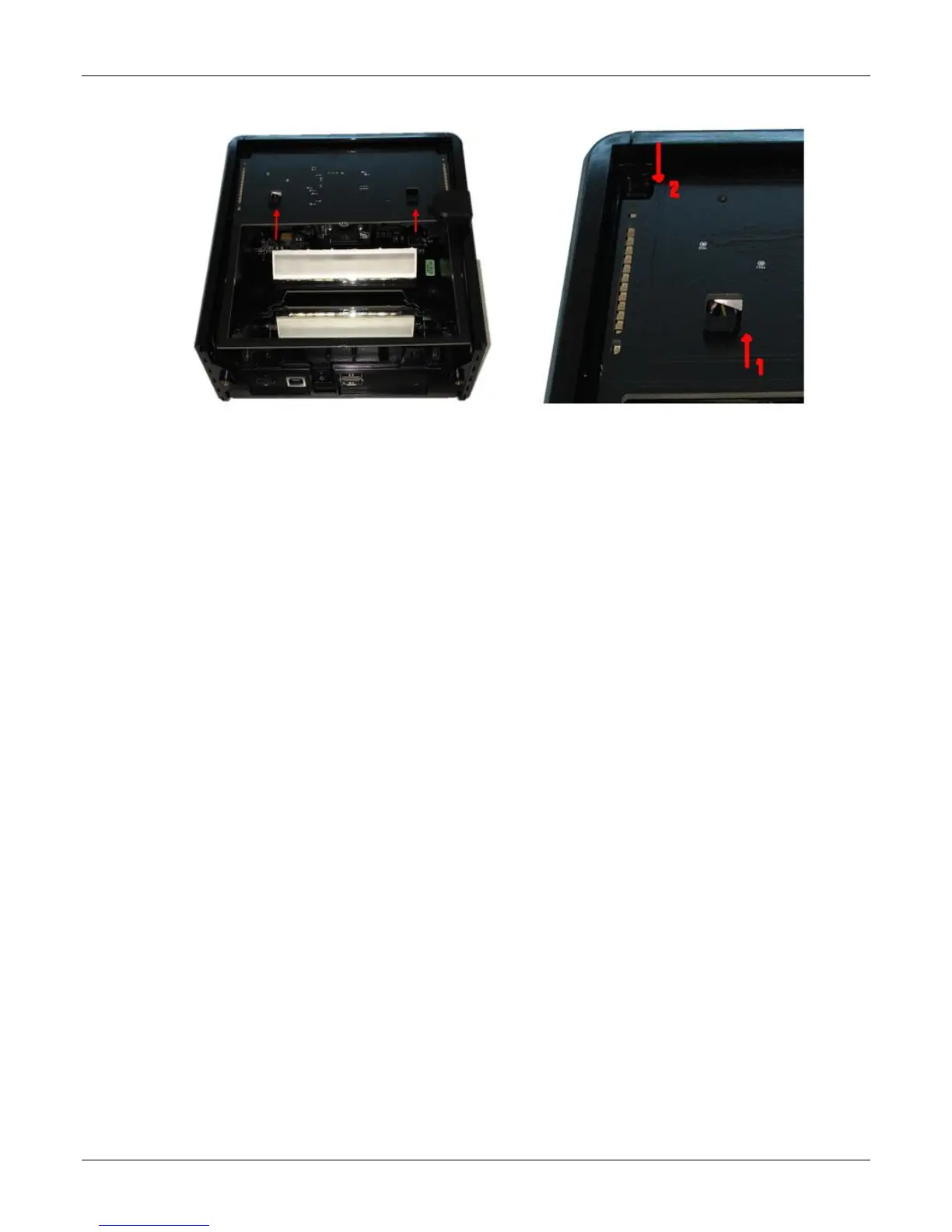

4. Align the front of the glass surround over the front of the reader and lower the rear of the glass
down to mate with the lower chassis. You should not need to use force.
NOTE: It is important that the internal components be free from dust or other contamination. If any
dust is present, use compressed air to remove it from the optical chamber.
5. Secure in place with the two screws.
