GEM-P9600 Installation Instructions
WI742E 2/04
!
Page 21
Configuring the GEM-RP2ASe2/GEM-K2AS and GEM-RP3DGTL/GEM-K3DGTL Keypads
Up to 7 GEM-RP2ASe2/GEM-K2AS and/or GEM-RP3DGTL/GEM-K3DGTL keypads may be connected to the panel
(Keypads 1–7). Each must be configured for a keypad address. In addition, the keypad may be configured to disable (a)
touchpad backlight; (b) LCD backlight; and (c) entry sounder. Keypads are configured by the proper selection of jump-
ers. Refer to the label on the circuit board insulation paper for jumper locations and a summary of settings. For the
GEM-RP4RFC/RP4C and GEM-K4RF/GEM-K4 keypads, see their respective installation instructions (listed on page 8).
KEYPAD ADDRESS
If more than one keypad is in-
stalled:
!
Each must be assigned a
unique address (that is, no two key-
pads may be numbered alike).
!
Keypads must be addressed
consecutively (that is, missing num-
bers are not permitted).
!
Only Keypad No. 1 may be used
for programming. (However, for
ease of programming, it is recom-
mended that a GEM-RP1CAe2/
GEM-K1CA be selected as Keypad
#1.)
Assign the keypad address number
by selecting Jumpers J1–3 in accor-
dance with the table at left.
*Note: (1) Keypads are factory
supplied with no jumpers installed
and as such are automatically con-
figured as Keypad No. 1. (2) Only
one keypad in the system may be
configured as Keypad No. 1, other-
wise none will function.
TOUCHPAD BACK LIGHT
Cut Jumper A to disable touch pad backlighting to conserve 11mA standby current.
LCD BACKLIGHT
Cut Jumper B to disable LCD backlighting.
DISABLE SOUNDER
Cut Jumper C to disable the sounder. (Do not disable in UL applications.)
NAPCO Security Systems, Inc.
333 Bayview Avenue, Amityville, New York 11701
For Sales and Repairs, call toll free: (800) 645-9445
For direct line to Technical Service, call toll free: (800) 645-9440
Internet: http://www.napcosecurity.com

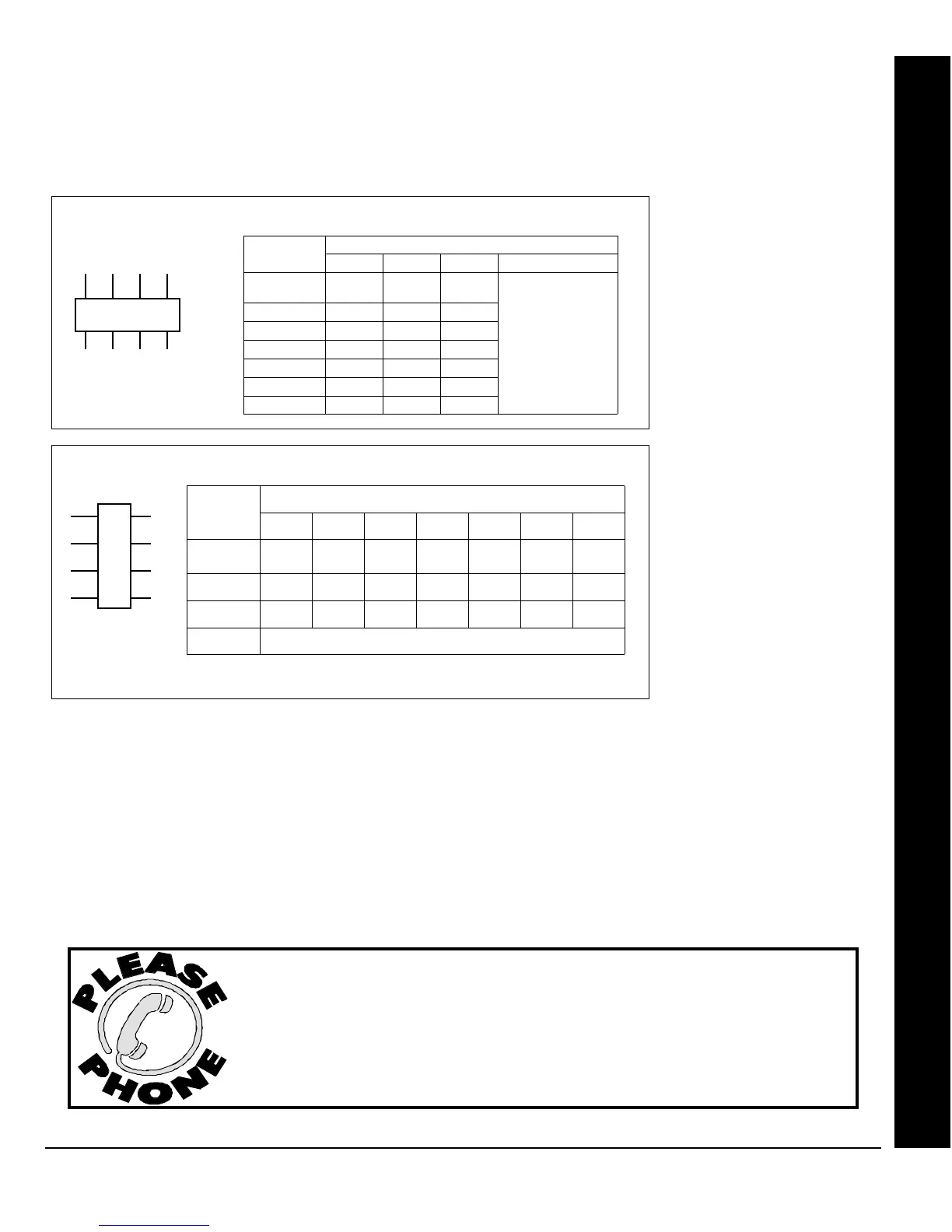

GEM-RP3DGTL KEYPAD
ADDRESS
NUMBER
KEYPAD NUMBER
1 2 3 4 5 6 7
1 OFF OR
ON
OFF ON OFF ON OFF ON
2 OFF ON ON OFF OFF ON ON
3 OFF OFF OFF ON ON ON ON
P MAY BE USED TO HOLD SPARE JUMPER
1
2
3
P
1
2
3
P
Jumper 1
GEM-RP2ASe2 KEYPAD
P 3 2 1
P 3 2 1
Jumper 1
KEYPAD
NUMBER
ADDRESS JUMPER
1 2 3 PARK
1 OFF OR
ON
OFF OFF
2 OFF ON OFF
3 ON ON OFF
4 OFF OFF ON
5 ON OFF ON
6 OFF ON ON
7 ON ON ON
MAY BE USED TO
HOLD SPARE
JUMPER
KEYPAD CONFIGURATION MODE
