BASIC ZONE CONFIGURATION

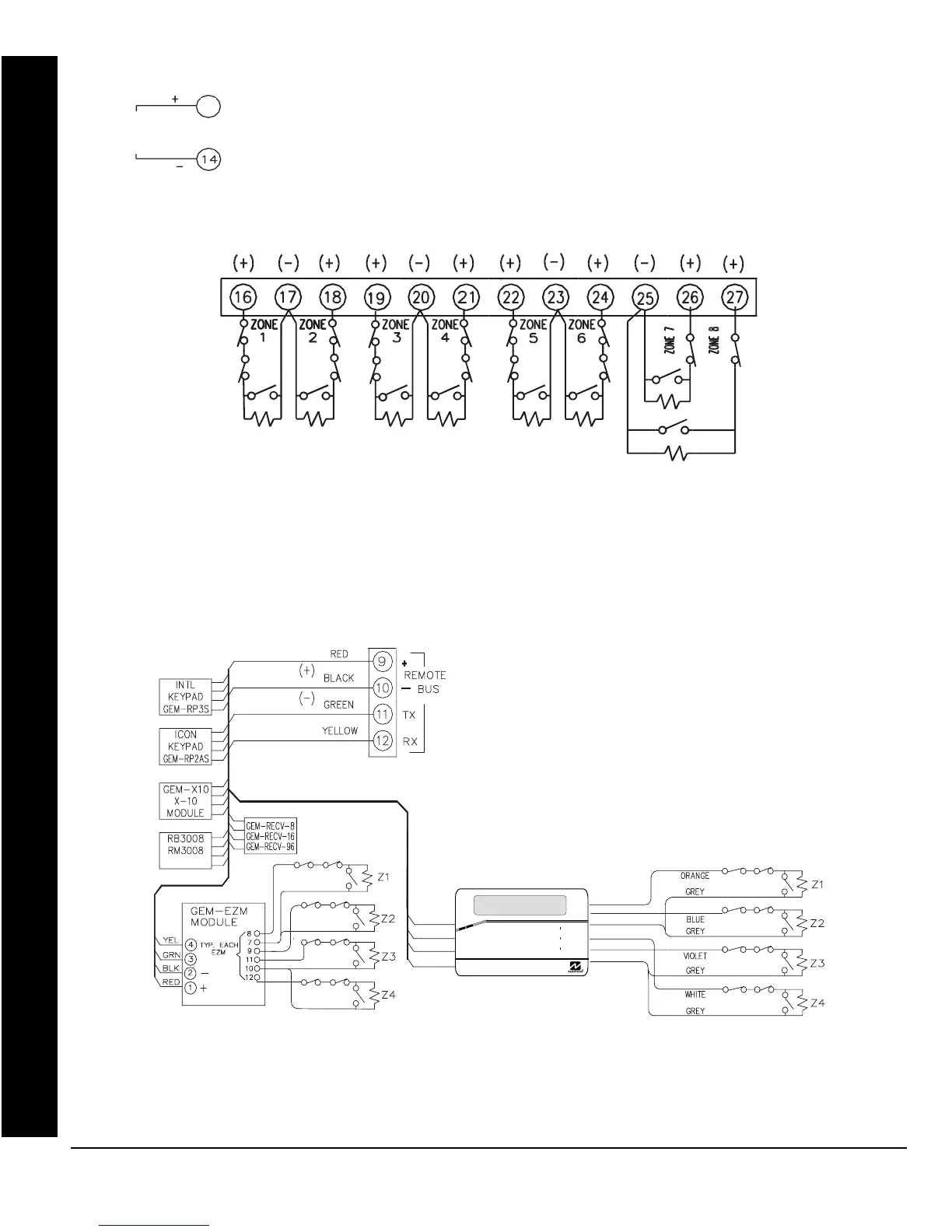

The basic zone configuration for the GEM-P9600 is 8 zones. Connect as shown above to terminals 16-27. Normally
Closed (N.C.) devices may be wired in series or Normally Open (N.O.) devices may be wired in parallel. Use the 2.2K
Ohm end-of-line (E.O.L.) resistor in each zone, if selected in programming (refer to the GEM-P9600 Programming In-
structions). Zones 1-8 can be selected for a “Fast Loop Response (10ms or 50 ms)” or a “Normal Loop Response (750
ms)”. Other zone options include Zone Type (Entry/Exit, Interior, 24 Hour Protection, Trouble and Fire), Instant, Chime,
Area Selection and Relay Output selection.
RESET OUTPUT
Reset Output can be activated depending on the programming options selected (see GEM-
P9600 Programming Instructions). Connect the device controlled by the programmable output
between terminal 15 (+) and terminal 14 (-).
15
RESET
OUTPUT
EXPANDED ZONE CONFIGURATION
The GEM-P9600 Control Panel may be expanded up to 96 zones. This may be accomplished by adding 88 zones to the
basic 8 zone configuration. Hardwired zone expanders include: GEM-EZM4 (4 additonal zones per module), GEM-
EZM8 (8 additional zones per module) and GEM-RP1CAe2 Keypad (4 additional zones per keypad). Wireless zone ex-
panders include: GEM-RECV8 (8 additional zones per receiver), GEM-RECV16 (16 additional zones per receiver) and
GEM-RECV96 (88 additional zones per receiver). Wireless transmitters include: GEM-TRANS2, GEM-KEYF, GEM-SMK,
GEM-PIR, GEM-DT and GEM-GB.
Additional Zones are numbered 9-96.
