using the "redirect" function. In this case,
frequencies above 85 Hz in the LFE signal
are redirected to the center channel output to
be reproduced by the center channel moni-
tor. The sensitivity of the LFE channel can
easily be set to 0 or +10 dB according to the
monitoring needs.
To provide a flat bass response in many
different acoustic environments, a ‘bass roll-
off’ switch is included, which makes adjust-
ments to the subwoofer response in three
2 dB steps possible. Two phase alignment
switches in the crossover allow compensa-
tion for the phase delay which occurs if the
subwoofer is placed away from the main
speakers or for other phase changes in the
loudspeaker system. Four settings are pro-
vided between 0° and -270°.
Options
Order code Description
1092-400 1/4” jack bypass switch
7000-415 RJ 11 Remote Power/
Overload LED
7000-416 RJ 11 Remote control
for bypass and +10 dB
LFE functions

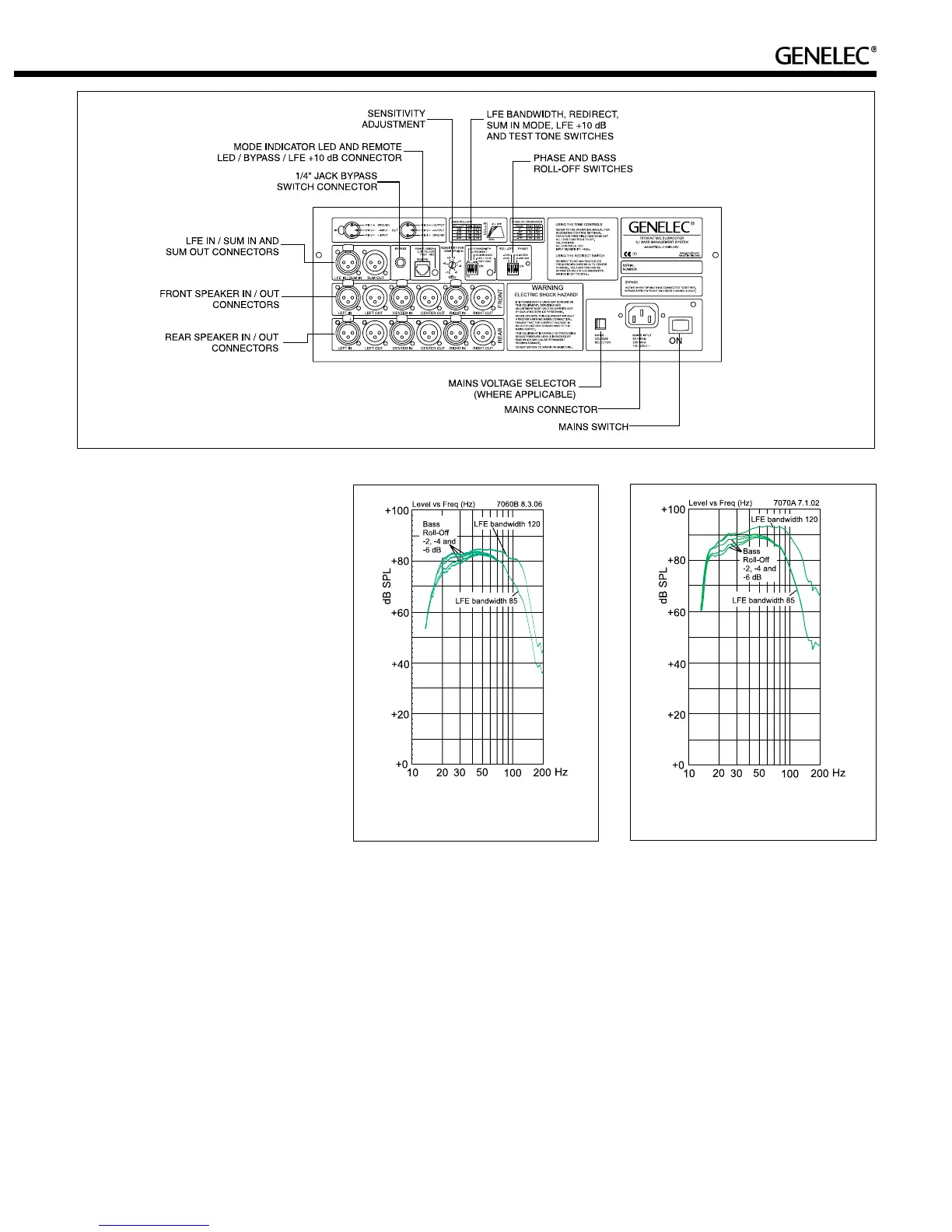

Figure 2: 7060B free field frequency response
for different bass roll-off and LFE bandwidth
settings.
Figure 3: 7070A (and 7071A) free field
frequency response for different bass roll-off
and LFE bandwidth settings.
Figure 1: The amplifier panel layout of a 7000 series subwoofer.
