KNOW YOUR PRESSURE WASHER
Read this owners manual and safety rules before operating your high pressure washer.
Compare the illustrations with your high pressure washer to familiarize yourself with the locations of various
controls and adjustments. Save this manual for future reference.
5
Adjustable Nozzle Extension Attach the adjustable
nozzle extension to the spray gun to provide high
pressure stream. The adjustable nozzle allows you to
adjust the spray pattern which, in turn, adjusts the force
of spray.
Automatic Cool Down System Cycles water
through pump when water reaches 140°-145°F. Warm
water will discharge from pump onto ground. This
system prevents internal pump damage.
Dual Element Air Filter Filter limits the amount of
dirt and dust that gets in the engine.
Gas Tank Fill tank with regular unleaded gasoline.
Always leave room for fuel expansion.
Goggles Always use the enclosed goggles or other
eye protection when running your pressure washer.
High Pressure Hose Connect one end to the water
pump and the other end to the spray gun.
High Pressure Outlet Connection for high pressure
hose.
Yellow Oil Fill Cap Fill engine with oil here. See
page 7 for oil recommendations.
Pressure Control Knob Varies the pressure of the
high pressure spray.
Pump Develops high pressure.
Recoil Starter Use for starting the engine manually.
Spray Gun Controls the application of water onto
cleaning surface with trigger device. Includes safety
latch.
Water Inlet Connect garden hose here.

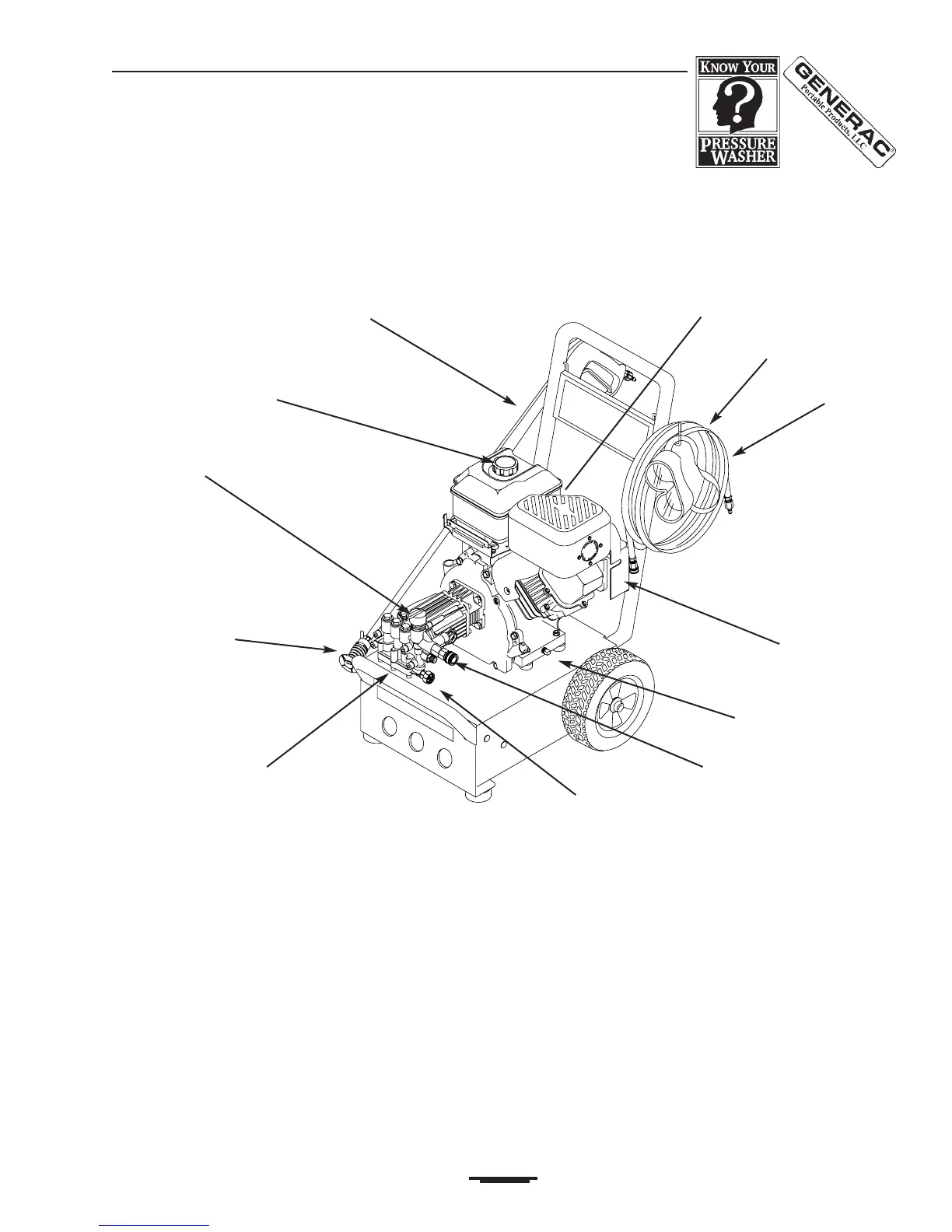

Spray Gun
Adjustable Nozzle Extension
High Pressure Hose
Recoil Starter
Goggles
Gas Tank
Water Inlet
Pressure Control Knob
Pump equipped with
Automatic Cool Down System
High Pressure Outlet
Dual Element Air Filter
Yellow Oil Fill Cap
Generac Portable Products 2300PSI High Pressure Washer
