Read entire owners manual before you attempt to
assemble or operate your new pressure washer. Your
new pressure washer has been assembled at the
factory with the exception of those parts left
unassembled for shipping purposes.
REMOVE PRESSURE WASHER
FROM CARTON
Remove parts box included with pressure
washer.
Slice two corners at guide handle end of carton
from top to bottom so the panel can be folded
down flat, then remove all packing material.
Roll pressure washer out of carton.
CARTON CONTENTS
Items in the carton include:
Main Unit
Manual Bag Contents
Manual
O-Ring Kit
Nozzle Cleaning Kit
StaBil® Brochure
Owner Registration Card
B&S Intek Engine Manual
Parts Box (which includes the following):
StaBil®
Engine Oil
Video
Wireform
Goggles
Spray Gun
Nozzle Extension
High Pressure Hose
Handle
Parts Bag (which includes the following):
2 carriage bolts
2 knobs
PREPARING THE PRESSURE
WASHER FOR USE
If you have any problems with the assembly of your
pressure washer or if parts are missing or damaged,
call the Pressure Washer Helpline at 1-800-270-1408.
To prepare your pressure washer for operation you
will need to perform these tasks:
Remove shipping cap on top of pump.
Attach the handle and attach the wire form that
holds the high pressure hose and spray gun.
Connect the high pressure hose to the spray gun
and the pump and connect water supply to the
pump.
Add oil to engine crankcase.
Add fuel to fuel tank.
Remove Shipping Cap
To prevent oil from leaking from the pump, a shipping
cap has been installed on the oil breather of the
pump.
You must remove the cap for your pressure washer to
operate properly (Figure 1).
Running unit with the shipping cap installed will
damage the pump and void your warranty.
Attach the Handle
Place the handle onto the handle supports
already connected to the main unit. Make sure
the holes in the handle align with the holes on
the handle supports. (Figure 2)

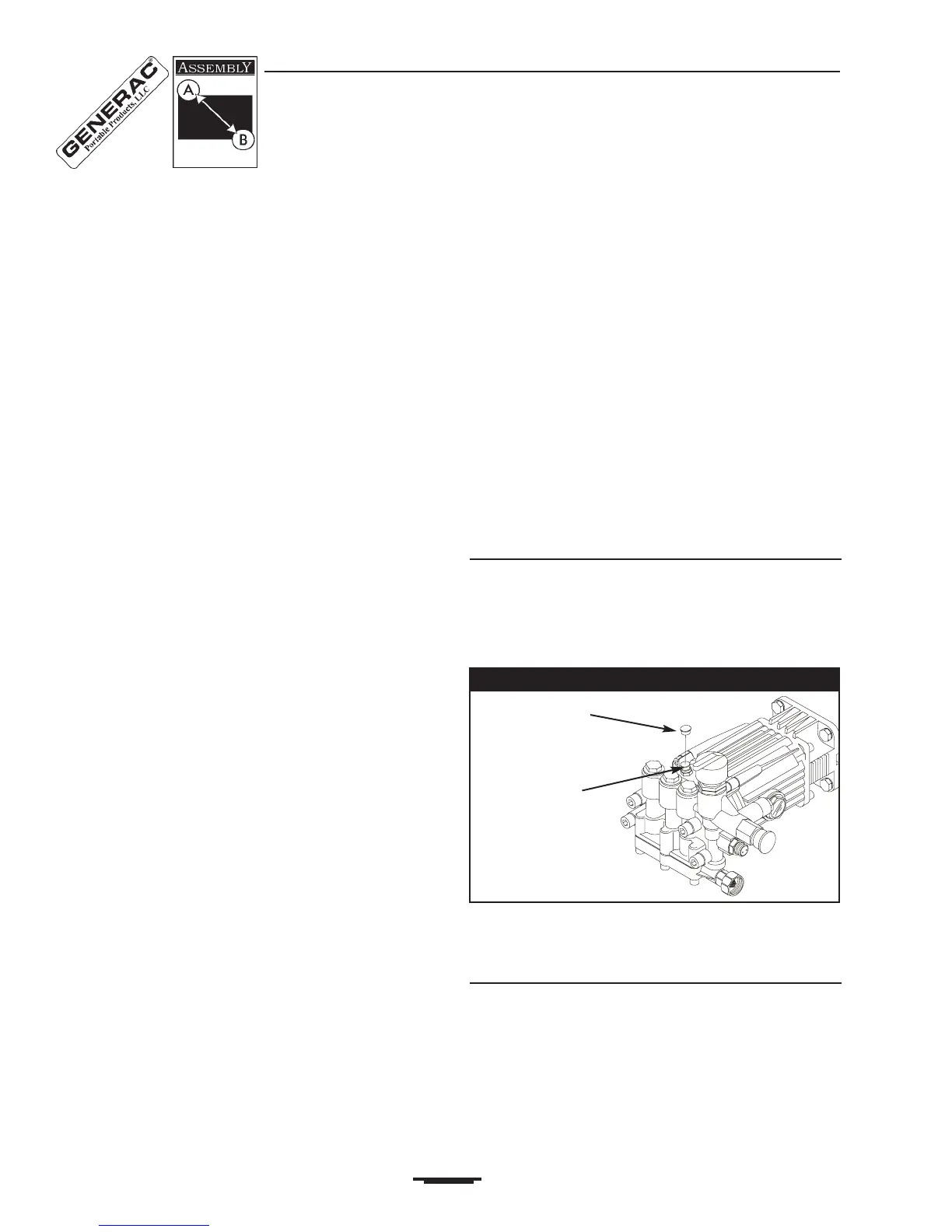

Figure 1 Remove shipping cap on top of pump.
Shipping Cap
Remove
shipping cap
from here.
Generac Portable Products 2300PSI High Pressure Washer
