MEGAFORCE 6500 Extended Life Generator
11
This receptacle powers 120/240 Volt AC, 60 Hz, single
phase loads requiring up to 3,600 watts of power at
30 Amps for 120 Volts; 6,500 watts of power (6.5 kW)
at 30 Amps for 240 Volts. The outlet is protected by a
30 Amp pushtoreset circuit breaker.
CAUTION: Although this outlet is rated for
30 Amps (up to 7,200 watts), the generator is
only rated for 6,500 watts. Powering loads that
exceed the wattage/amperage capacity of the
unit can damage it or cause serious injuries.
Loads of 240 Volts powered through this outlet
should not exceed 27 Amps current draw;
120 Volt loads should not exceed 30 Amps.
120 Volt AC, 30 Amp Locking
Receptacle
Use a NEMA L530 plug with this receptacle. Connect
a 3wire cord set rated for 125 Volt AC loads at
30 Amps to the plug (Figure 12).
Use this receptacle to operate 120 Volt AC, 60 Hz,
single phase loads requiring up to 3,600 watts
(3.6 kW) of power at 30 Amps. The outlet is protected
by a 30 Amp pushtoreset circuit breaker.
12 Volt DC, 10 Amp Receptacle
This receptacle (Figure 13) allows you to recharge a
12 Volt automotive or utility style storage battery with
the battery charge cables provided.
This receptacle can not recharge 6 Volt batteries and
can not be used to crank an engine having a
discharged battery. See Charging a Battery on
page 8 before attempting to recharge a battery. This
outlet is protected by a 10 Amp self resetting circuit
breaker.

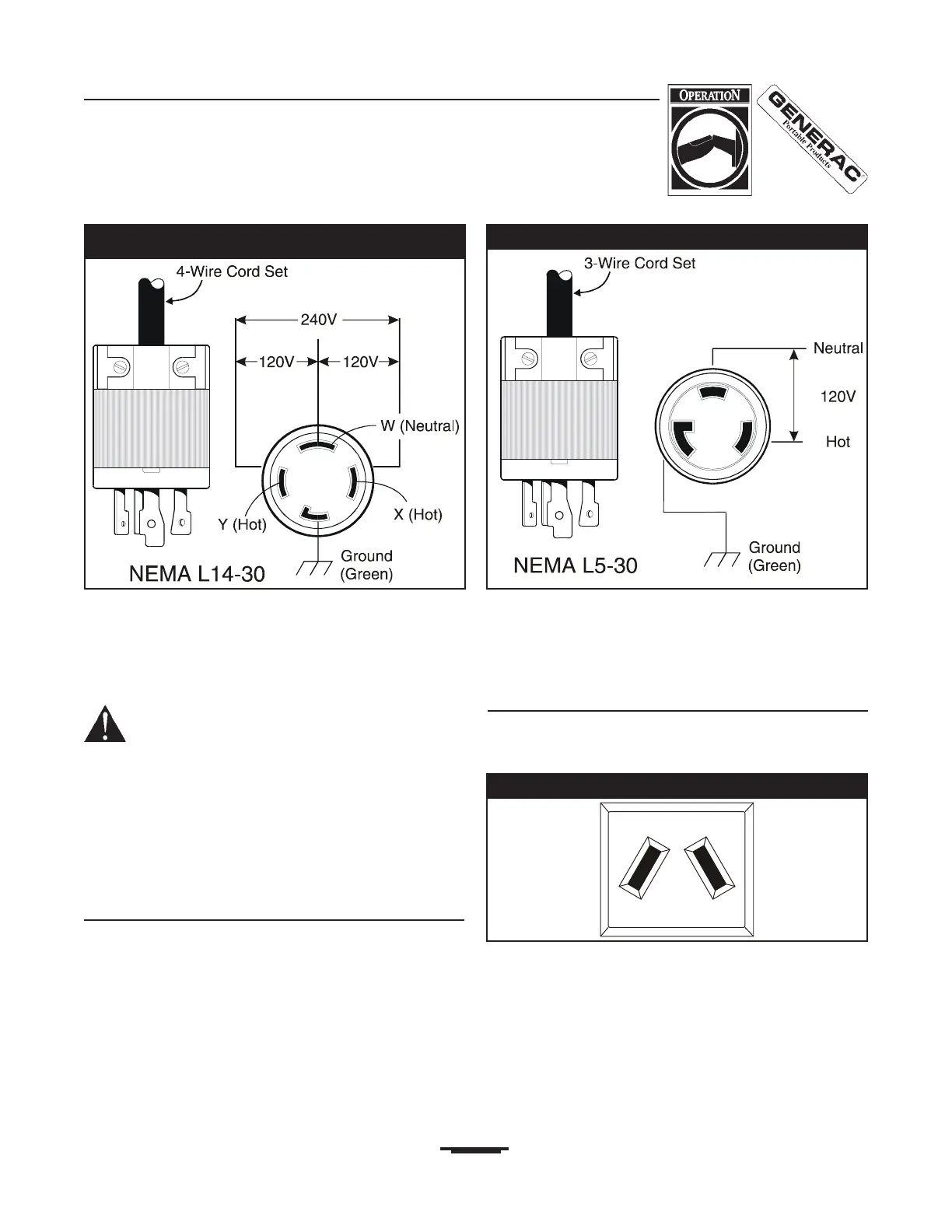

Figure 12 120 Volt AC, 30 Amp, Locking Receptacle
Figure 13 12 Volt DC, 10 Amp Receptacle
Figure 11 120/240 Volt AC, 30 Amp, Locking
Receptacle
