MEGAFORCE 6500 Extended Life Generator
20
Item Part # Qty. Description
1 F92570 1 PANEL, Control
2 23897 4 WASHER, #10 M5 Flat
3 49226 4 WASHER, M5 Lock
4 91526 4 SCREW, M5 - 0.8 x 12mm
5 87968 1 SWITCH, Idle Control
6 82881 4 WASHER, 7/16" Lock
7 43181 8 SCREW, M3 - 0.5 x 10mm
8 43182 8 WASHER, M3 Lock
9 66822 1 BRACKET, 12V Outlet & Ret.
10 75207A 2 CIRCUIT BREAKER, 30A
11 75207D 1 CIRCUIT BREAKER, 15A
12 23365 6 WASHER, #8 Shakeproof
13 68868 1 OUTLET, 120 Volt, 30 A
Locking
14 43437 1 OUTLET, 120V/240V, 30A
Locking
15 94373 1 RECEP, GFCI 15A
Item Part # Qty. Description
16 43108 6 WASHER, M4 Flat
17 22264 6 WASHER, #8 M4 Lock
18 51715 6 NUT, M4 - 0.7 Hex
19 64526 8 SCREW, #6 - 32 x 3/8"
20 83907 1 BOARD, System Control
21 64525 4 3/4" Hex Stand - Off
22 87692 1 CIRCUIT BREAKER, 12V,
10A (auto)
23 84335 1 ASSEMBLY, Wire Harness
24 84134 1 CONNECTION, Rubber
Grommet
25 B92069 1 BOX, Control Panel
26 84028 1 TRANSFORMER , Idle
Control
27 75475 6 SCREW, M4 - 0.7 x 10mm
28 77604 1 HOUR METER
29 51714 2 NUT, M3 - 0.5 Hex

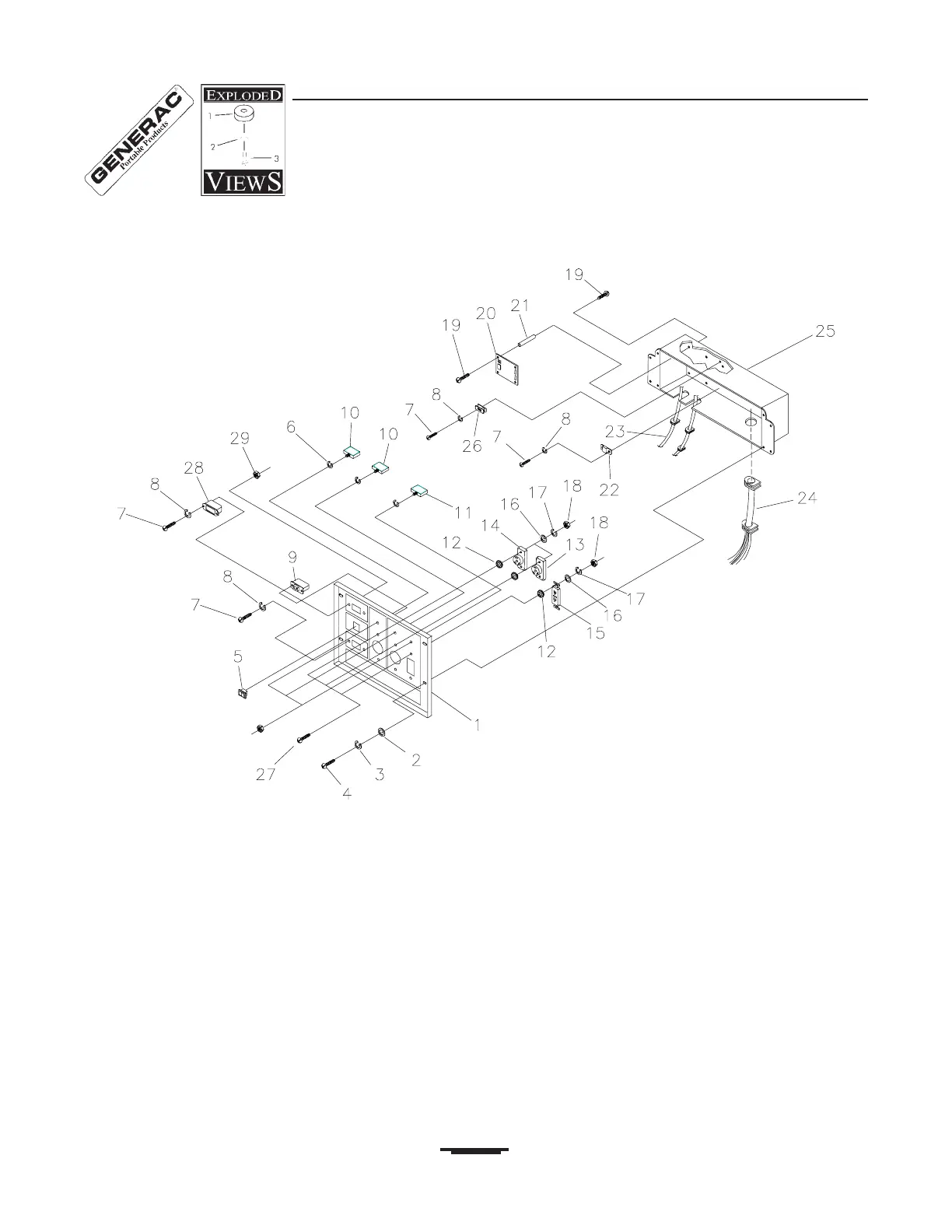

EXPLODED VIEW AND PARTS LIST CONTROL PANEL
