To install REbus wiring:
1. See Figure 4-9. Install REbus conductors to their
terminal blocks: RE+ to red (A), RE- to blue (B).
2. Install equipment grounding conductor to green ter-
minal block (C).
3. If required, route field wiring conductors through
the grommet wiring chase baffle (D).
NOTE: Do not route wires around the baffle.
4. At the PWRcell Inverter, install RE+ and RE- con-
ductors to any unused 30A REbus DC disconnect.
5. Secure equipment grounding conductor to the
PWRcell Inverter ground bar.

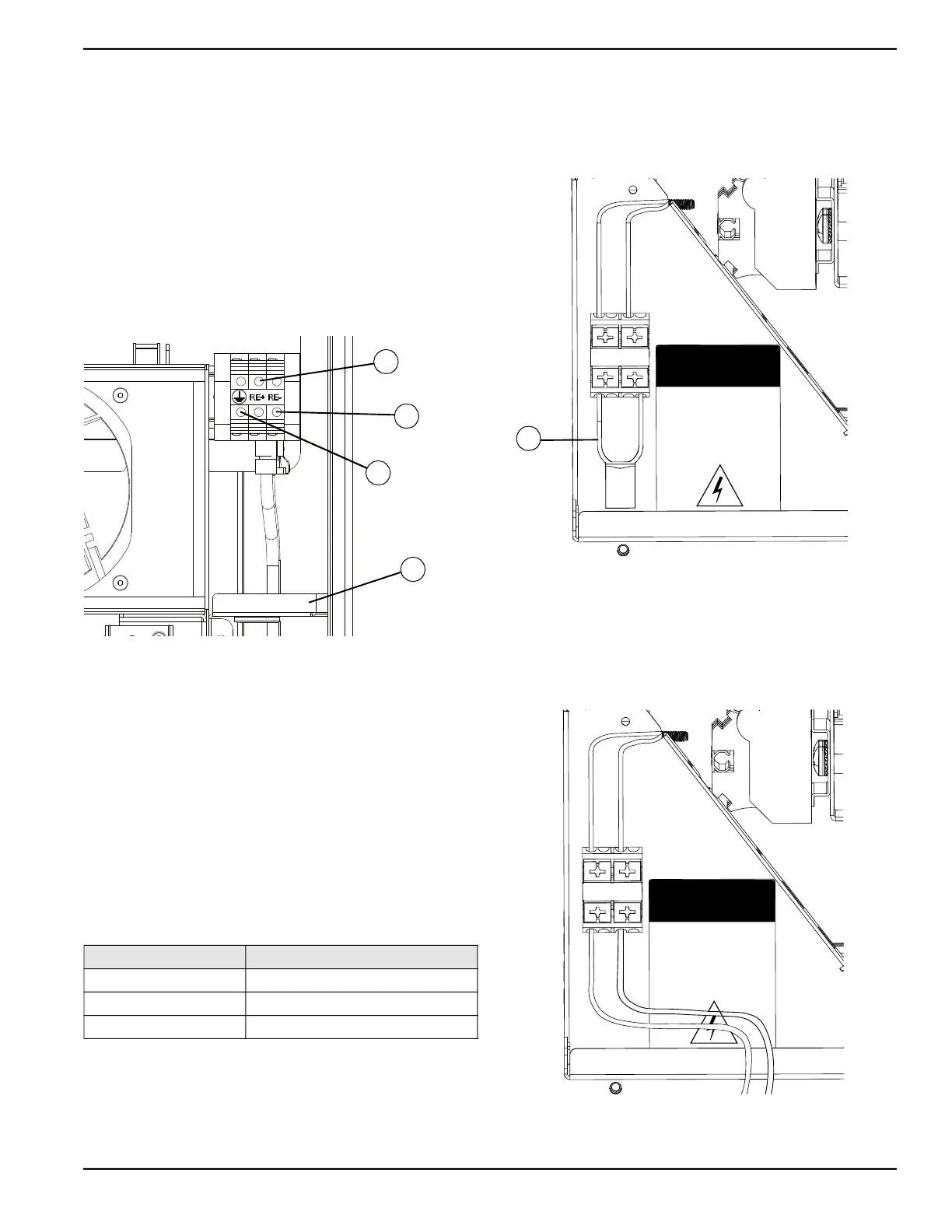

Figure 4-9. REbus Wiring
Note on DC Wiring and the NEC
Some electricians or installers may be unfamiliar with DC
wiring in a residential setting. Note the following:
• NEC 215.12(C)(2) for correct DC wiring coloring.
• NEC 210.5(C)(2) for identification of DC conduc-
tors carrying more than 50V.
Always adhere to applicable codes when marking and
installing DC conductors.
See
Table 4-2. For all REbus DC wiring observe the fol-
lowing coloring convention:
NOTE: Mark or flag all conductors as appropriate.
Remote Shutdown Switch Connec-
tions (If equipped)
NOTE: See Figure 4-10. The STOP terminals ship with
a 14 AWG jumper (A) installed. Remove this jumper
before installing an external shutdown switch.
Figure 4-10. Remove Jumper
See Figure 4-11. Connect the wiring to the external shut-
down switch (field supplied) to battery STOP terminals.
The STOP Terminals accept 20 to 12 AWG, solid or
stranded wire. As shown, 14 AWG THWN (600V) wiring
can be used and run in the same conduit as the REbus
wires.
Figure 4-11. Connect To Remote Shutdown Switch
Table 4-2. REbus DC Wiring Coloring Convention
Wire Color
REbus + (RE+) Red
REbus - (RE-) Black or Blue with Black Sleeving
Ground (GND) Green
A
C
B
D
009928
+ STOP -
WARNING:
POWER SEARCH
TURN BATTERY
DISCONNECT “OFF”
AND DE-ENERGIZE
REBUS BEFORE
TOUCHING
TERMINALS
REMOVE
FOR
REMOTE
SHUTDOWN
SWITCH
012362
A
+ STOP -
WARNING:
POWER SEARCH
TURN BATTERY
DISCONNECT “OFF”
AND DE-ENERGIZE
REBUS BEFORE
TOUCHING
TERMINALS
012363
