Installing PWRcell Battery
Installation Manual for Generac PWRcell Battery 21
Connecting Blackstart Battery
See Figure 4-14. Connect blackstart battery lead to posi-
tive battery terminal (E).
NOTE: The negative lead is already connected to termi-
nal (F).
NOTE: Do not leave blackstart battery connected if
PWRcell Battery is not connected to REbus. Blackstart
battery will enter a sleep mode and discharge to support
the unit.

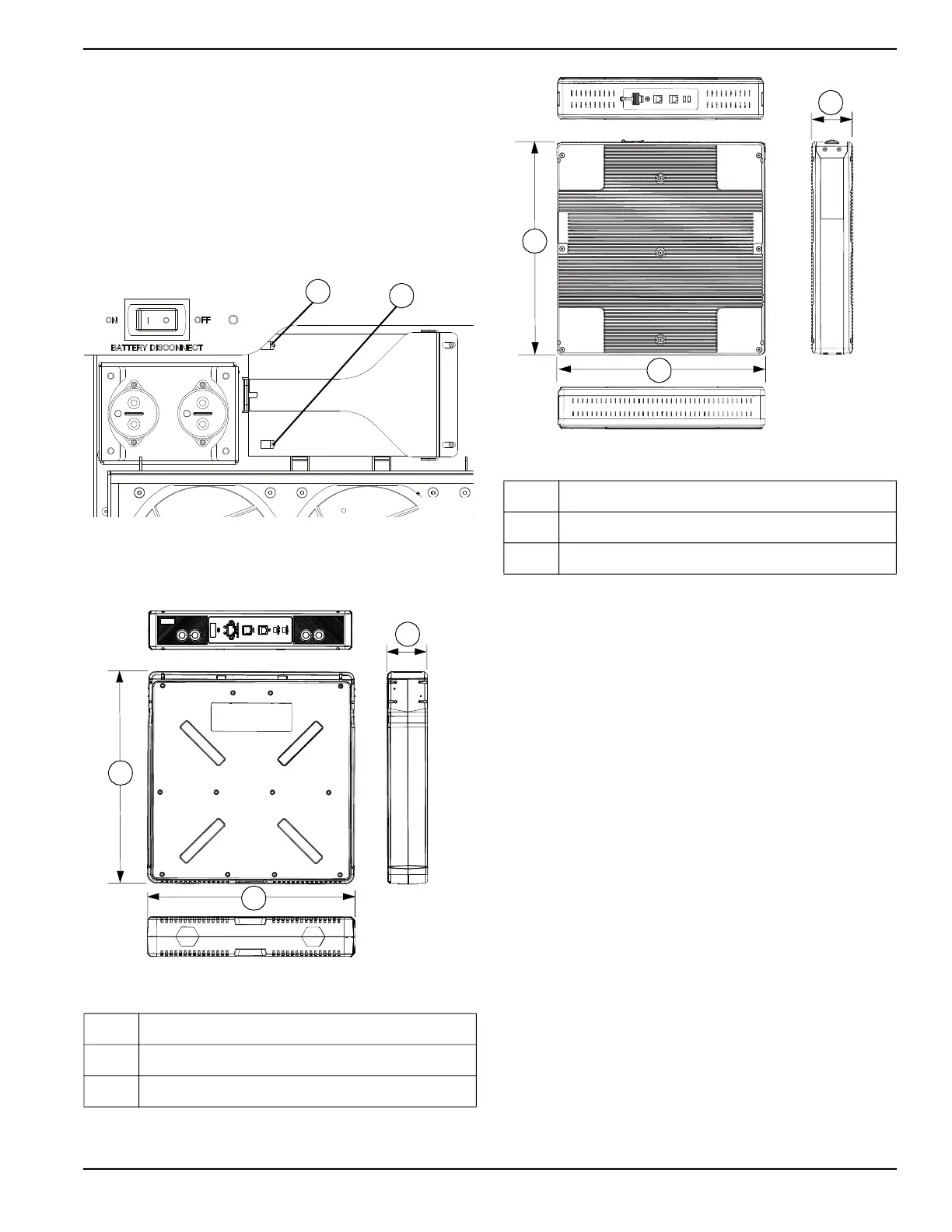

Figure 4-14. Blackstart Battery Connections
Module Dimensions
Figure 4-15. DCB Module Outline Dimensions
Figure 4-16. EX Module Outline Dimensions
A 17.72 ± 0.08 in (450 mm ± 2)
B 3.31 ± 0.08 in (84 mm ± 2)
C 17.32 ± 0.08 in (440 mm ± 2)
F
009928
E
011292
B
C
A
A 17.72 ± 0.08 in (450 mm ± 2)
B 3.46 ± 0.08 in (88 mm ± 2)
C 17.32 ± 0.08 in (440 mm ± 2)
011158
B
C
A
