Installing PWRcell Inverter
12 Installation Manual for Generac PWRcell Inverter
Mounting the Inverter
1. Verify mounting location adheres to the following
requirements:
• Location must meet all PWRcell inverter
requirements listed in Section 3 of this manual.
See Location and Compliance for more
information.
• Inverter must be mounted upright on a vertical wall.
• Never obstruct intake or exhaust vents.
• Never allow water to enter intake or exhaust vents.
• Observe all mounting clearances. See PWRcell
Inverter Dimensions and Mounting Clearances.
2. Secure mounting bracket mounting surface
through mounting holes.
• Fasteners must adequately secure the 62.7 lbs
(28.4 kg) inverter weight to the wall.
• Fasteners must be suitable for the mounting
surface.
• Fasteners must engage at least two studs or other
structural members.
• Mounting bracket has clearance holes for 1/4 in
fasteners with slots to accommodate different stud
spacings.

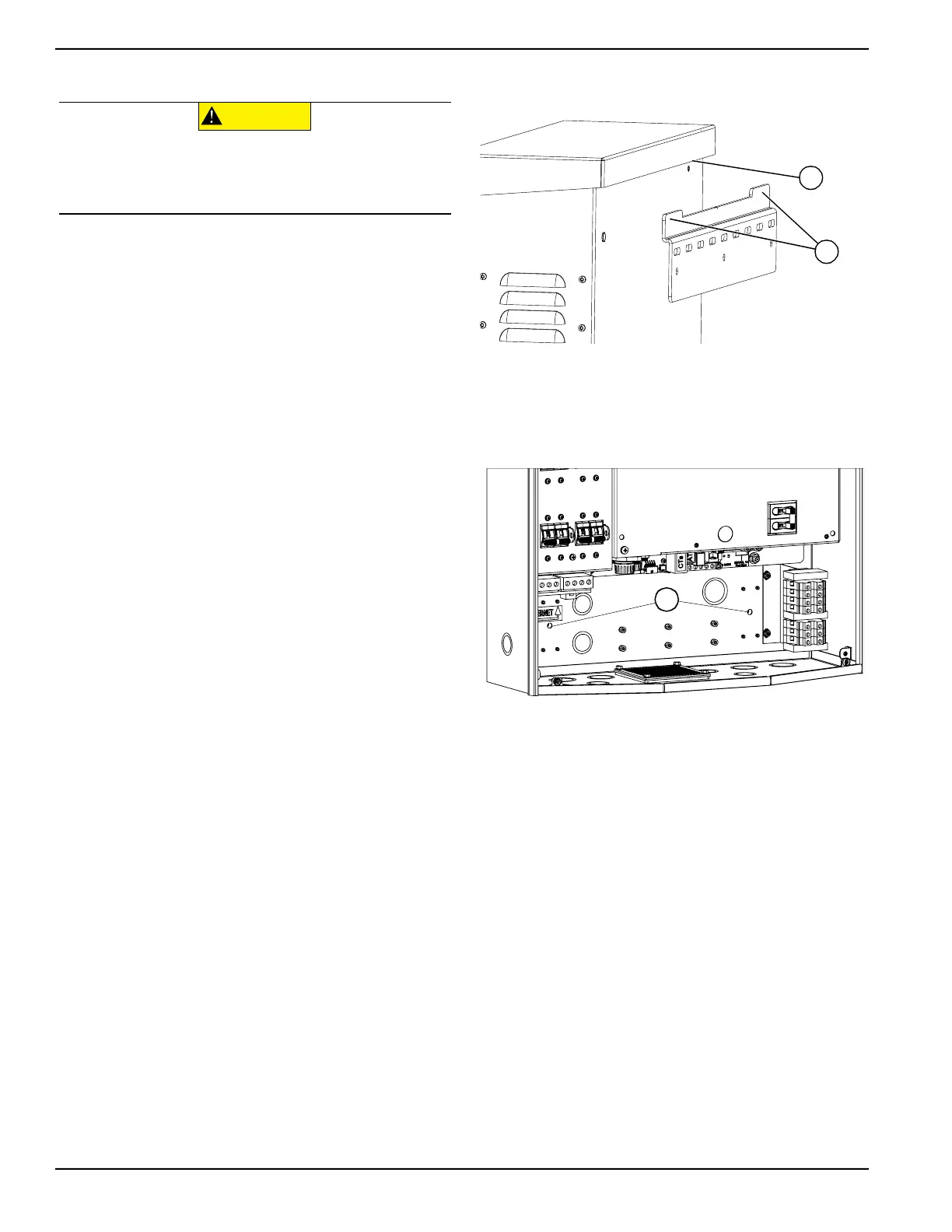

3. See Figure 4-3. Insert mounting bracket tabs (A)
into inverter body slot (B).
NOTE: Figure 4-3 is for illustration purposes only.
Figure 4-3. Mounting Inverter onto Bracket
4. See Figure 4-4. Secure the bottom of the inverter
to wall with two fasteners through mounting holes
(C). Holes are spaced at 11 1/4 in from each other.
Use anchors or blocking as needed.
Figure 4-4. Mounting Holes
(000641a)
CAUTION
Equipment damage. Mount inverter to a strong, stable surface.
Never mount to drywall, plaster, or other non-structural wall
treatments. Failure to mount inverter to a strong, stable surface
could result in equipment or property damage.
A
B
009991
C
009992
