Electrical Connections
Installation Manual for Generac PWRCell Inverter 13
Section 5: Electrical Connections
PWRcell Inverter Wiring Compartment

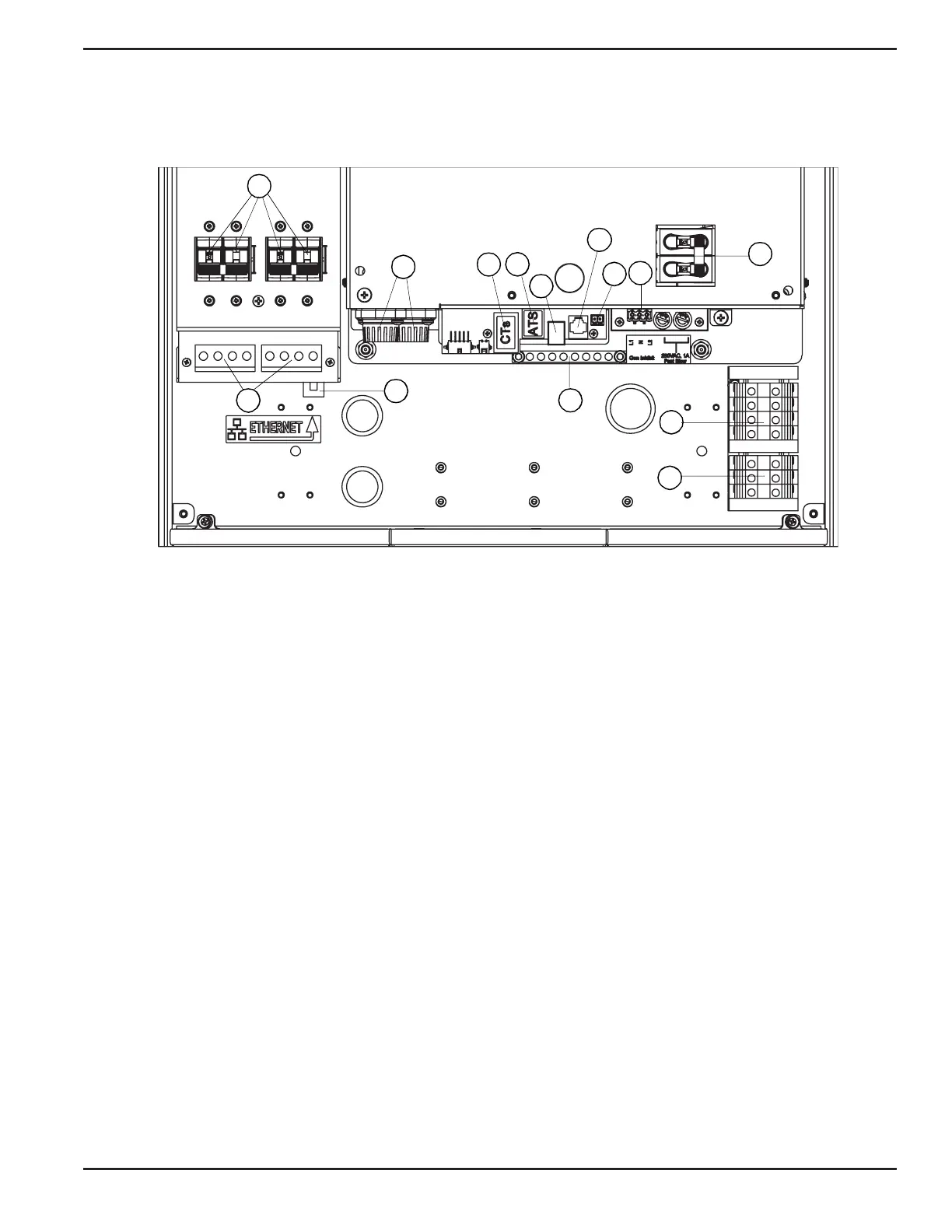

Figure 5-1. PWRcell Inverter Wiring Compartment
A PWRcell DC Disconnects H Authorized Generac Personnel Only
B REbus Bi-directional DC Terminals I STOP Terminals
C Internet Connection J Protected Loads Disconnect
D DC Main Fuses K AC Grid Connection Terminals
E Current Transformers (CTs) Accessory Ports L Protected Loads Terminals
F Automatic Transfer Switches (ATS) Accessory Port M Grounding Bar
G REbus Beacon Port N RGM PWR Gen Inhibit
B
C
D
M
L
K
J
I
H
G
F
E
A
011235
N
