Page 3
KCD-17, 19, 21 & 23” Series

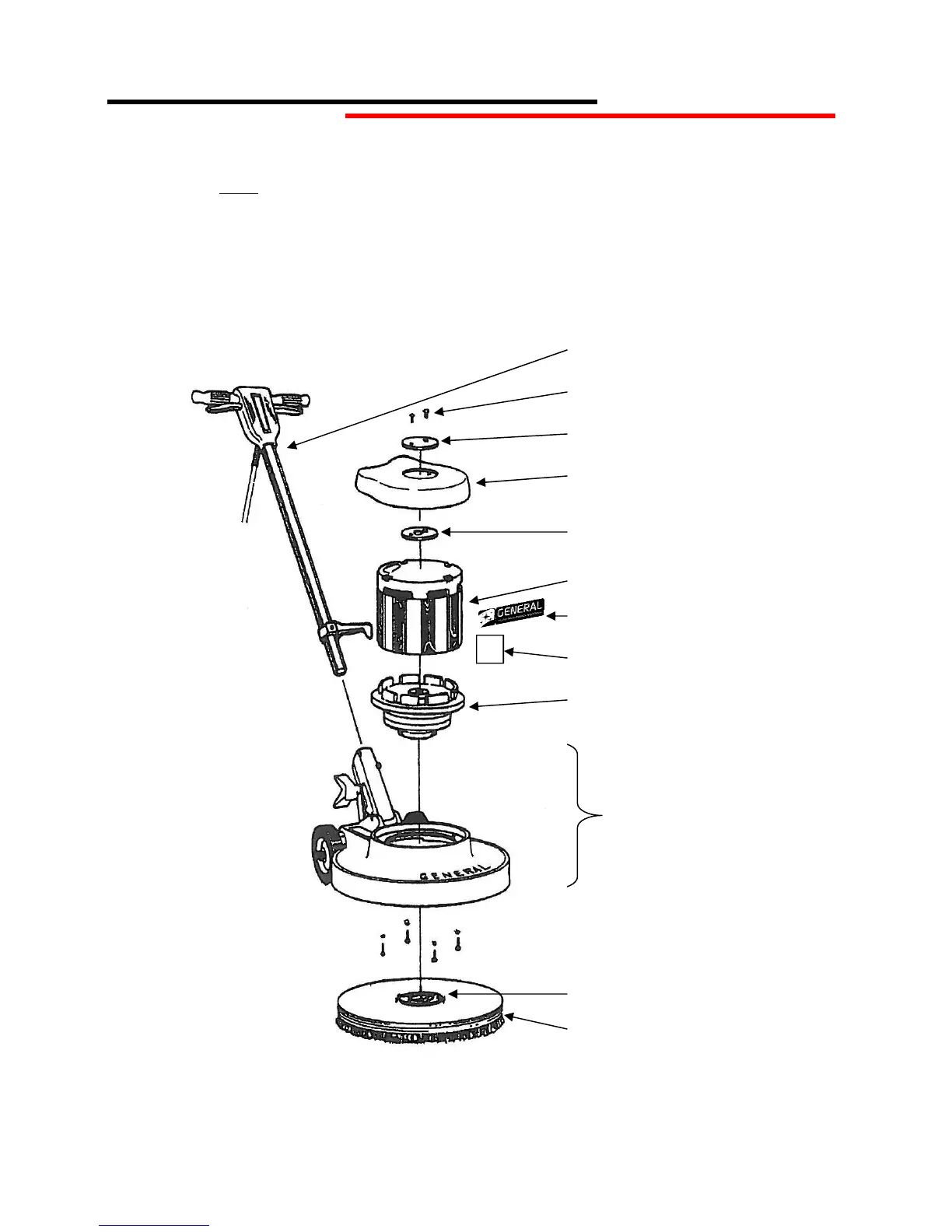

MACHINE ASSEMBLY
145103 Medallion
205006 1 ½ HP Motor, w/ Gear Box
500022 Handle Assembly, w/Cable
120529 Canopy
201743 Screw
131330 Gear Box
Note: Pad drivers and brushes sold separately.
701225 Clutch Plate
310016 17” Pad Driver w/Clutch Plate
310018 19” Pad Driver w/Clutch Plate
310020 21” Pad Driver w/Clutch Plate
310022 23” Pad Driver w/Clutch Plate
120535 Gasket
See Page 5 & 6
145119 Decal, Logo
145125 Decal, Warning
W
THIS KCD-SERIES DRAWING AND PARTS LIST IS BROKEN DOWN IN SUB ASSEMBLIES FOR
EASY REFERANCE. AT THE RIGHT ARE SHOWN ALL THE SUB ASSEMBLIES AND CERTAIN
PARTS THAT ARE NOT SHOWN ON OTHER DRAWINGS. WHEN ORDERING PARTS, ALWAYS
USE PART NUMBERS—DO NOT USE REFERENCE NUMBERS! GIVE MODEL NUMBER, SERIAL
NUMBER AND PART NUMBER WHEN ORDERING. THE SERIAL NUMBER AND MODEL NUMBER
WILL BE FOUND ON THE TOP OF THE APRON BY THE RIGHT WHEEL.
