Page 8
KCD-17, 19, 21 & 23” Series

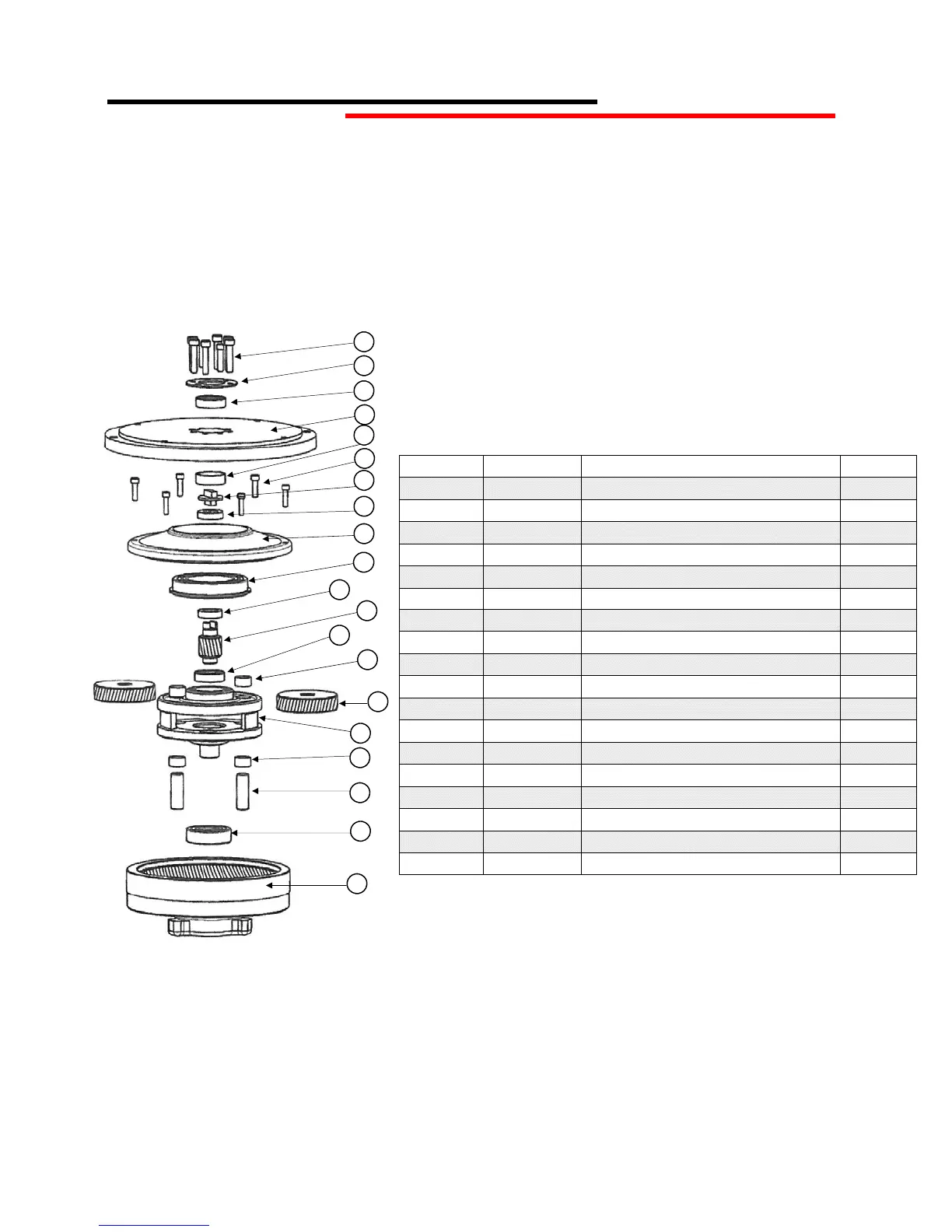

GEARBOX ASSEMBLY
IMPERIAL ELECTRIC MOTOR ONLY.
3 PLANET GEARBOX
INNOVATIVE CLEANING EQUIPMENT…..ENGINEERED TO LAST
1
9
8
5
16
7
6
3
2
4
15
12
10
14
13
12
11
3
3
17
Reference# PartNumber Description Required
1 135459 Screw,Cap 6
2 135458 RetainerPlate 1
3 135452 BallBearing 3
4 135401 EndShield 1
5 135456 Spacer 1
6 135451 Screw,HousingCover 6
7 135373 Coupling 1
8 135460 RetainerShaft 1
9 135444 GearBoxCover 1
10 135455 BallBearingwithSpanRing 1
11 135485 HelicalPinion 1
12 135453 NeedleBearing 6
13 135448 HelicalGear 3
14 135466 PlanetCage,3Planet 1
15 135339 IdlerShaft 3
16 135454 BallBearing 1
17 135450 GearBoxHousing 1
131330 GearBoxAssembly,3PlanetComplete Box
