Page 6

KCD-17, 19, 21 & 23” Series

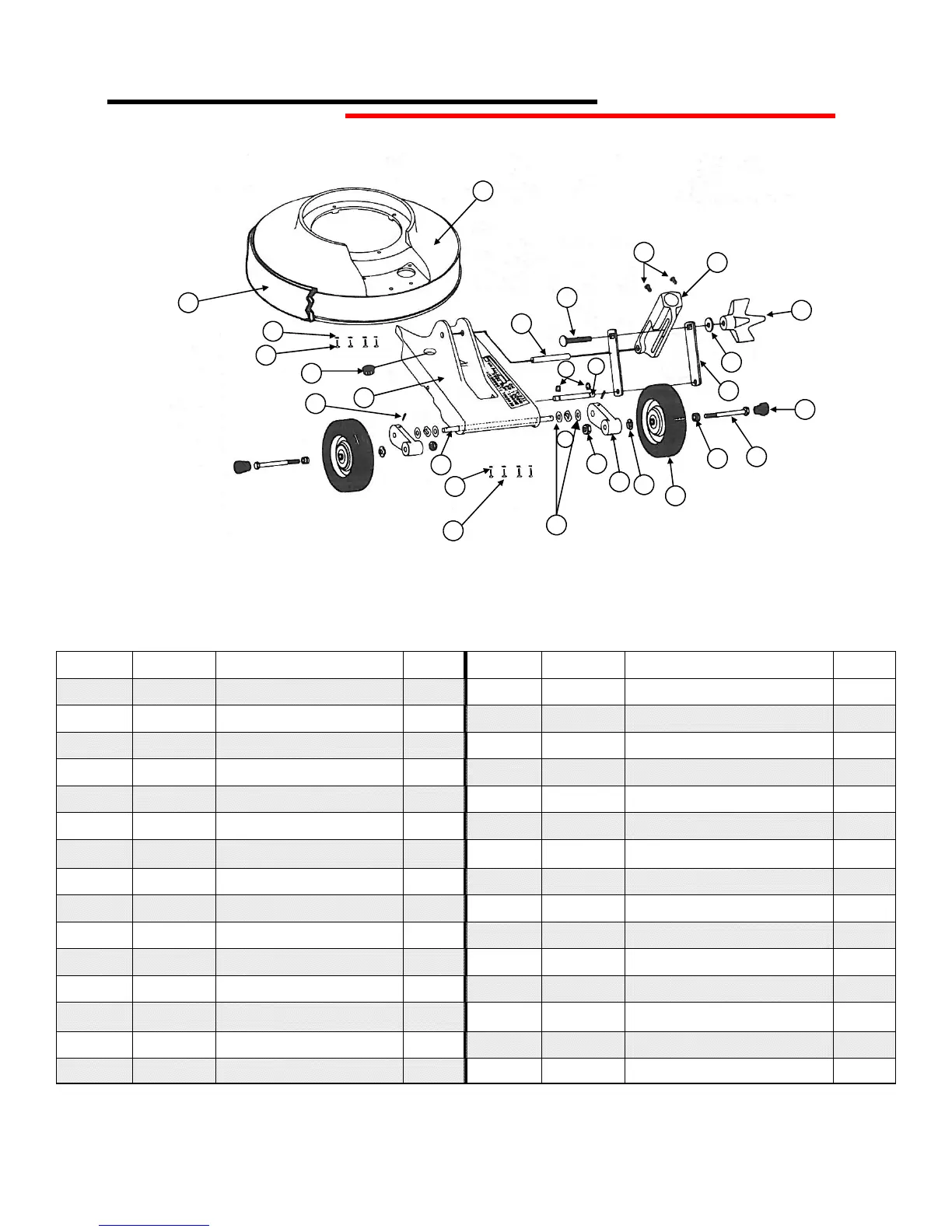

23” LOWER MACHINE ASSEMBLY

1

2

3

4

5

6

7

8

9

10

12

11

13

16

17

18

14

15

19

20

21

22

23

24

25

26

27

28

Reference# PartNumber Description Required Reference# PartNumber Description Required

1 505127 Knob,HandleAdaptorLarge 1 16 135517 Pin,PivotShaft 2

2 505131 Washer,HandleAdaptor 1 17 180510 Carriage,Polished 1

3 160532 HandleAdaptorLink 2 18 145050 Plug,BlackApron5/16" 1

4 125049 Tip,RubberWheelAxle 2

18 145004 Plug,ChromeApron7/8" 1

5 125700 Axle,Wheel 2 19 201550 Bolt,MotorMounting 4

6 125047 Spacer,WheelAxle 2

20 201430 Washer,LockingMotorMounting 4

7 165516 Wheel,Non‐MarkingRed6" 2 21 221000 Bumper,23"White 1

8 130509 Washer,TensionWheelAxle 2 22 220500 Apron,23"Polishedw/oCarriage 1

9 165517 PivotArm 2 23 160514 PivotPin,HandleAdaptor 1

10 125048 Nut,Wheel 2

24 160513 SnapRing 2

11 135521 Washer,NylonPivotShaft 2 25 160512 PivotPin,HandleAdaptorLink 1

12 135520 Washer,TensionPivotShaft 1 26 160533 Screw,HandleKnobLarge 1

13 201415 Washer,CarriageAssembly 4 27 101510 Screw,SetHandleAdaptor 2

14 201462 Bolt,MountingCarriage 4

28 160530 HandleAdaptor,KCD 1

15 165518 PivotShaft,Wheel 1    
