KCD-17, 19, 21 & 23” Series

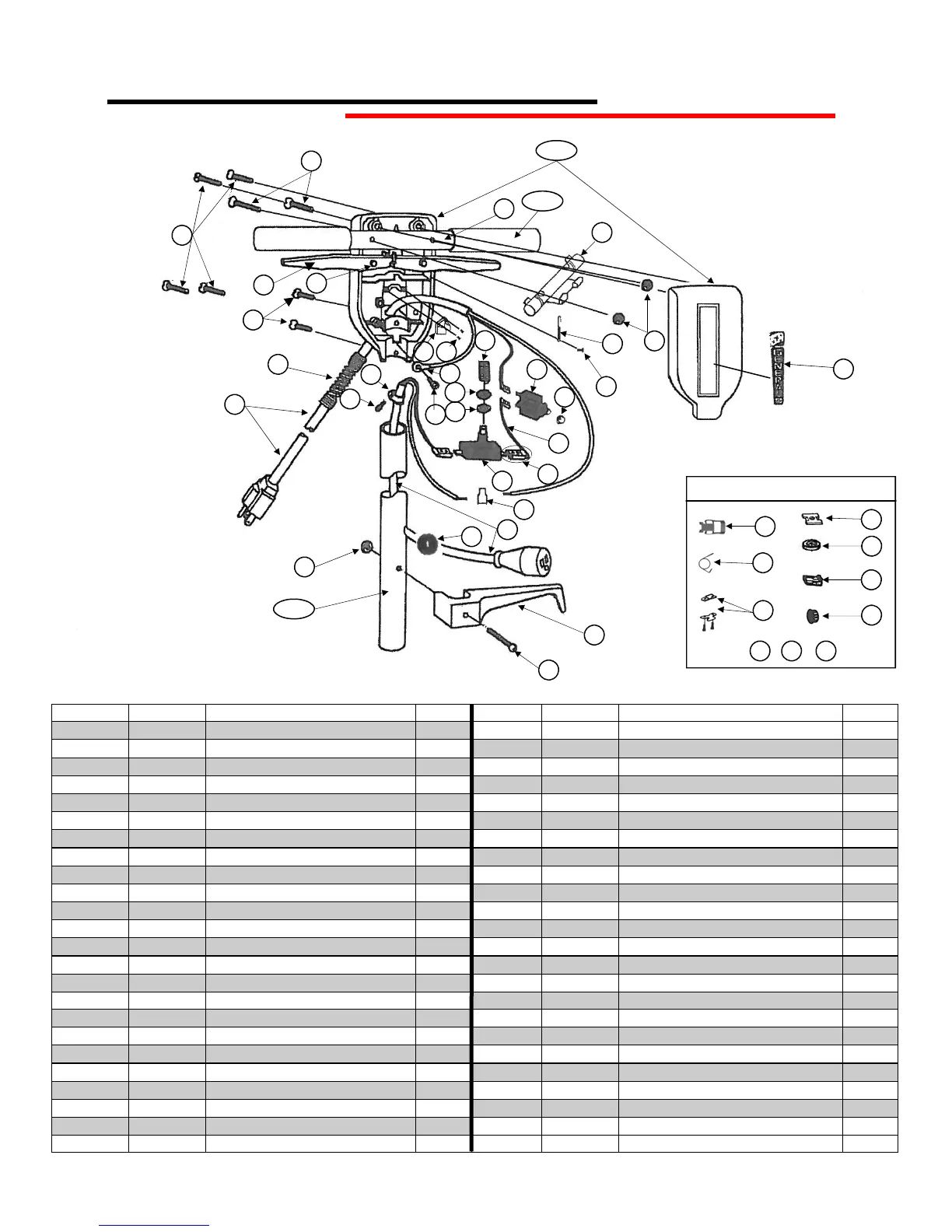

HANDLE ASSEMBLY
Pre-5/2013 Old Parts
1,A
2
3,B
4
5
6
8
7
109
16
12
11
14
15
13
17
19
23
18
22
21
20
24
26,I
27
25
29
30
28
31
32
33
34
36
G
F
D
E
J
H
C
A
B
I
35
Reference# PartNumber Description Required Reference# PartNumber Description Required
1 501044 Switchbox,FrontandBackPolished 1 25 114280 Screw,CableHook 1
2 501028 HandleBar 1
26 501080 HandleTube,Chrome,SafetySwitchBox 1
3 505188 Grip,HandleRed 2 27 501054 Nut,LockwithNylonInsert 1
4 505185 Lever,SafetyRed 1
28 505804 Screw,StrainRelief 1
5 505128 Decal,SwitchboxNameplate 1 29 505146 StrainRelief 1
6 501054 Nut,LockwithNylonInsert 2
30 605033 Cable,HeavyDuty50'Red 1
7 505182 Spring,SafetySwitch 1 31 505110 StrainRelief,CableSpring 1
8 201600 Screw,Spring 1
32 505412 Screw,SwitchboxHandleTube 2
9 505189 StrainRelief,Cable 1 33 501027 PivotPin,Lever 2
10 505190 Screw,StrainReliefCable 2
34 501524 Lever,SwitchRed 2
11 505166 Terminal,RingTypeInsulated 1 35 505118 Screw,Switchbox 4
12 201600 Screw,Ground 1
36 142800 Screw,HandleBar 2
13 505162 Spring,Switch 1 A 500044 Switchbox,FrontandBackPolished 1
14 505172 Nut,Switchbrass 1
B 505004 Grip,HandleRed 2
15 505173 Washer,Switch 1 C 505174 Lever,SafetyMetal 1
16 505201 CircuitBreaker 1
D 505175 Spring,SafetySwitch 1
17 505204 Boot,ClearCircuitBreaker 1 E 505176 Clamp,Cable 1
18 505550 Wire,HarnessAssemblySwitchbox 1
F 505169 Bracket,Switch 1
19 505203 Terminal,InsulatedFemaleRightAngle 4 G 505178 Washer,SwitchLower 1
20 505170 Switch 1
H 505161 Insulator,CoverforTerminal 2
21 505168 CrimpConnector,Insulated 1 I 501067 HandleTube,Chromed 1
22 201227 Grommet,RubberHandleTube 1
J 505193 Plug,Switchbox 1
23 505160 Wire,TubeAssemblyBlack 1500022 HandleAssembly,Completew/Cable Carton
24 501071 CableHook 1
To Next Page
