General KCD series User Manual

Page 7
KCD-17, 19, 21 & 23” Series

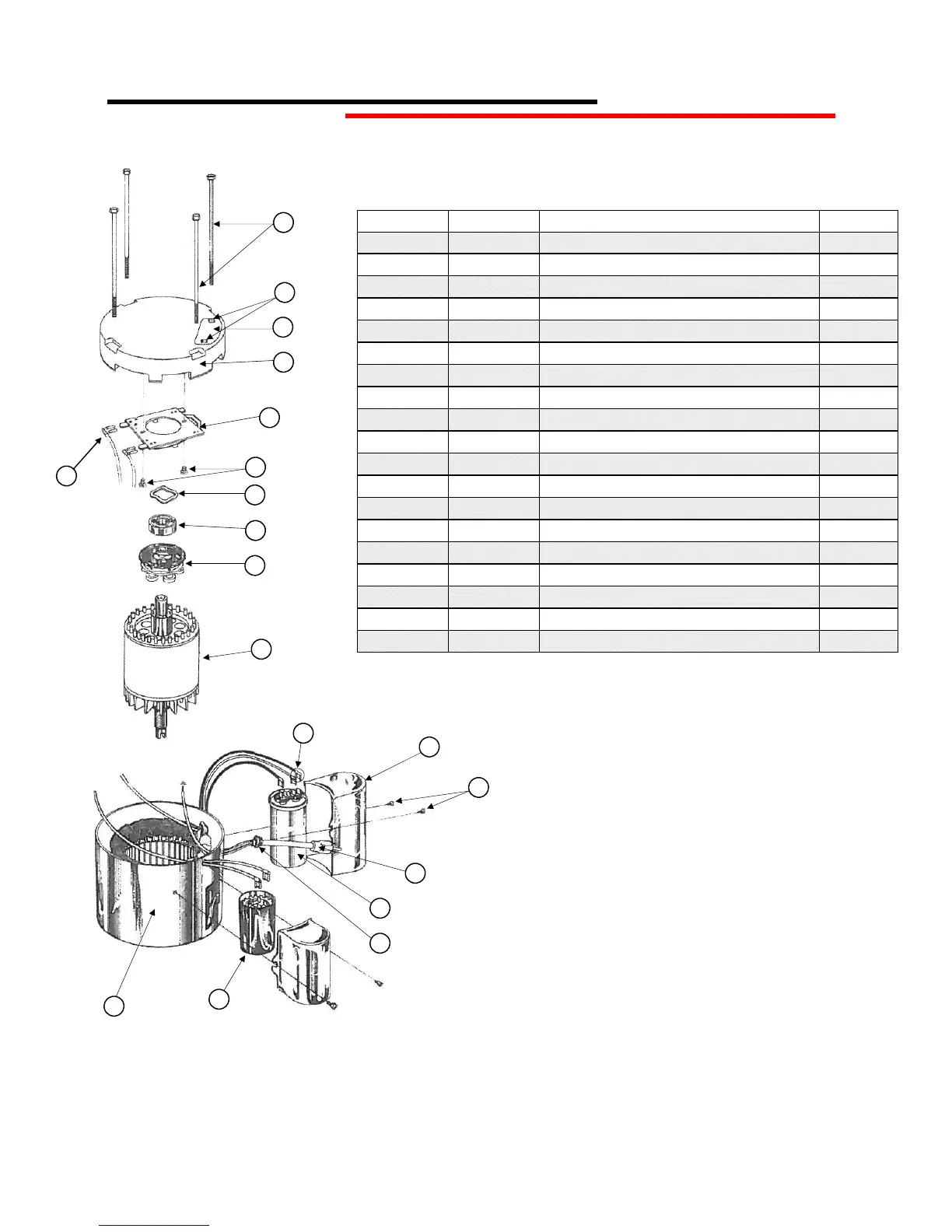

1 ½ HP MOTOR ASSEMBLY
INNOVATIVE CLEANING EQUIPMENT…..ENGINEERED TO LAST
IMPERIAL ELECTRIC MOTOR ONLY
1
2
3
4
5
6
7
8
9
16
14
12
17
10
18
15
11
13
Reference# PartNumber Description Required
1 301449 Bolt,Thru 4
2 135406 Screw,AccessCover 2
3 135412 Cover,WireConnectionAccessCover 1
4 135488 TopEndBell 1
5 135496 Switch,Stationary 1
6 135406 Screw,StationarySwitch 2
7 135473 Washer,Tension 1
8 135114 BallBearing 1
9 135481 Switch,Centrifugal 1
10 135227 RotorAssemblywithShaft 1
11 505203 Terminal,InsulatedFemaleRightAngle 7
12 135562 Cover,Capacitor 2
13 135600 Screw,CapacitorCover 4
14 135636 MotorLead 1
15 135493 Capacitor,Run 1
16 135625 StrainRelief,Motor 1
17 135492 Capacitor,Start 1
18 135605 FrameandFieldAssembly,Chrome 1
 205006 Motor,AC1HPwithGearBox Box
11
