General KCD series User Manual

Page 5
KCD-17, 19, 21 & 23” Series

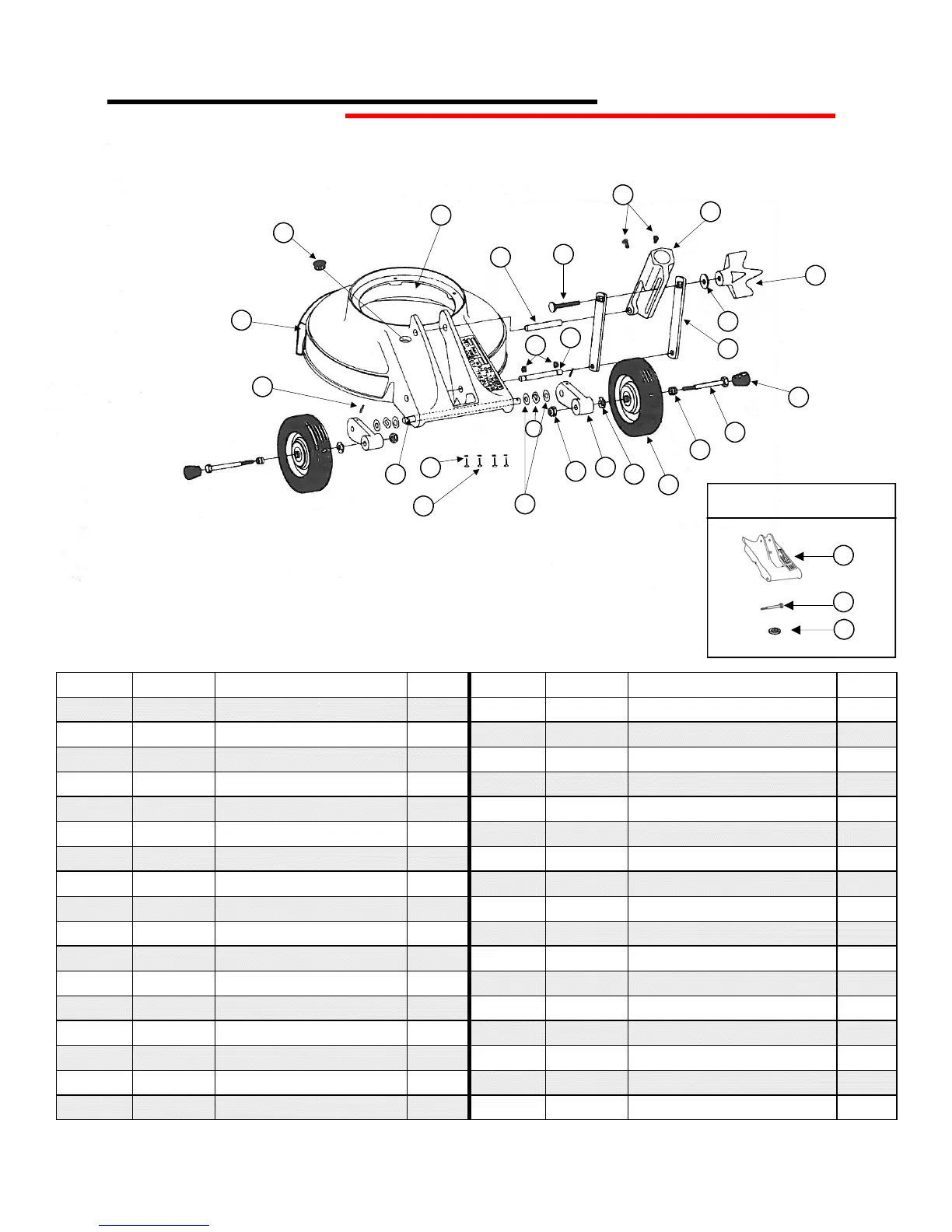

17”, 19”, 21” LOWER MACHINE ASSEMBLY
Reference# PartNumber Description Required Reference# PartNumber Description Required
1 505127 Knob,HandleAdaptorLarge 1 17 161504 Bumper,17"White 1
2 505131 Washer,HandleAdaptor 1 17 181504 Bumper,19"White 1
3 160532 HandleAdaptorLink 2 17 201504 Bumper,21"White 1
4 125049 Tip,RubberWheelAxle 2
18 145050 Plug,BlackApron5/16" 1
5 125700 Axle,Wheel 2 18 145004 Plug,ChromeApron7/8" 1
6 125047 Spacer,WheelAxle 2 19 170500 Apron,17"PolishedOnePiece 1
7 165516 Wheel,Non‐MarkingRed 2 19 190509 Apron,19"PolishedOnePiece 1
8 130509 Washer,TensionWheelAxle 2
19 210506 Apron,21"PolishedOnePiece 1
9 165517 PivotArm 2 20 160514 PivotPin,HandleAdaptor 1
10 125048 Nut,Wheel 2
21 160513 SnapRing 2
11 135521 Washer,NylonPivotShaft 4 22 160512 PivotPin,HandleAdaptorLink 1
12 135520 Washer,TensionPivotShaft 2
23 160533 Screw,HandleKnobLarge 1
13 201430 Washer,MotorMounting 4 24 101510 Screw,SetHandleAdaptor 2
14 201420 Bolt,MotorMounting17" 4
25 160530 HandleAdaptor,KCSeries 1
14 201550 Bolt,MotorMounting19"&21" 4 A 180510 Carriage,Polished 1
15 165518 PivotShaft,Wheel 1
B 201462 Bolt,Carriage 4
16 135517 Pin,PivotShaft 2 C 201415 Washer,CarriageAssembly 4
Pre-2012 Old Parts
A
B
C
1
2
3
4
5
6
7
8
9
10
12
11
13
16
17
18
14
15
19
20
21
22
23
24
25
